On-Board Diagnostic System (OBD System)

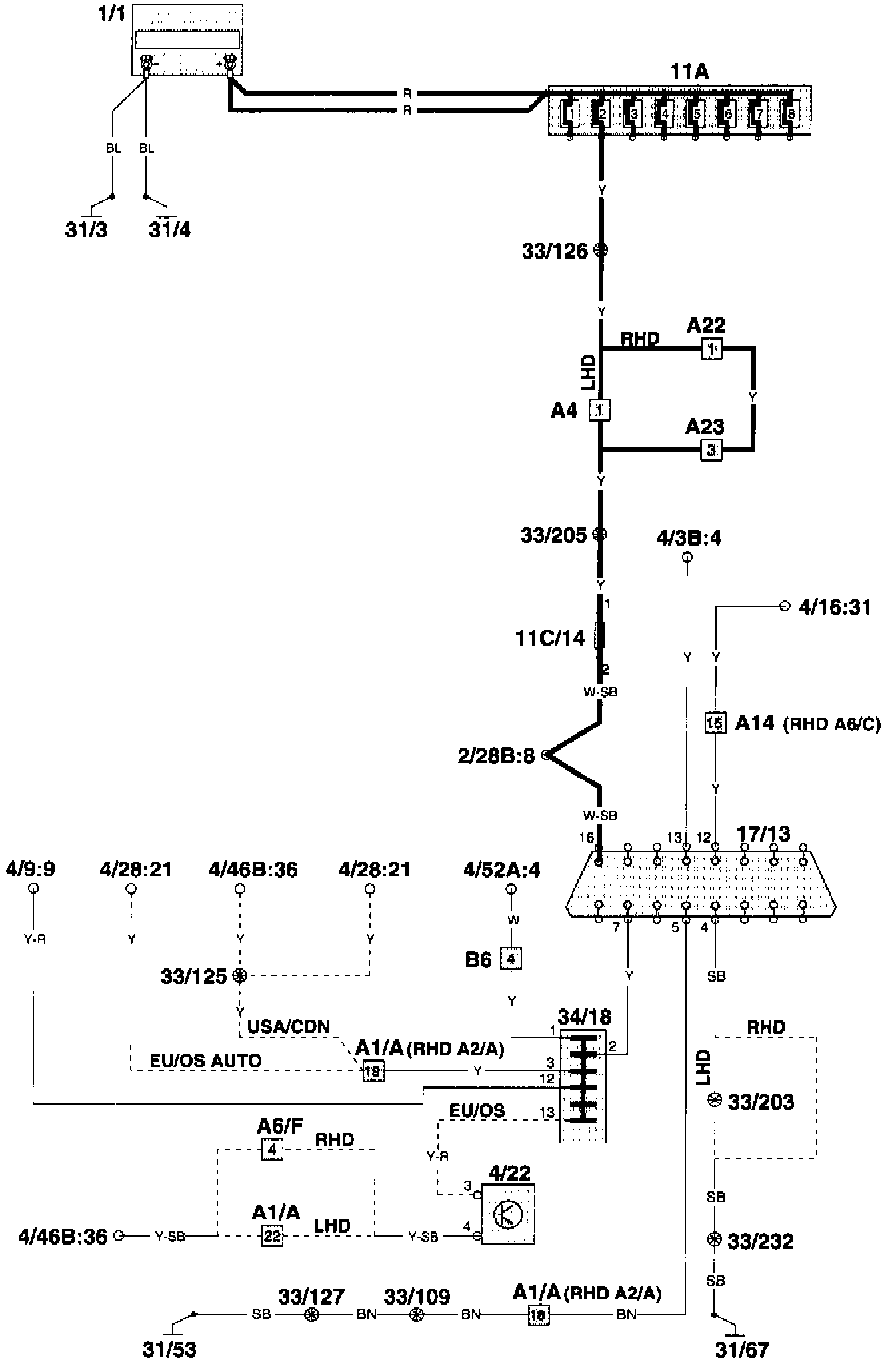

Wiring Diagram







Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A14 Connector 15-pin ABS harness - passenger compartment harness
A22 2-pin connector engine compartment harness - Anti-lock braking system ABS harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
B6 Connector 4-pin at seat
4/3 Control module, cruise control
4/9 SRS Supplemental Restraint System Crash Sensor
4/16 ABS control module
4/22 Control module Electronic park/neutral position PNP switch (Immobilizer)
4/28 Control module AW 30-40/43
4/46 Engine control module (ECM)
4/52 Control module power driver's seat with memory
11C/1-24 Fuses in fusebox in passenger compartment
17/13 Data link connector DLC
31/53 Ground point left side member in engine compartment
31/67 Ground point right seat support
34/18 Terminal block 22-pin: in relay box passenger compartment
