Electrical Diagrams

Part 1 Of 2:

Part 2 Of 2:

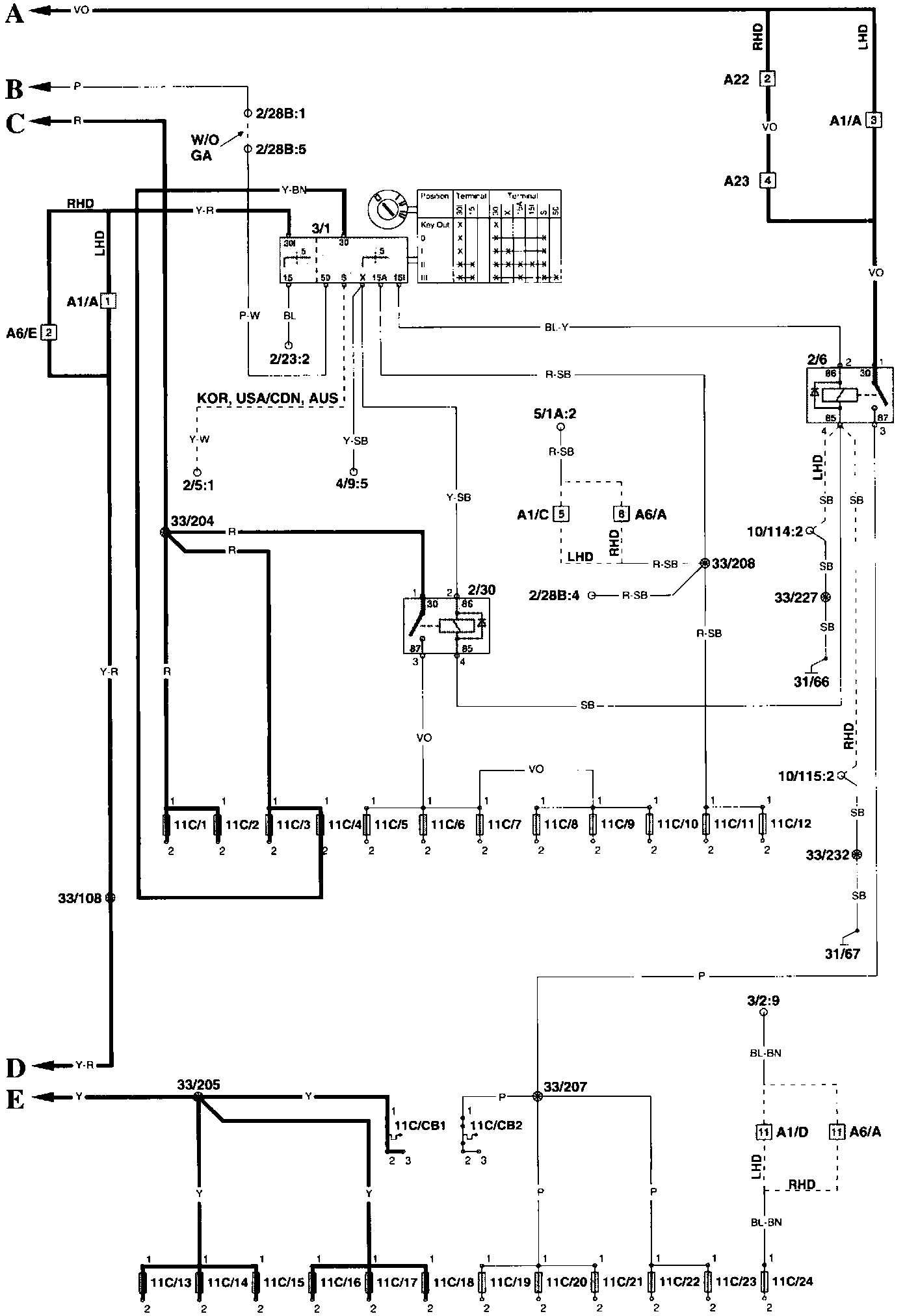

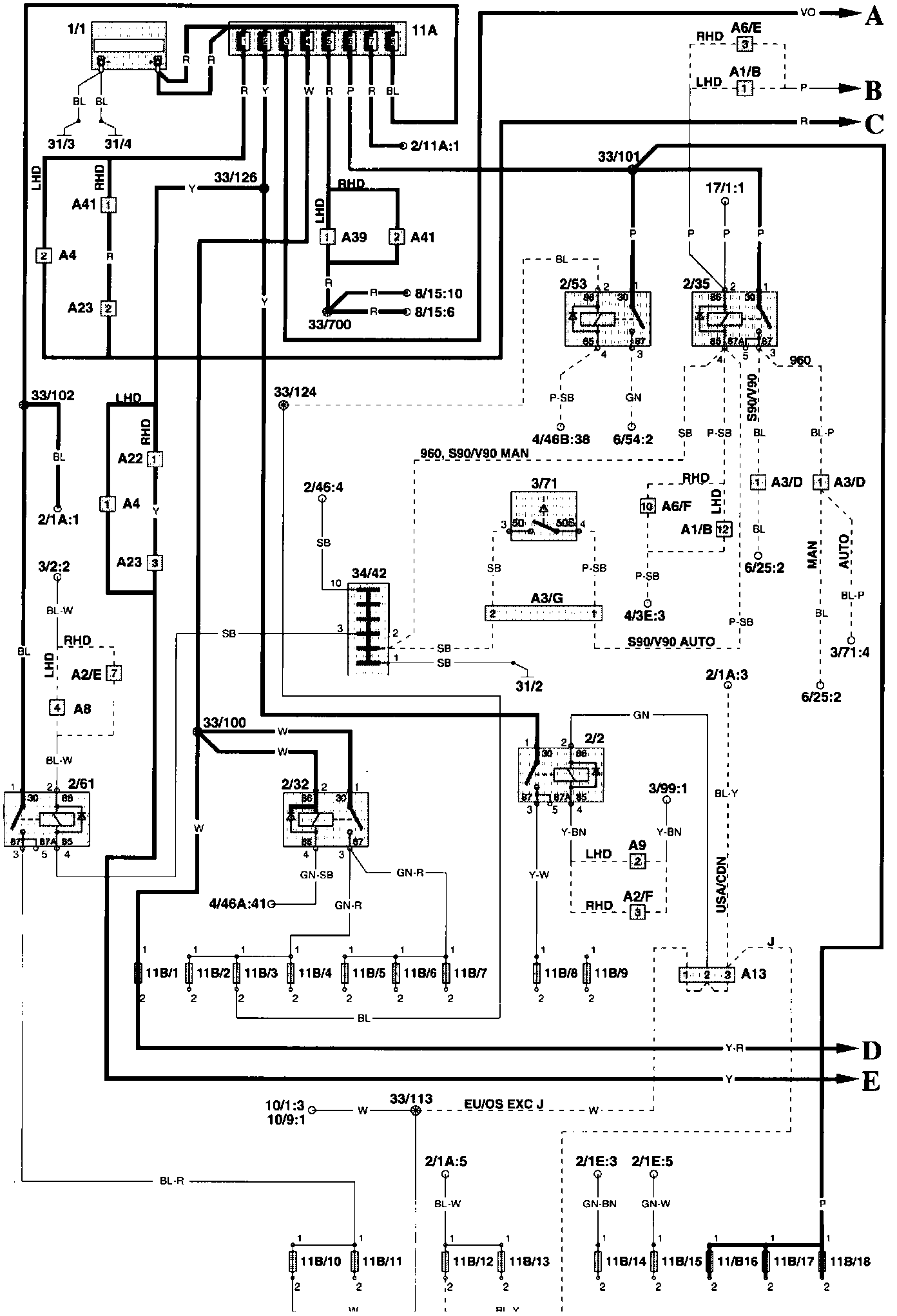

Wiring Diagram

Part 1 Of 2:

Part 2 Of 2:

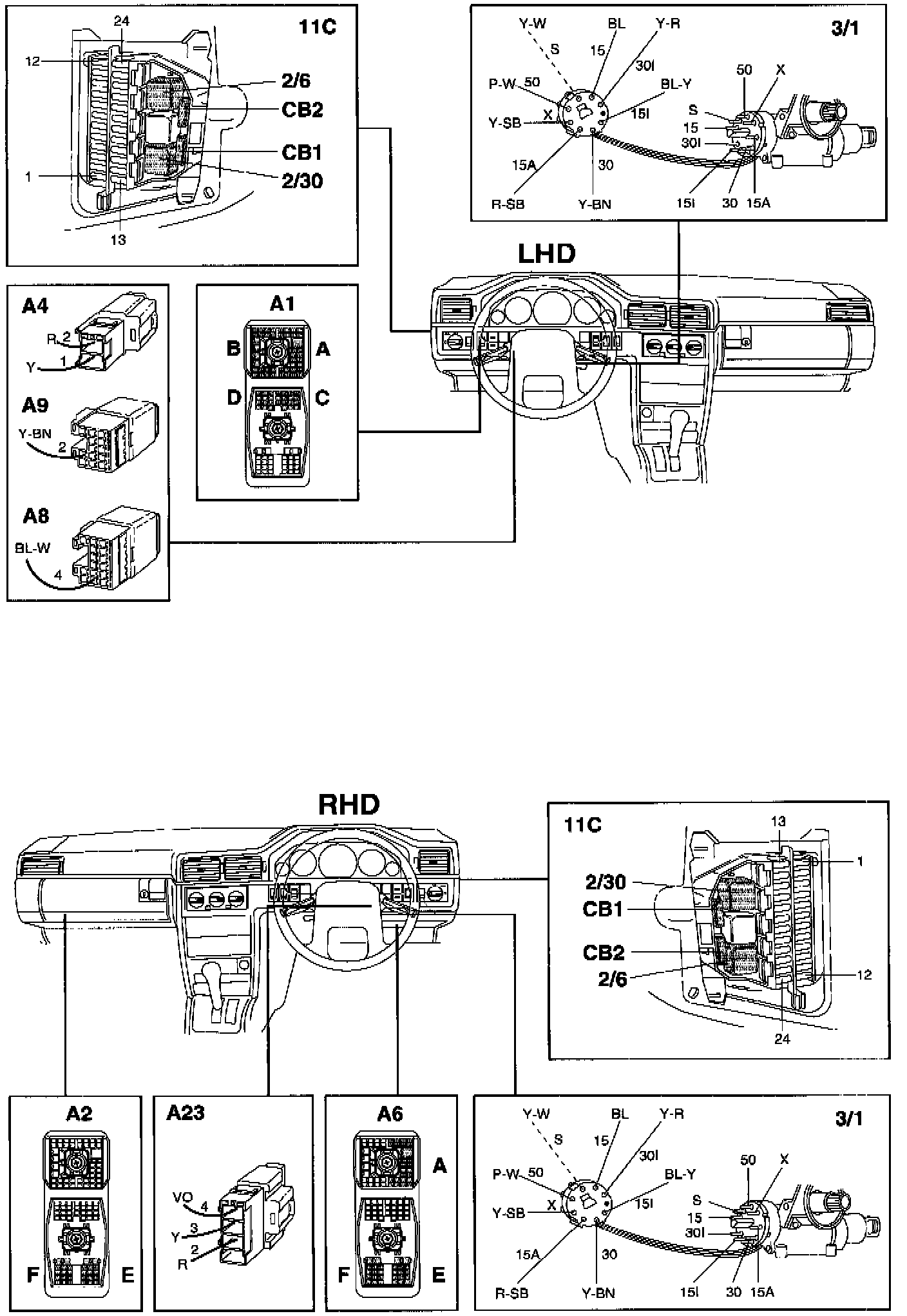

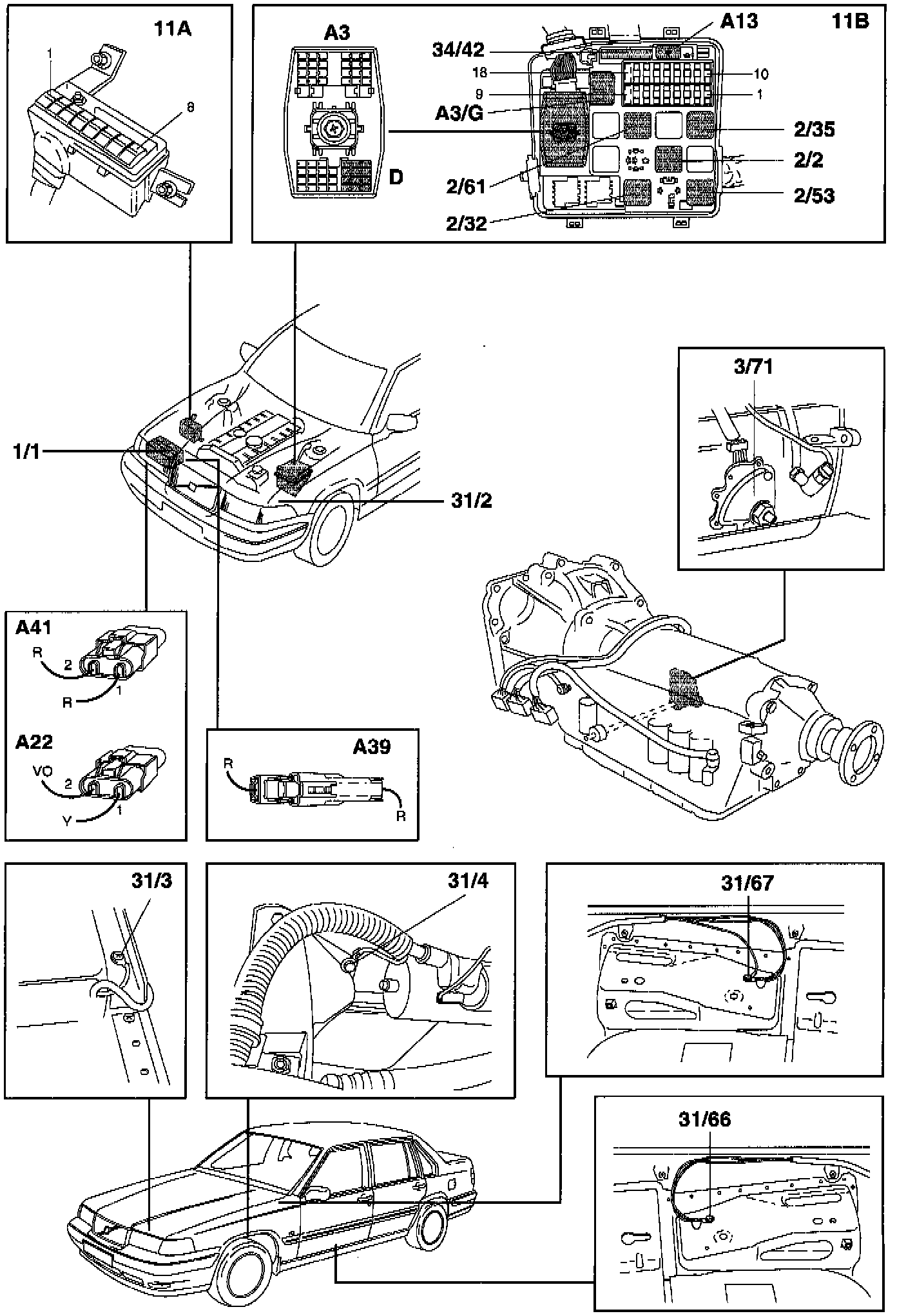

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A3 Multi-connector in relay/fusebox in engine compartment
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A9 13-pin connector engine compartment harness - dashboard cable harness
A13 Connector 3-pin bridge to foglamps
A22 2-pin connector engine compartment harness - Anti-lock braking system ABS harness
A39 Connector 1-pin ABS harness - engine compartment harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
1/1 Battery
2/2 Front fog lamps relay
2/6 Overload relay +15I
2/30 Overload relay, +X
2/32 Fuel system main relay
2/35 Starter motor relay
2/53 Relay, pulsed secondary air injection system (PAIR) pump
2/61 Relay marker/parking lights
3/1 Ignition switch
3/71 Gear position sensor
11A/1-8 Main fuses at the battery
11B/1-18 Fuses in relay/fusebox in engine compartment
11C/CB1 Automatic fuse in fusebox in the car
11C/CB2 Automatic fuse in fusebox in the car
31/2 Ground terminal left front wing
31/3 Ground point body
31/4 Ground point engine
31/66 Ground point left seat support
31/67 Ground point right seat support
34/42 Terminal block 22-pin: In relay/fusebox engine compartment
