Windshield Wash/Wipe Windshield

Wiring Diagram

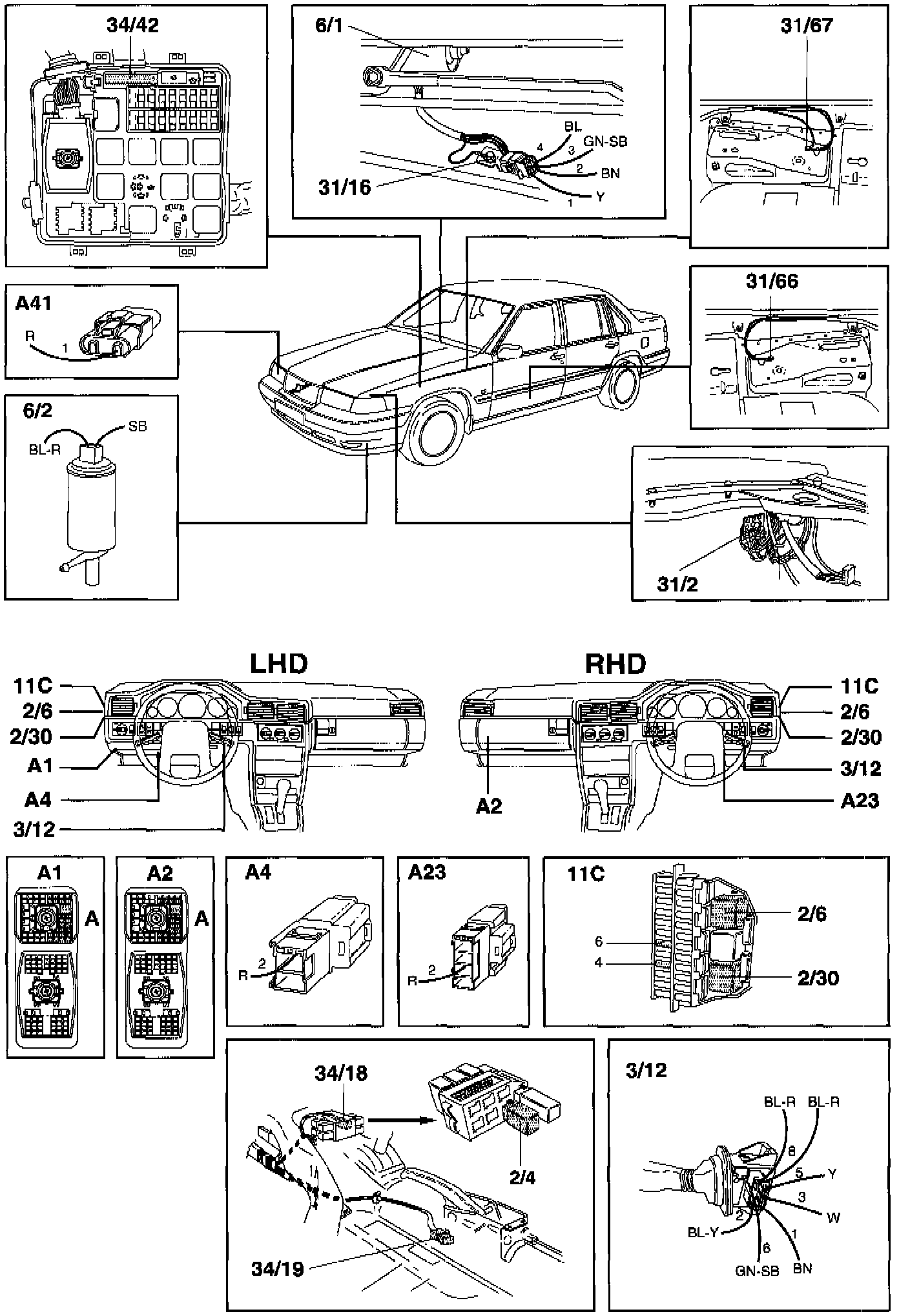

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
2/4 Relay, windshield intermittent wiper
2/6 Overload relay +15I
2/30 Overload relay, +X
3/12 Windshield wash/wipe switch
6/1 Windshield wiper motor
6/2 Washer motor front
11C/1-24 Fuses in fusebox in passenger compartment
31/2 Ground terminal left front wing
31/16 Ground terminal by windshield wiper motor
31/66 Ground point left seat support
31/67 Ground point right seat support
34/18 Terminal block 22-pin: in relay box passenger compartment
34/19 Terminal block 22-pin: by parking brake bracket
34/42 Terminal block 22-pin: In relay/fusebox engine compartment
