Ground Terminals - C70 Convertible:

Ground I.D. List
31/4 Ground terminal engine (ground point battery - engine)
31/5 Heated rear windshield ground terminal
31/7 Ground terminal, A-pillar driver side
31/11 Ground terminal, cargo compartment, left side
31/12 Ground terminal, cargo compartment, right side
31/15 Ground terminal, A-post passenger side
31/44 Ground terminal engine compartment (ground terminal battery - body)
31/47 Ground terminal, left cross member
31/48 Ground terminal, right cross member
31/50 Ground connection rail (power ground)
31/51 Ground connection rail (signal ground)
31/52 Ground terminal left spring strut tunnel
31/55 Ground terminal, engine cooling fan
31/71 Ground terminal right front side member
31/88 Ground terminal engine ignition coil group 1
31/89 Ground terminal engine ignition coil group 2
31/91 Engine ground terminal ETM


Ground Point Application Charts

Ground Terminals - 31/4:

Ground Terminals - 31/5:

Ground Terminals - 31/7 CONV:

Ground Terminals - 31/11 C70:

Ground Terminals - 31/12 C70:

Ground Terminals - 31/15 CONV:

Ground Terminals - 31/44:

Ground Terminals - 31/47 CONV:

Ground Terminals - 31/48 CONV:

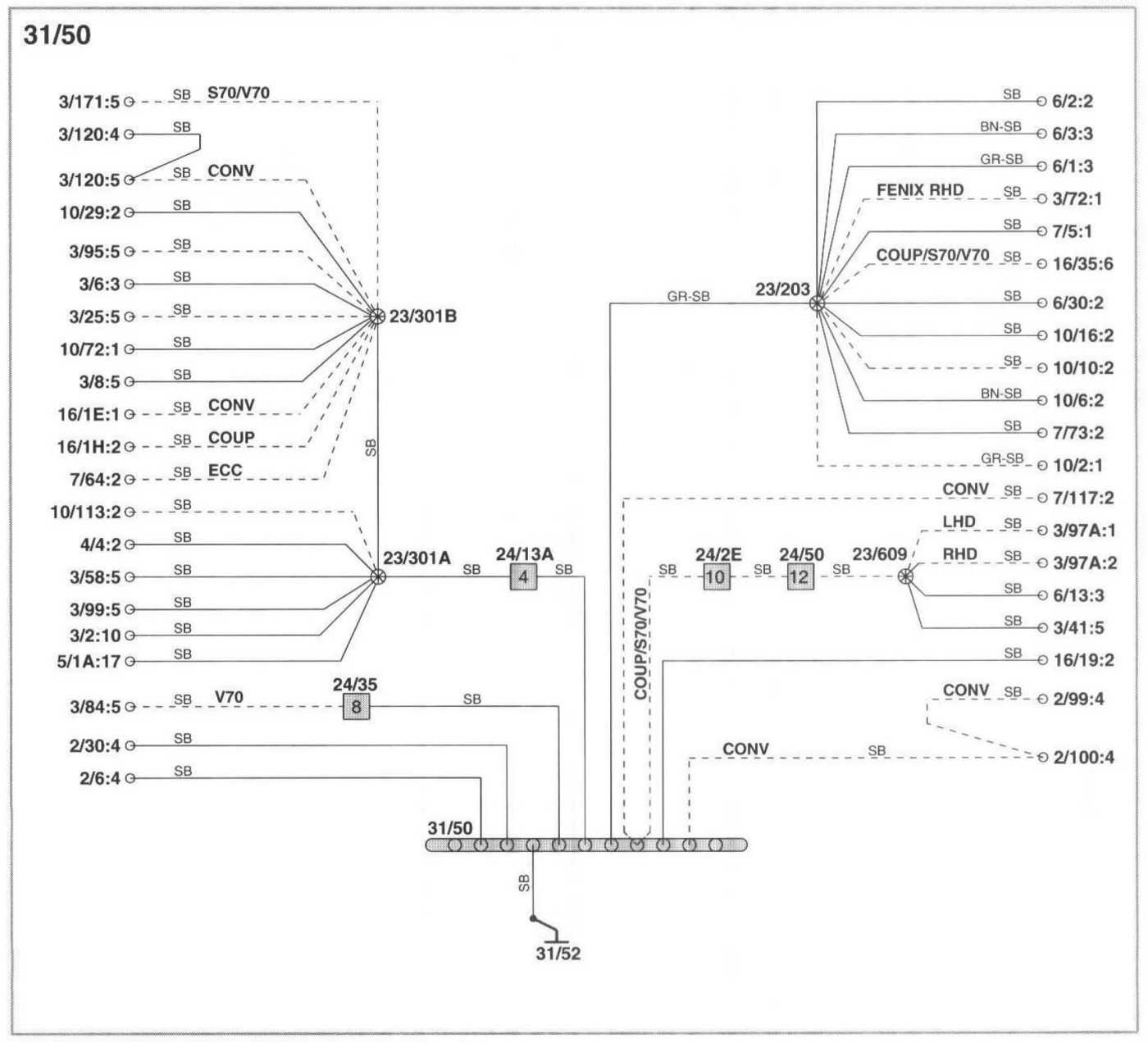

Ground Terminals - 31/50:

Ground Terminals - 31/51:

Ground Terminals - 31/52:

Ground Terminals - 31/55:

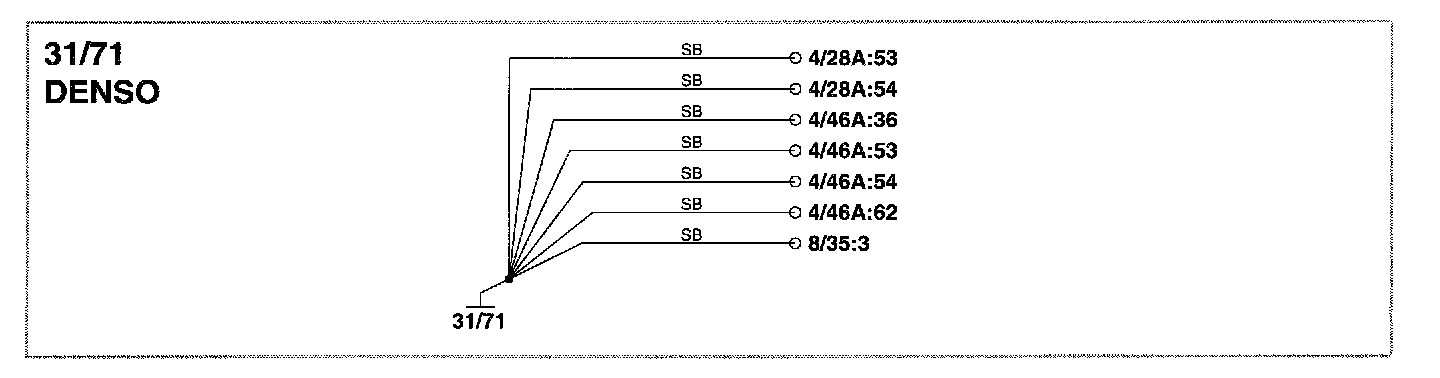

Ground Terminals - 31/71 Denso:

Ground Terminals - 31/71 ME7:

Ground Terminals - 31/88:

Ground Terminals - 31/89:

Ground Terminals - 31/91:

Ground Point Application Charts

Ground Terminals - 31/4:

Ground Terminals - 31/5:

Ground Terminals - 31/7 CONV:

Ground Terminals - 31/11 C70:

Ground Terminals - 31/12 C70:

Ground Terminals - 31/15 CONV:

Ground Terminals - 31/44:

Ground Terminals - 31/47 CONV:

Ground Terminals - 31/48 CONV:

Ground Terminals - 31/50:

Ground Terminals - 31/51:

Ground Terminals - 31/52:

Ground Terminals - 31/55:

Ground Terminals - 31/71 Denso:

Ground Terminals - 31/71 ME7:

Ground Terminals - 31/88:

Ground Terminals - 31/89:

Ground Terminals - 31/91:
