Cellular Phone

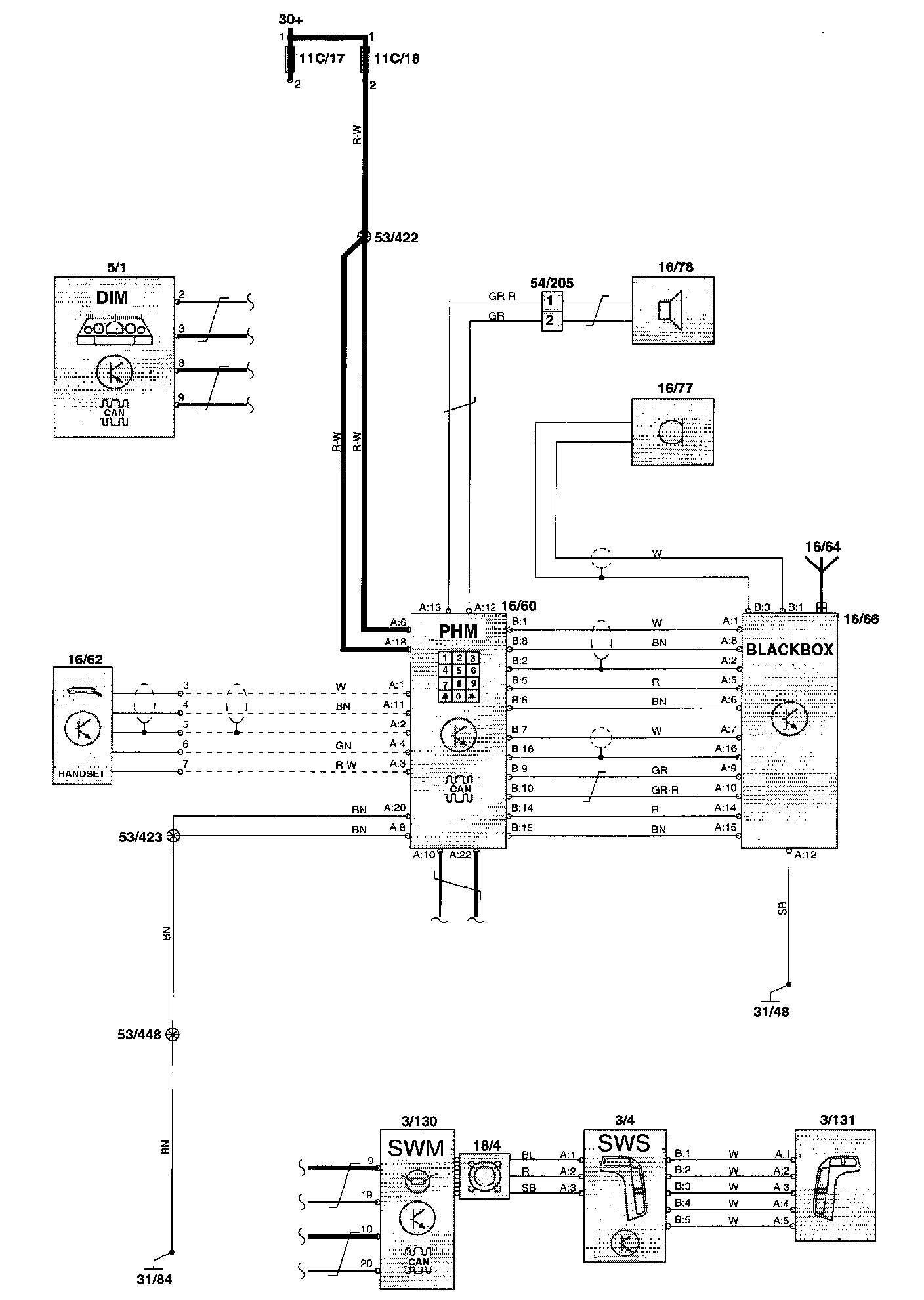

Wiring Diagram

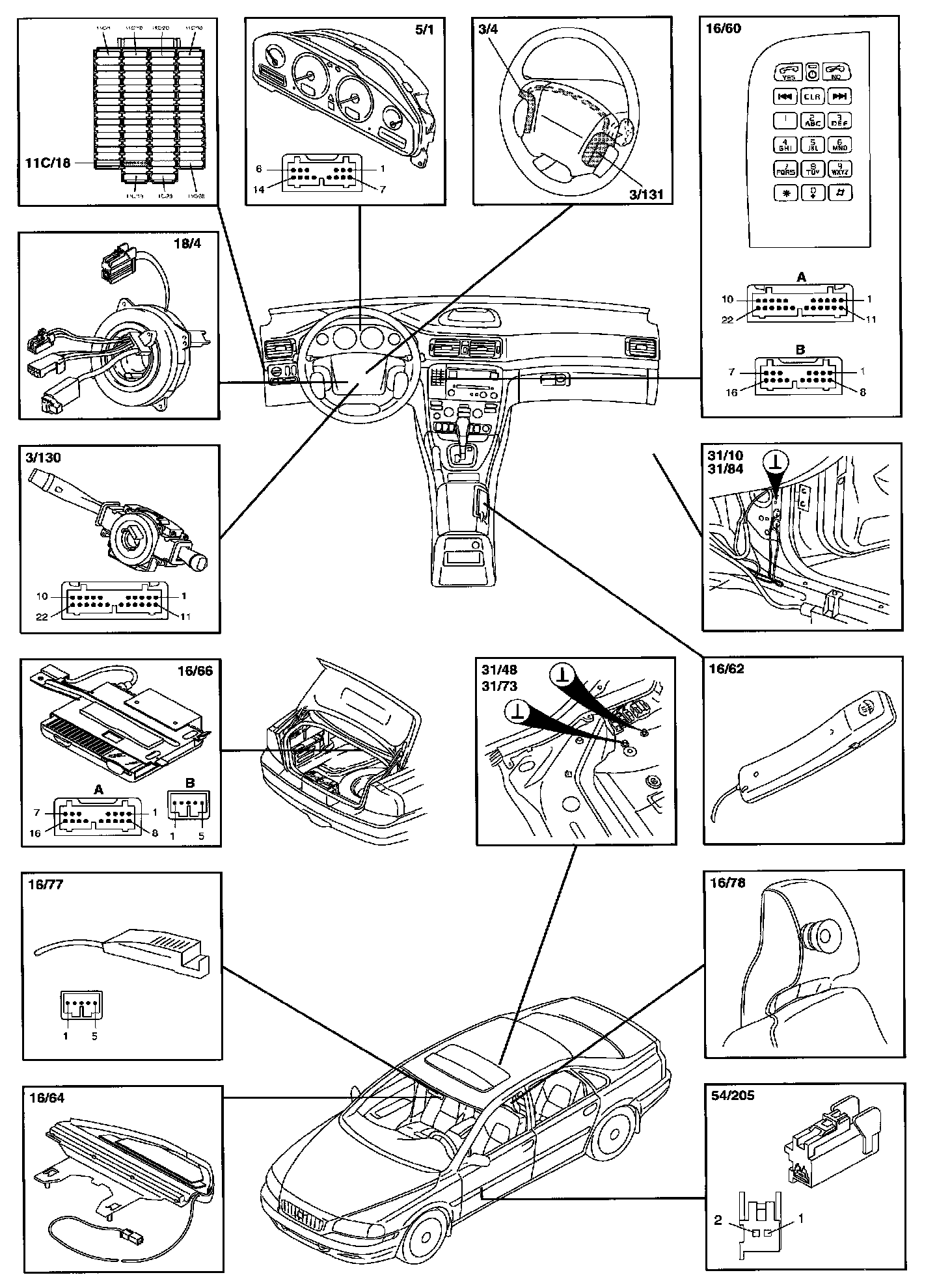

Component Location

Component I.D. List
3/4 Electrical Switch Module Cruise Control (SWS)
3/130 Electrical Switch Module Steering Wheel Levers (SWM)
3/131 Switch Audio/carphone
5/1 Combined Instrument Panel (DIM)
11C/1-38 Fuses In Fusebox Passenger Compartment
16/60 Control Unit And Keypad Carphone (PHM)
16/62 Handset Carphone
16/64 Carphone Antenna
16/66 Carphone Receiver
16/77 Microphone Carphone
16/78 Loudspeakers Carphone
18/4 Contact Reel
31/10 Ground Terminal Right-hand Side A Post
31/48 Ground Terminal Rear Seat Support Right Side 1
31/73 Ground Terminal Rear Seat Support Right Side 2
31/84 Ground Terminal Right-hand Side A Post
54/205 Connector, 2-pin Passenger Compartment Harness - Carphone Loudspeaker
