Heated Glass Element

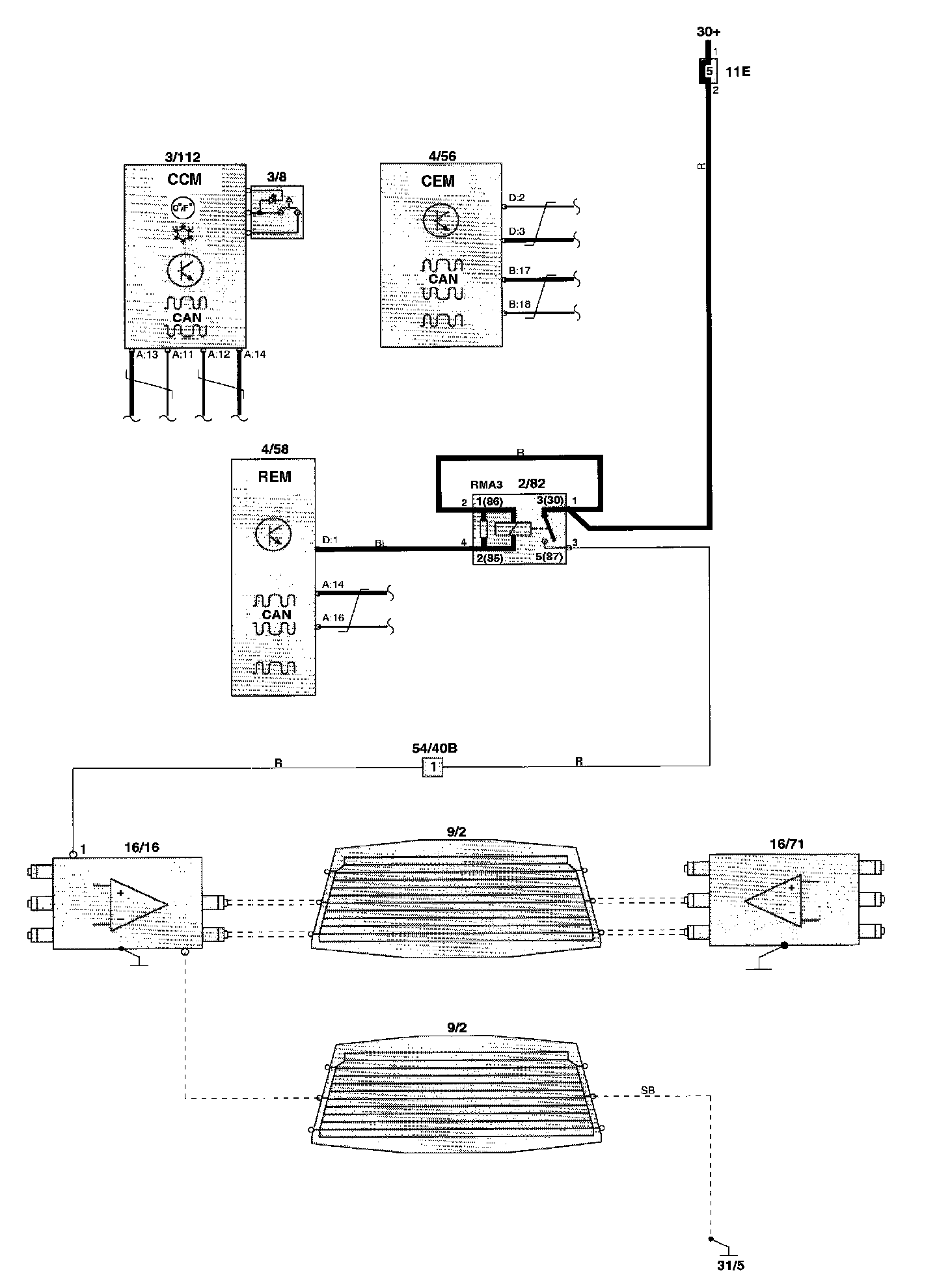

Wiring Diagram

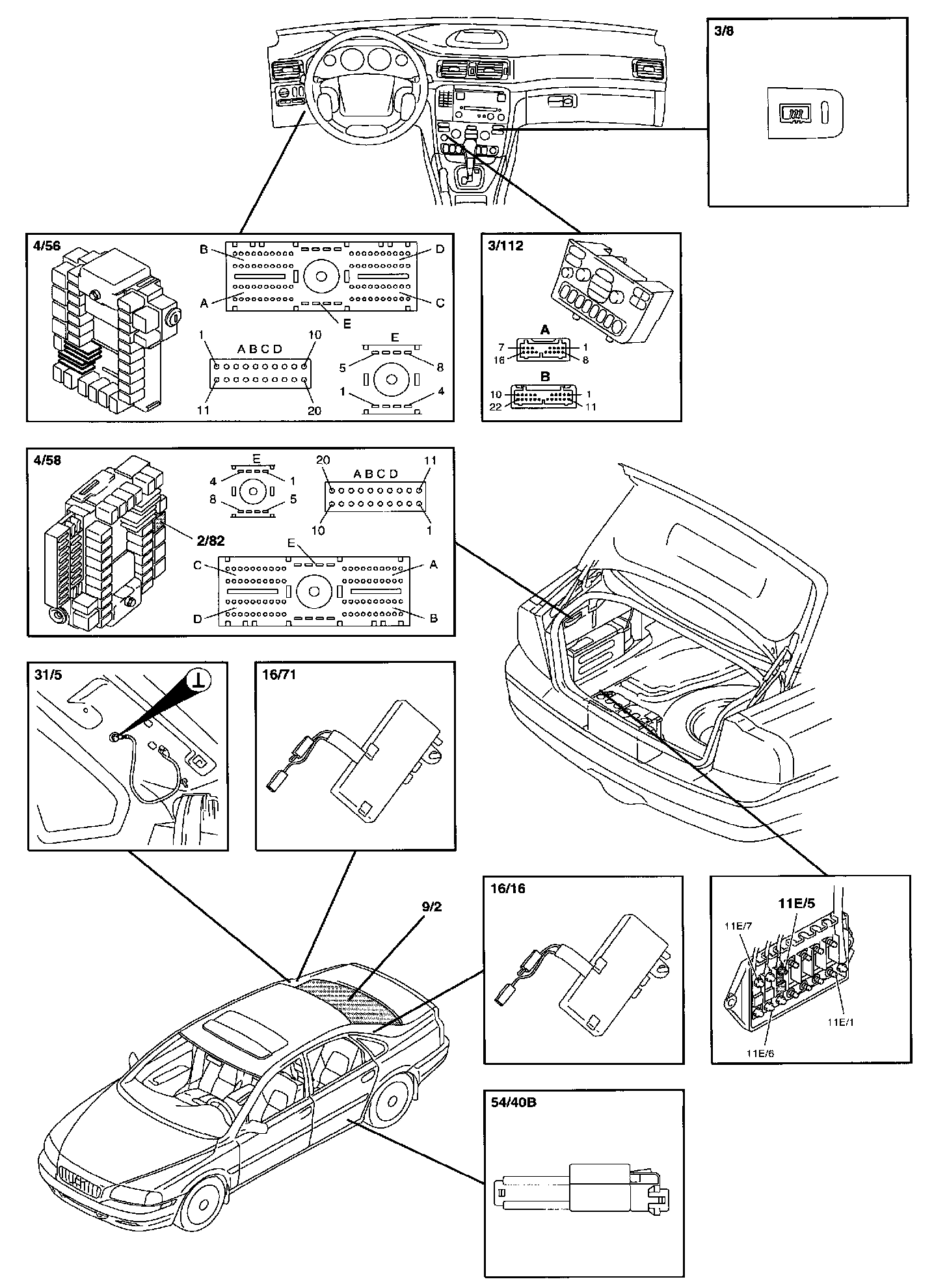

Component Location

Component I.D. List
2/82 Relay rear windshield heater
3/8 Switch Rear demist/door mirrors
3/112 Electrical switch module climate control (CCM)
4/56 Central electronic module (CEM)
4/58 Rear electronic module (REM)
9/2 Heated rear window
11E/1-7 Main fuses at the battery
16/16 Left antenna amplifier window antenna
16/71 Left antenna amplifier window antenna
31/5 Heated rear windshield ground
54/40B Connector, 1-pin Passenger compartment harness - cargo compartment cable harness
