Manual Climate Control (MCC)

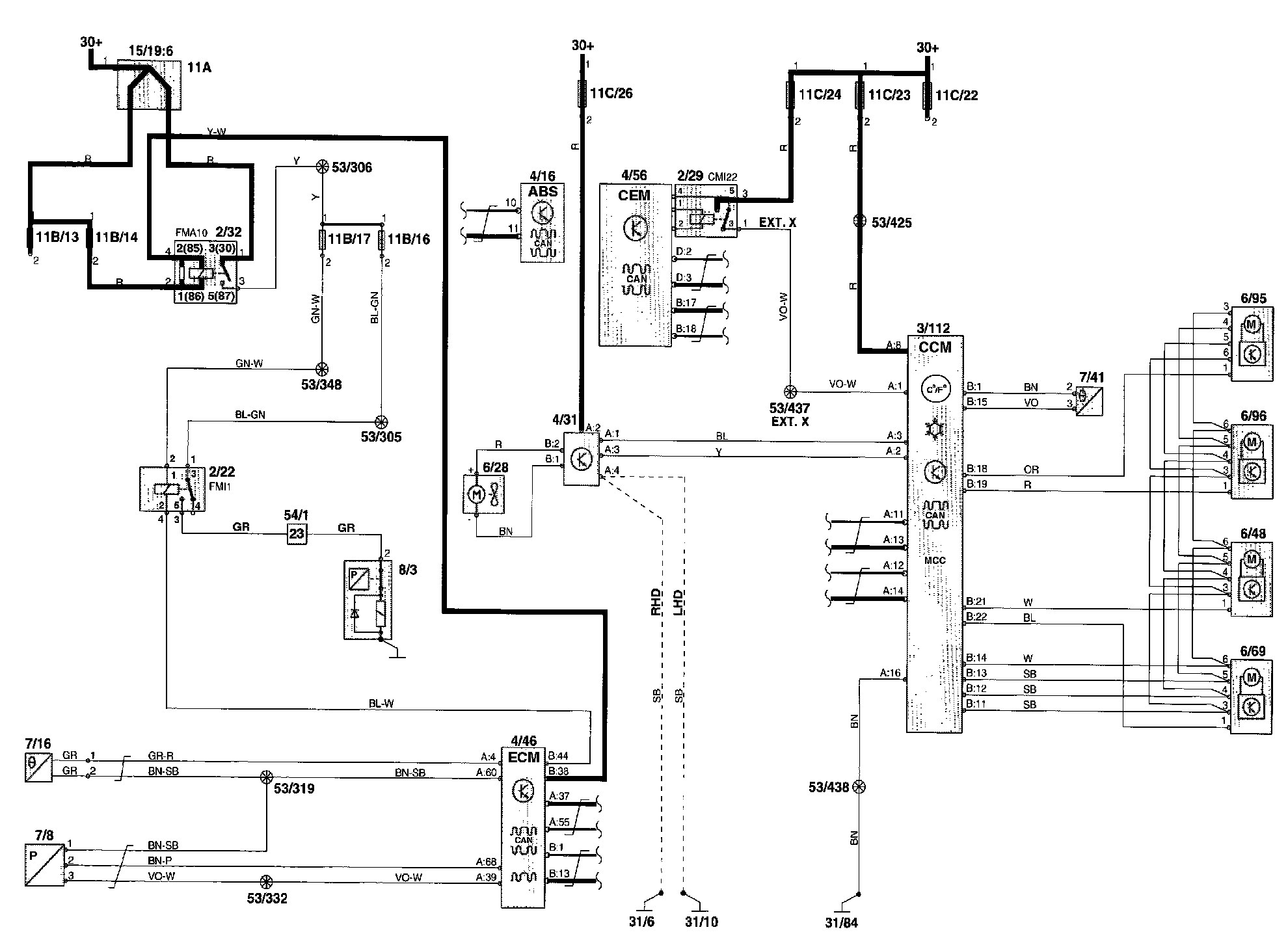

Wiring Diagram







Component Location

Component I.D. List
2/22 A/C Relay
2/29 Relay Increased X-supply
2/32 Main Relay Engine Management System
3/112 Electrical Switch Module Climate Control (CCM)
4/16 ABS Control Module
4/31 Control Module Blower Fan
4/46 Engine Control Module (ECM)
4/56 Central Electronic Module (CEM)
6/28 Blower Fan
6/48 Servo Motor Recirculation Shutter
6/69 Servo Motor. Floor Defroster And Ventilation Shutters
6/95 Servo Motor Temperature Damper Left-hand Side
6/96 Servo Motor Temperature Damper Right-hand Side
7/8 A/C Pressure Sensor
7/16 Engine Coolant Temperature (ECT) Sensor
7/41 Temperature Sensor Evaporator
8/3 Solenoid Switch A/C
11B/1-21 Fuses In The Relay/fusebox Engine Compartment
11C/1-38 Fuses In Fusebox Passenger Compartment
15/19 30+ Rail In The Integrated Relay/fusebox Engine Compartment
31/6 Ground Terminal Left-hand Side A Post
31/10 Ground Terminal Right-hand Side A Post
31/83 Ground Terminal Left-hand Side A Post
31/84 Ground Terminal Right-hand Side A Post
54/1 Connector, 28-pin Engine Compartment Harness - Dashboard Harness
