Home >> Volvo >> 1999 >> S80 T6 L6-2.8L Turbo VIN 90 B6284T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Immobilizer

Immobilizer

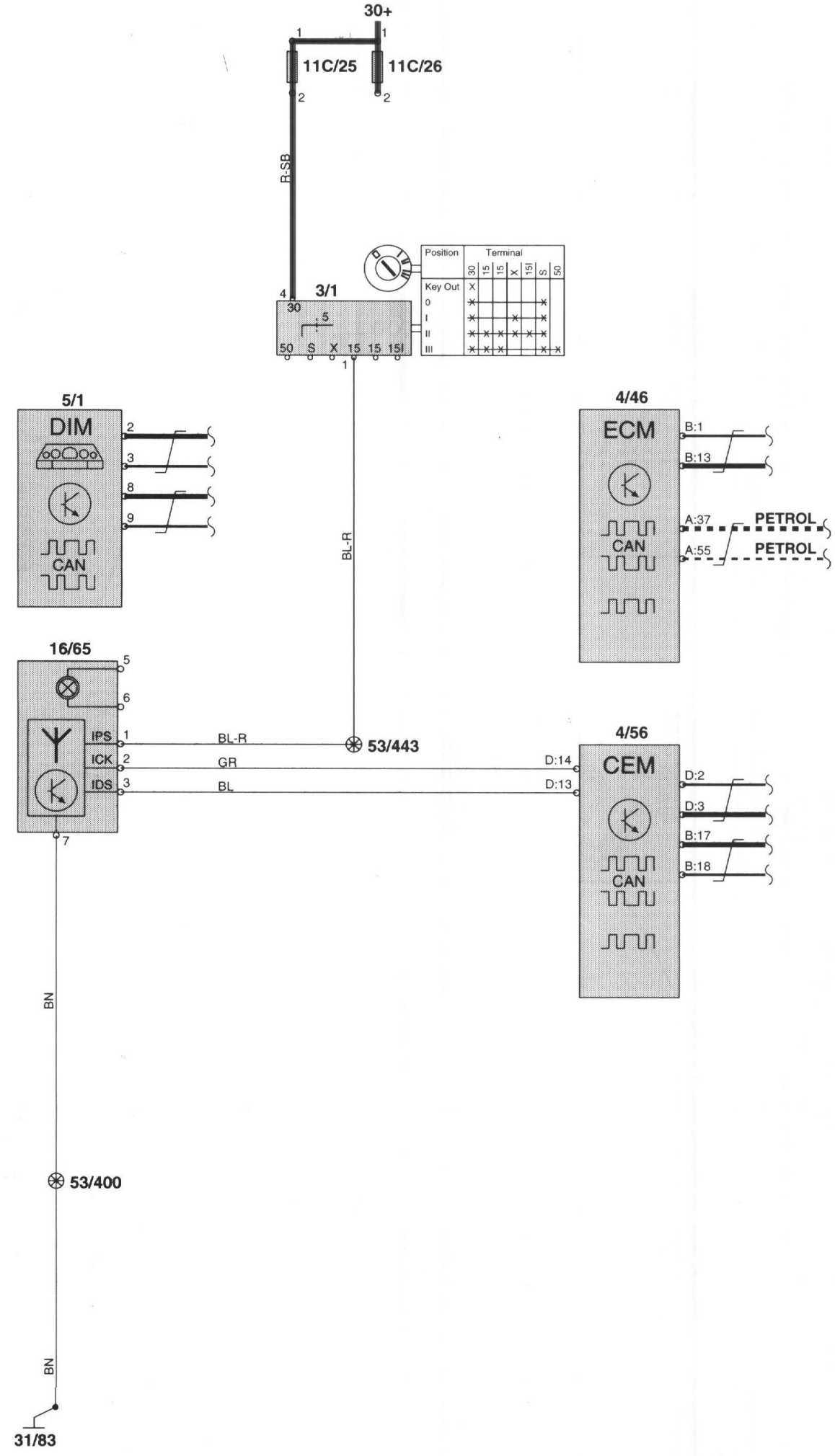

Immobilizer - Wiring Location:






Immobilizer - Component Location:
