Cigarette Lighter

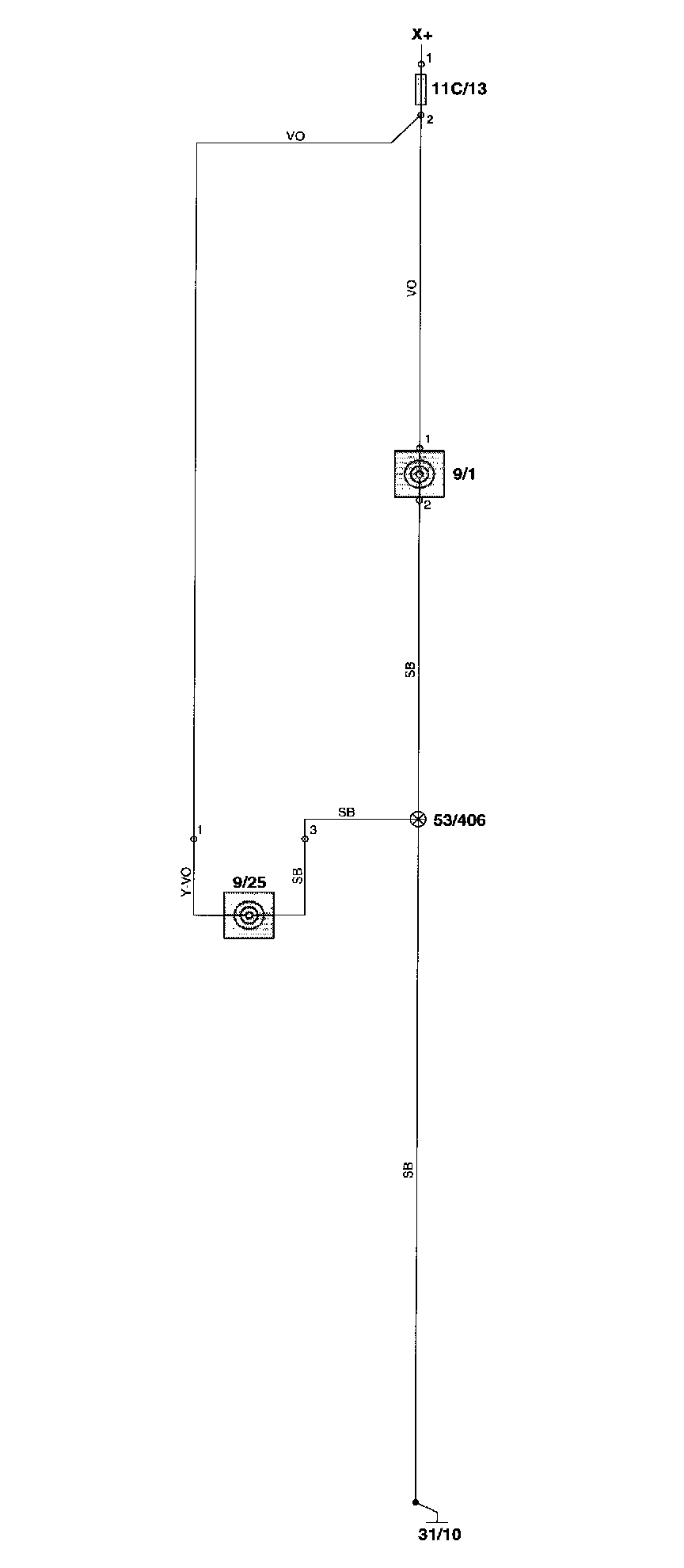

Wiring Diagram

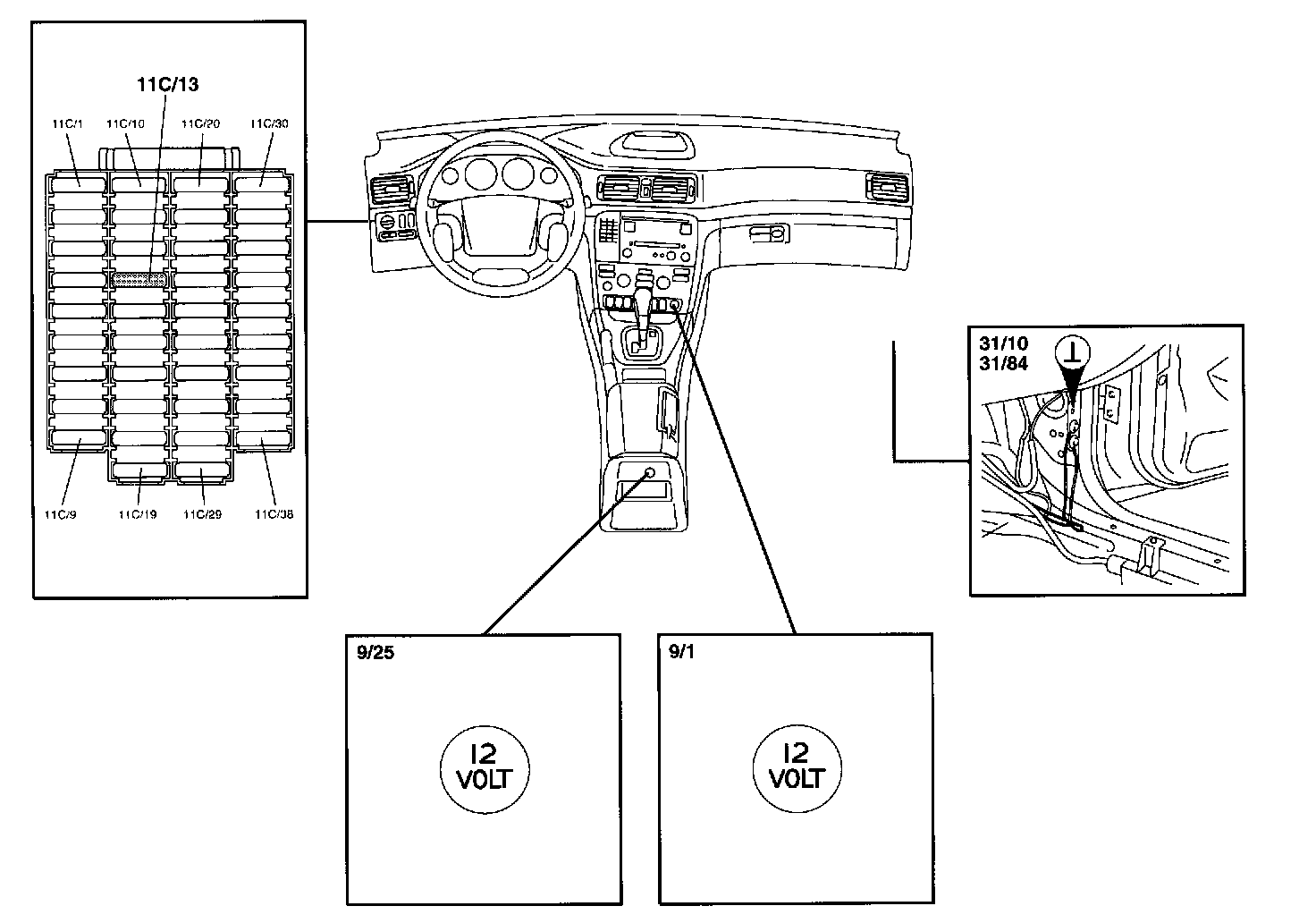

Component Location

Component I.D. List
9/1 Cigarette Lighten 12V Output Front
9/25 Cigarette Lighten 12V Output Rear
11C/1-38 Fuses In Fusebox Passenger Compartment
31/10 Ground Terminal Right-hand Side A Post
31/84 Ground Terminal Right-hand Side A Post
