Home >> Volvo >> 1999 >> S80 T6 L6-2.8L Turbo VIN 90 B6284T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram

System Diagram



Electrical Distribution

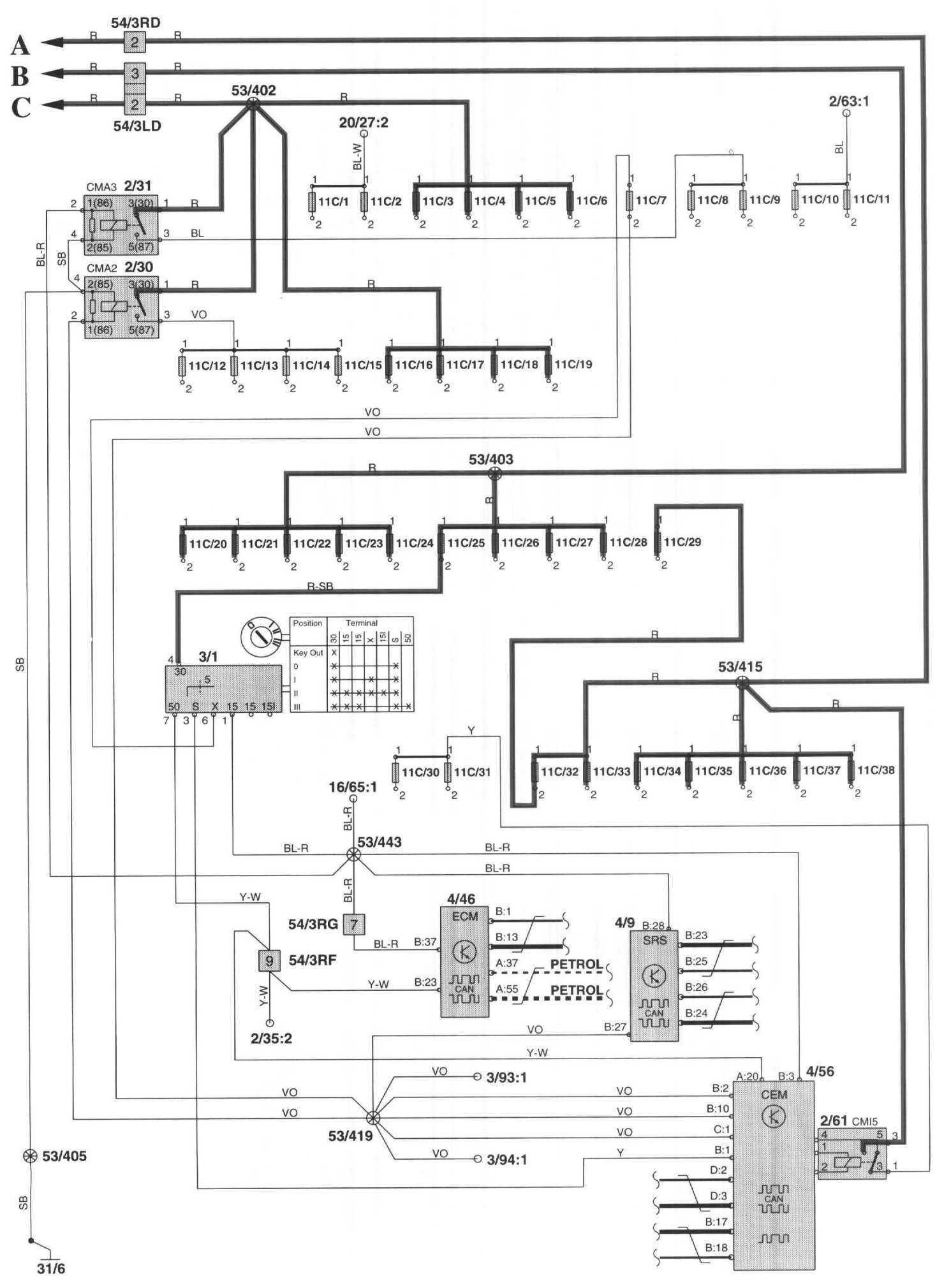

Wiring Diagram Fig. 1:

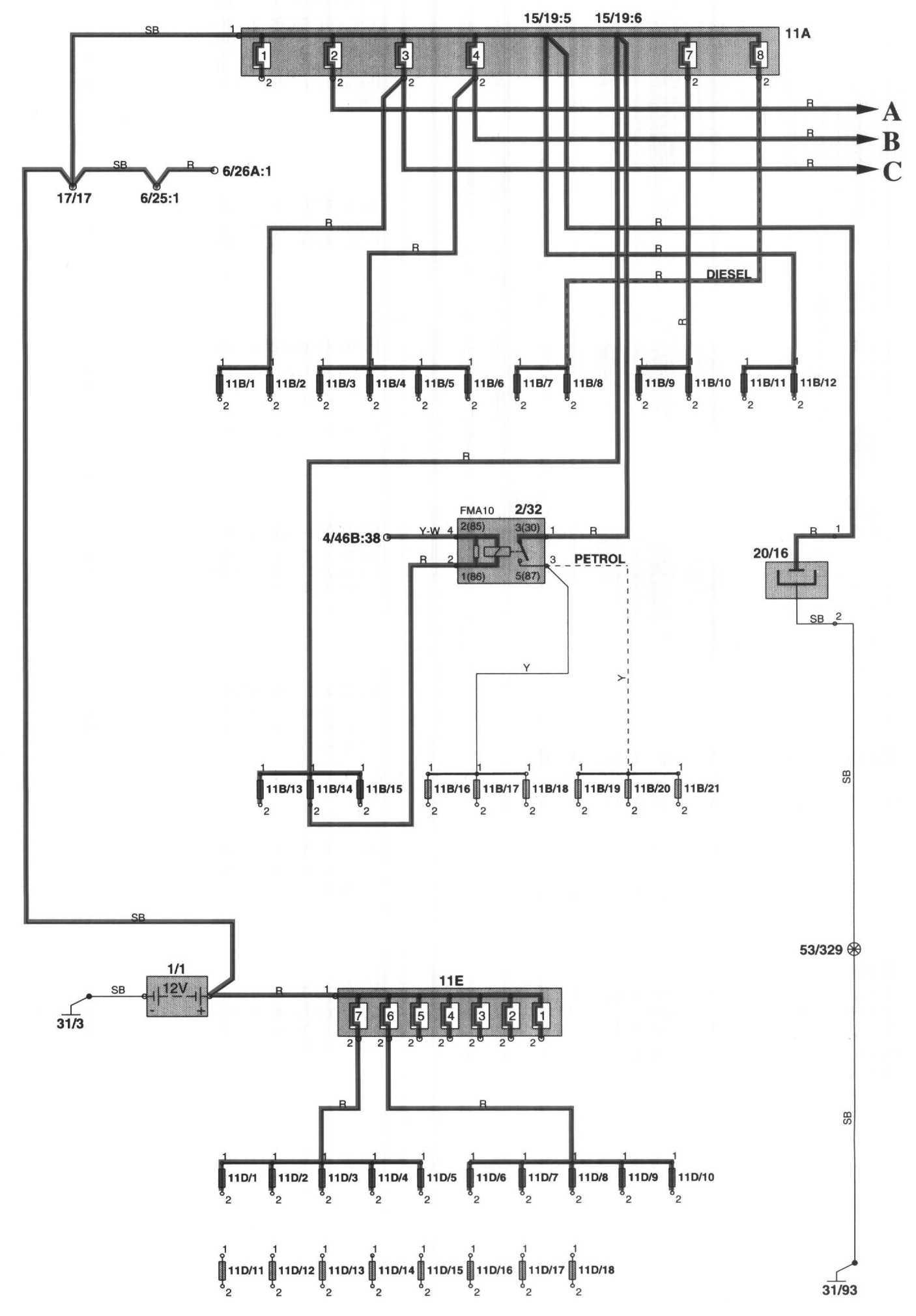

Wiring Diagram Fig. 2:

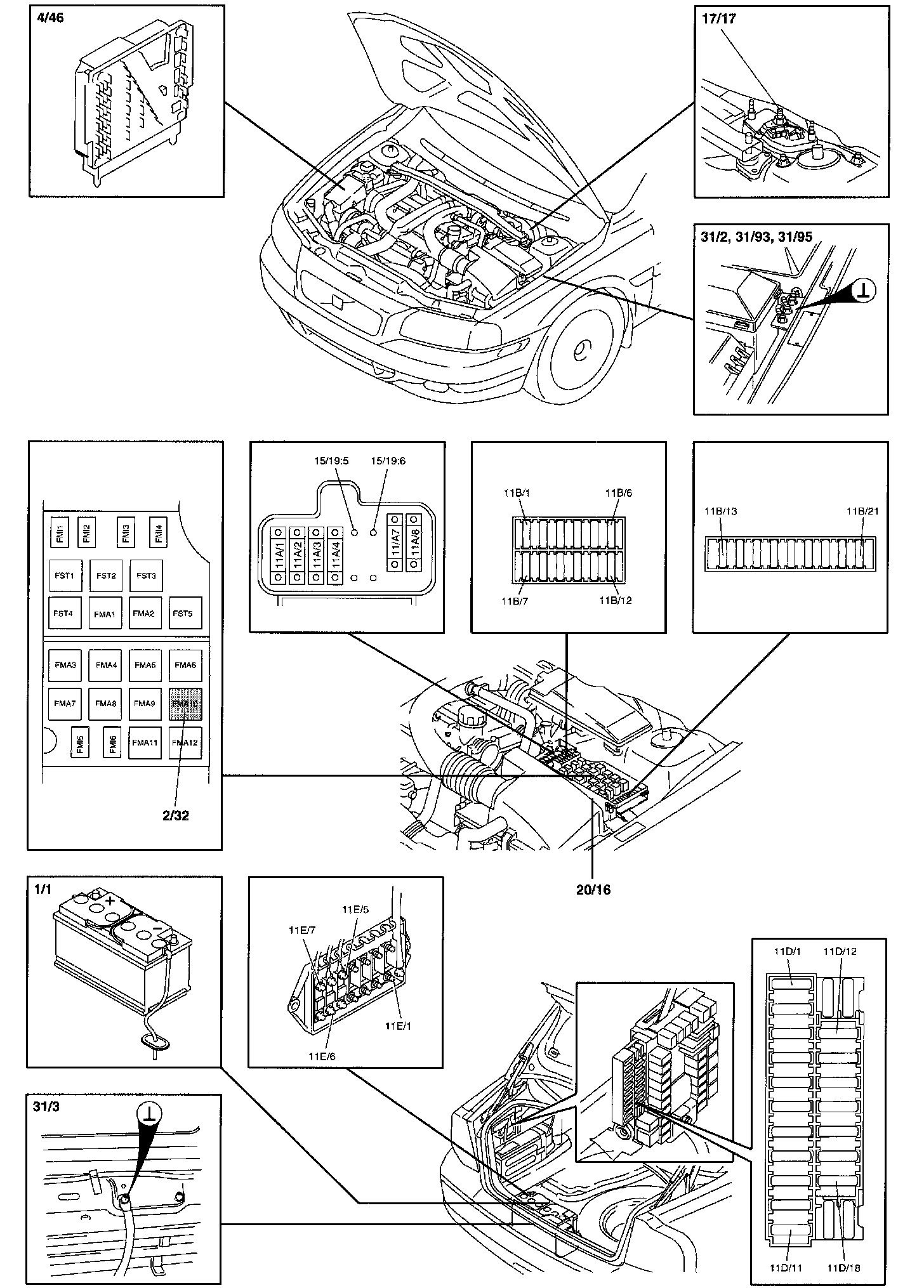

Component Location Fig. 1:

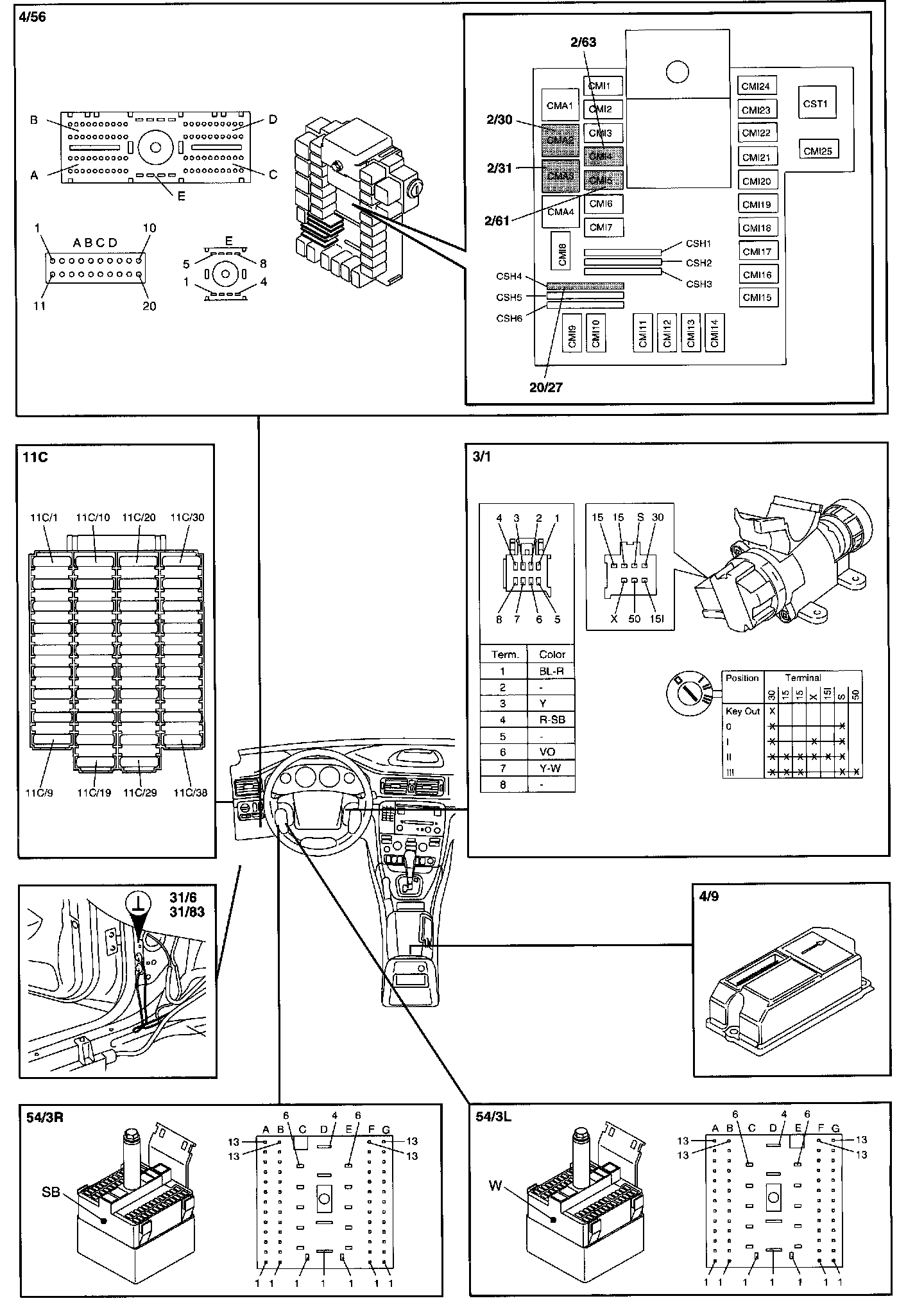

Component Location Fig. 2:
