Seat Temperature Element

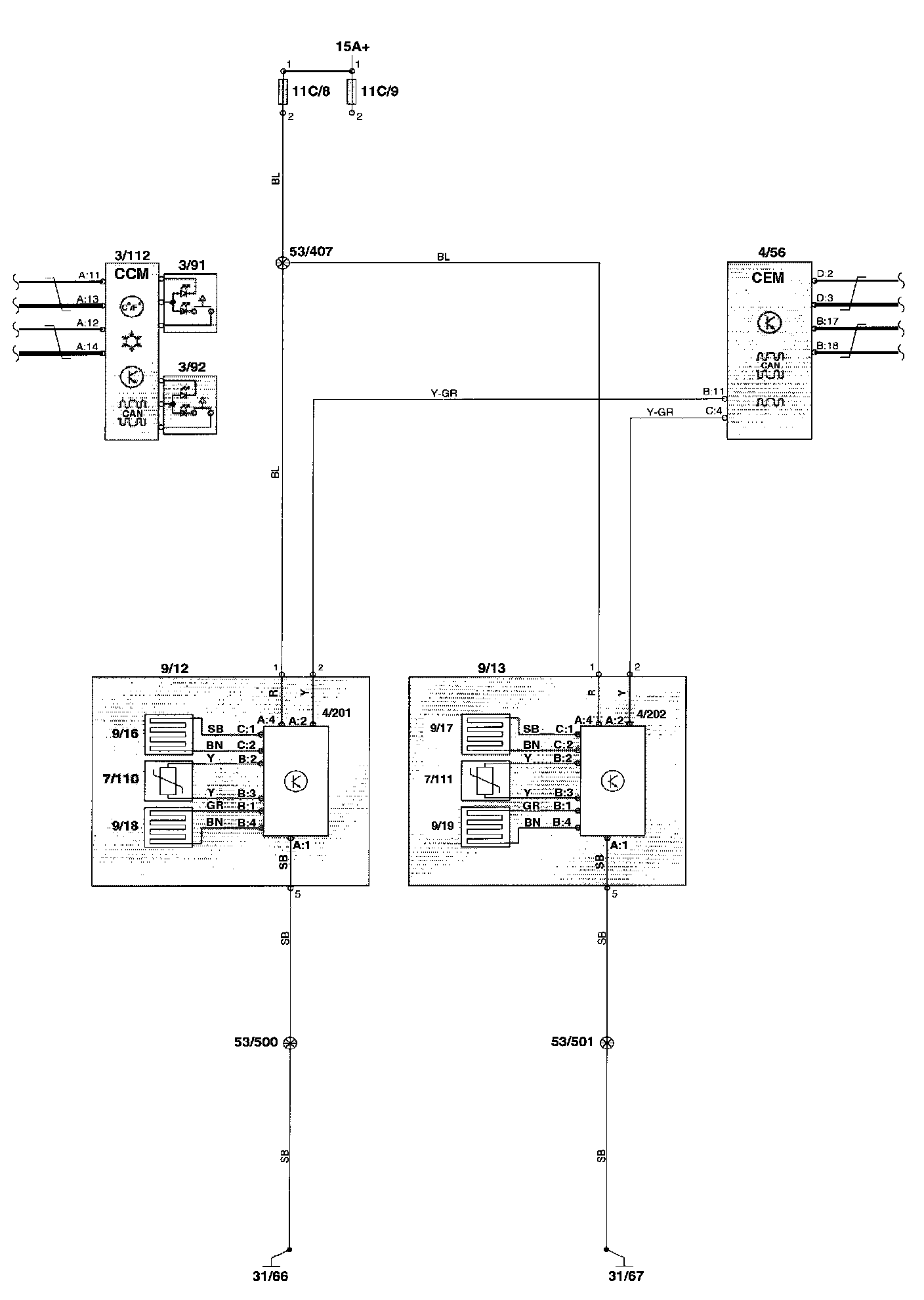

Wiring Diagram

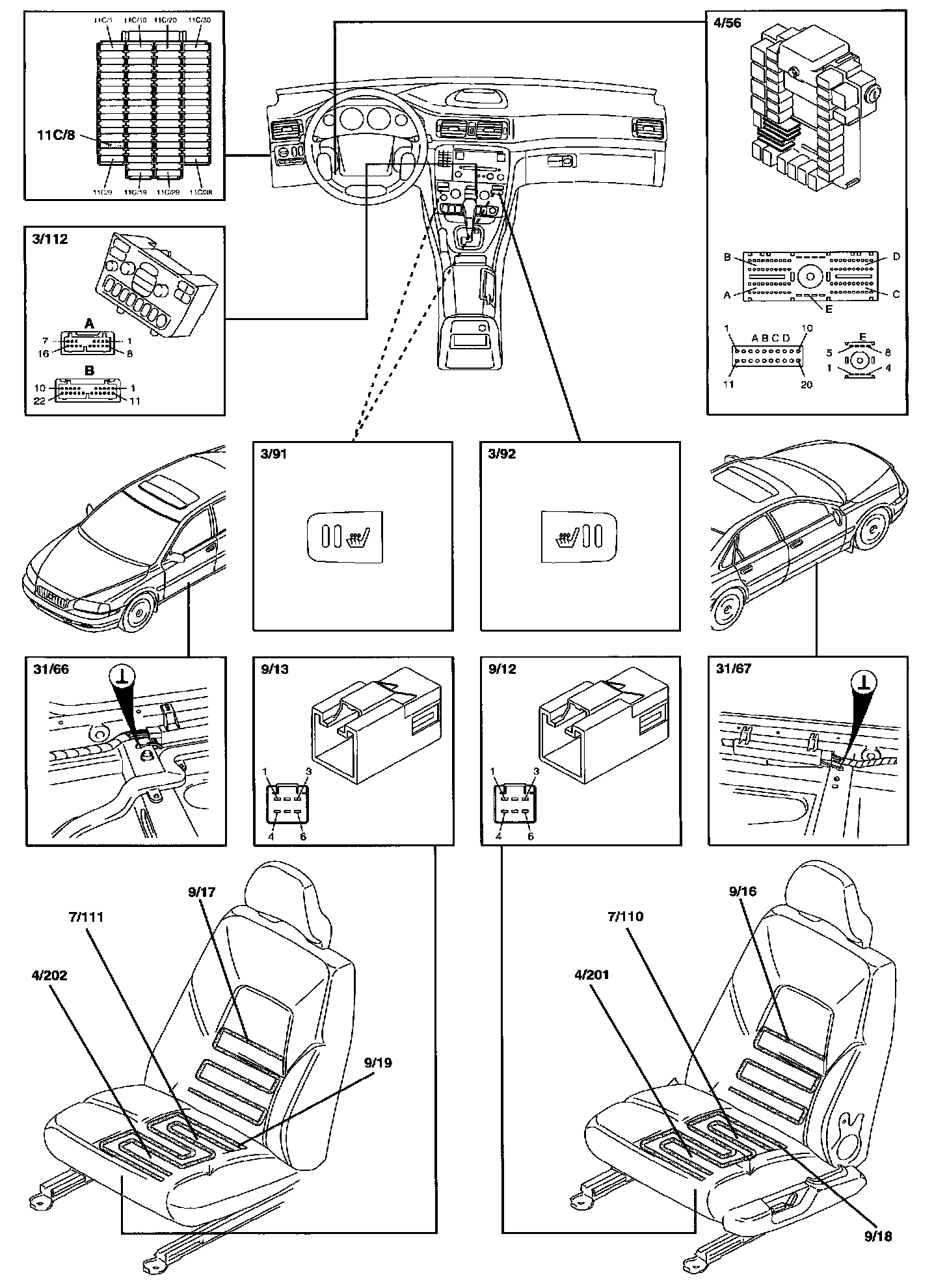

Component Location

Component I.D. List
3/91 Heated Seat Switch Front Left
3/92 Heated Seat Switch Front Right
3/112 Electrical Switch Module Climate Control (CCM)
4/56 Central Electronic Module (CEM)
4/201 Left Heated Seat Control Module
4/202 Right Heated Seat Control Module
7/110 Left Heated Seat Temperature Sensor
7/111 Right Heated Seat Temperature Sensor
9/12 Heated Seat Left
9/13 Heated Seat Right
9/16 Backrest Heater Pad, Left Front Seat
9/17 Backrest Heater Pad. Right Front Seat
9/18 Seat Heater Pad, Left Front Seat
9/19 Seat Heater Pad, Right Front Seat
11C/1-38 Fuses In Fusebox Passenger Compartment
31/66 Ground Terminal Front Seat Support Left-hand Side
31/67 Ground Terminal Front Seat Support Right-hand Side
