Rear Suspension

Rear suspension





General

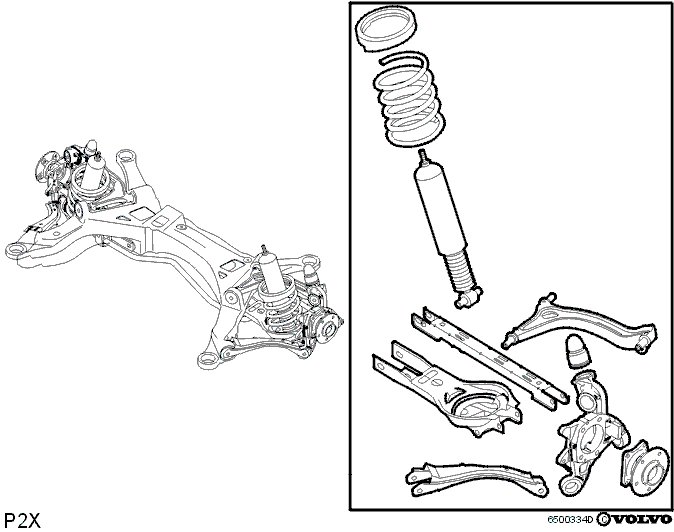

Rear suspension is the Multi link type.
This type of rear suspension provides good comfort and road holding qualities. The upper and lower struts and the control arms control the wheel movements and allow better lengthwise suspension travel. (Camber angle at the springs)
Toe-in is adjustable at the inner track rod mounting (eccentric screw).
Low build height.

Chassis setting
- 2 different types of chassis settings:
- Standard and Dynamic. (market dependent)
- The Nivomat rear shock absorber is available as standard/option on all chassis settings.
