Location Of Components. Immobilizer

Component positioning

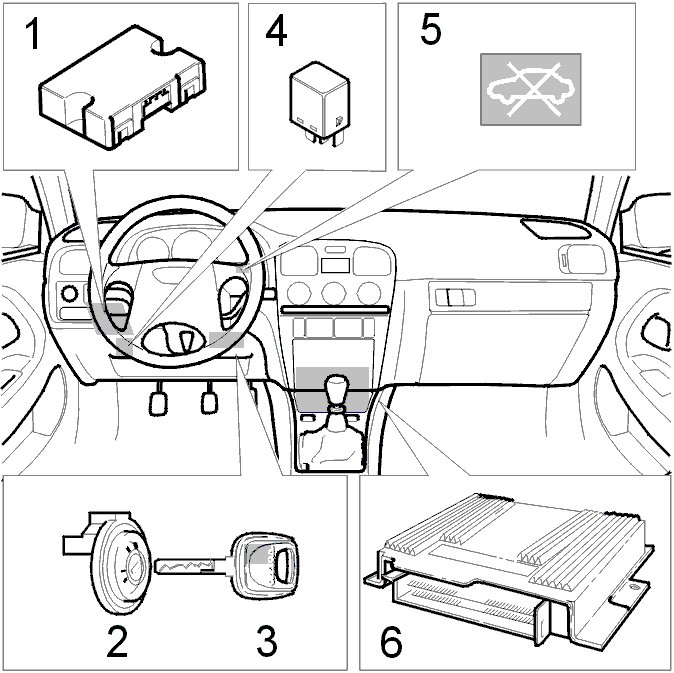

Location Of Components. Immobilizer:

- Immobilizer control module (1)
- Antenna ring (2)
- Transponder (3)
- Starter motor relay (4)
- Immobilizer indicator lamp (5)
- Engine control module (ECM) (gasoline) (6)
