Electrically Heated Front Seats
Electrically Heated Seats Front, Part 2 Of 2:

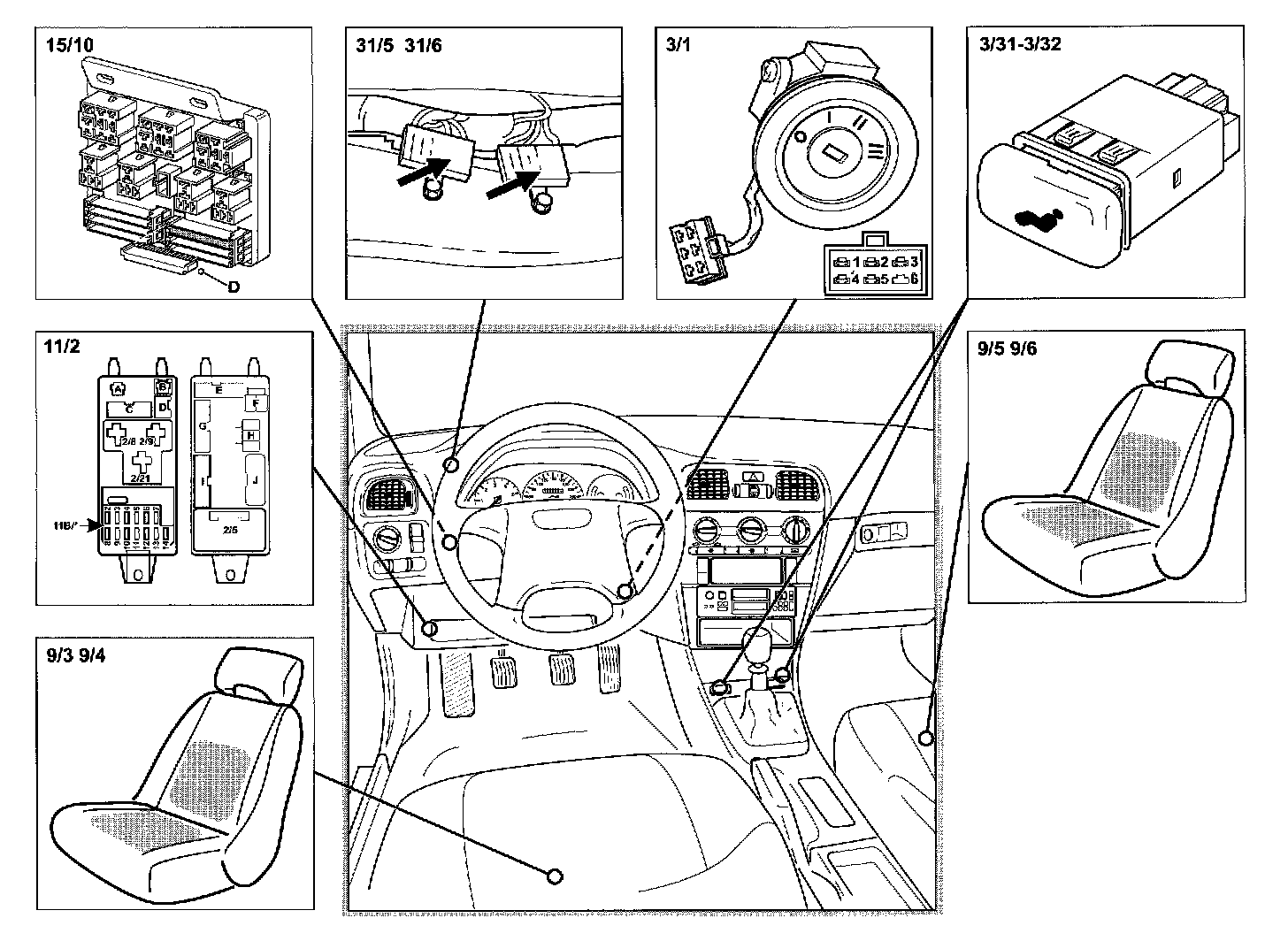

Component Locations
Electrically Heated Seats Front, Part 1 Of 2:

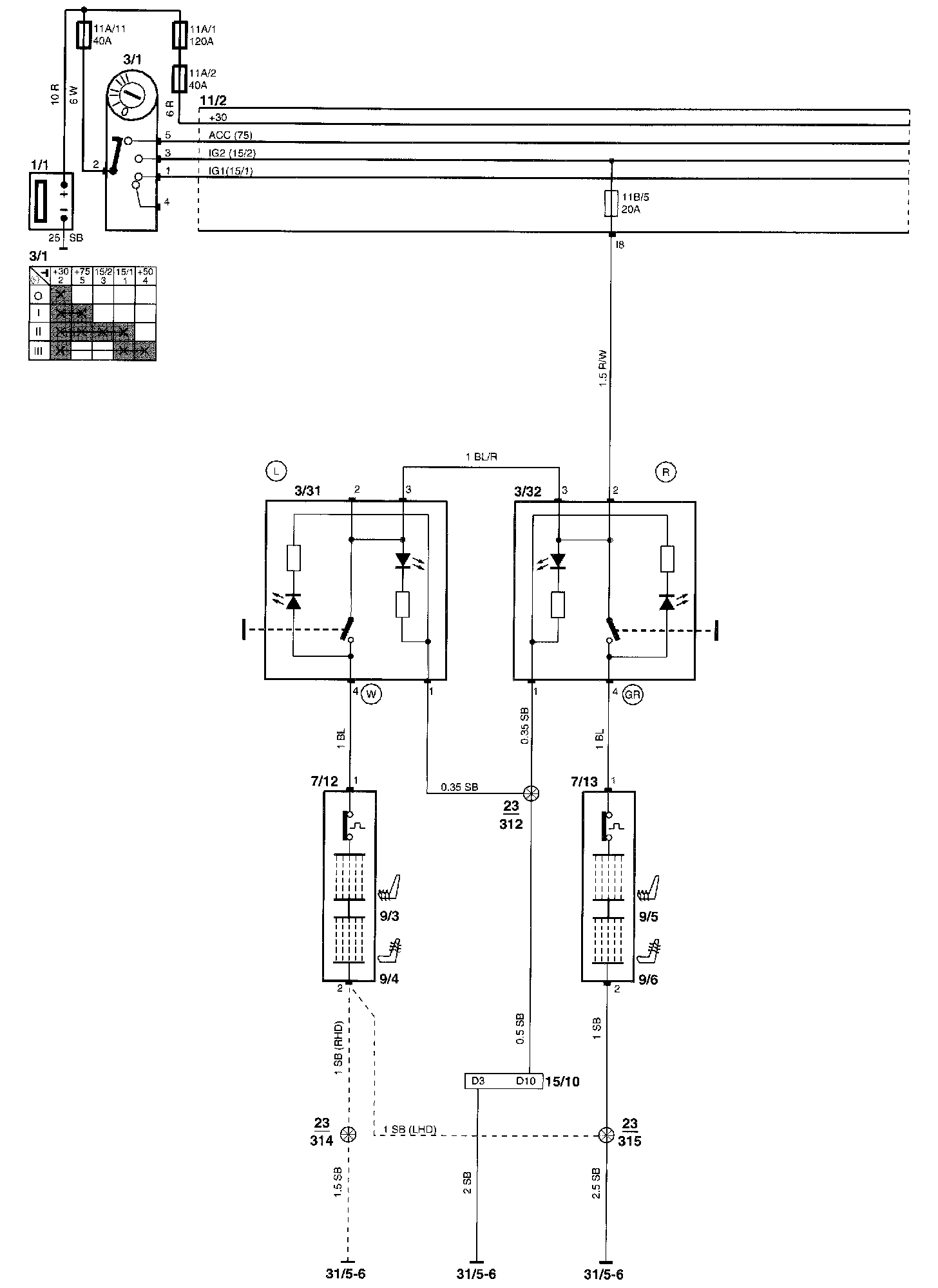

Wiring Diagrams
Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
