Power Seats
Power Seats, Part 2 Of 2:

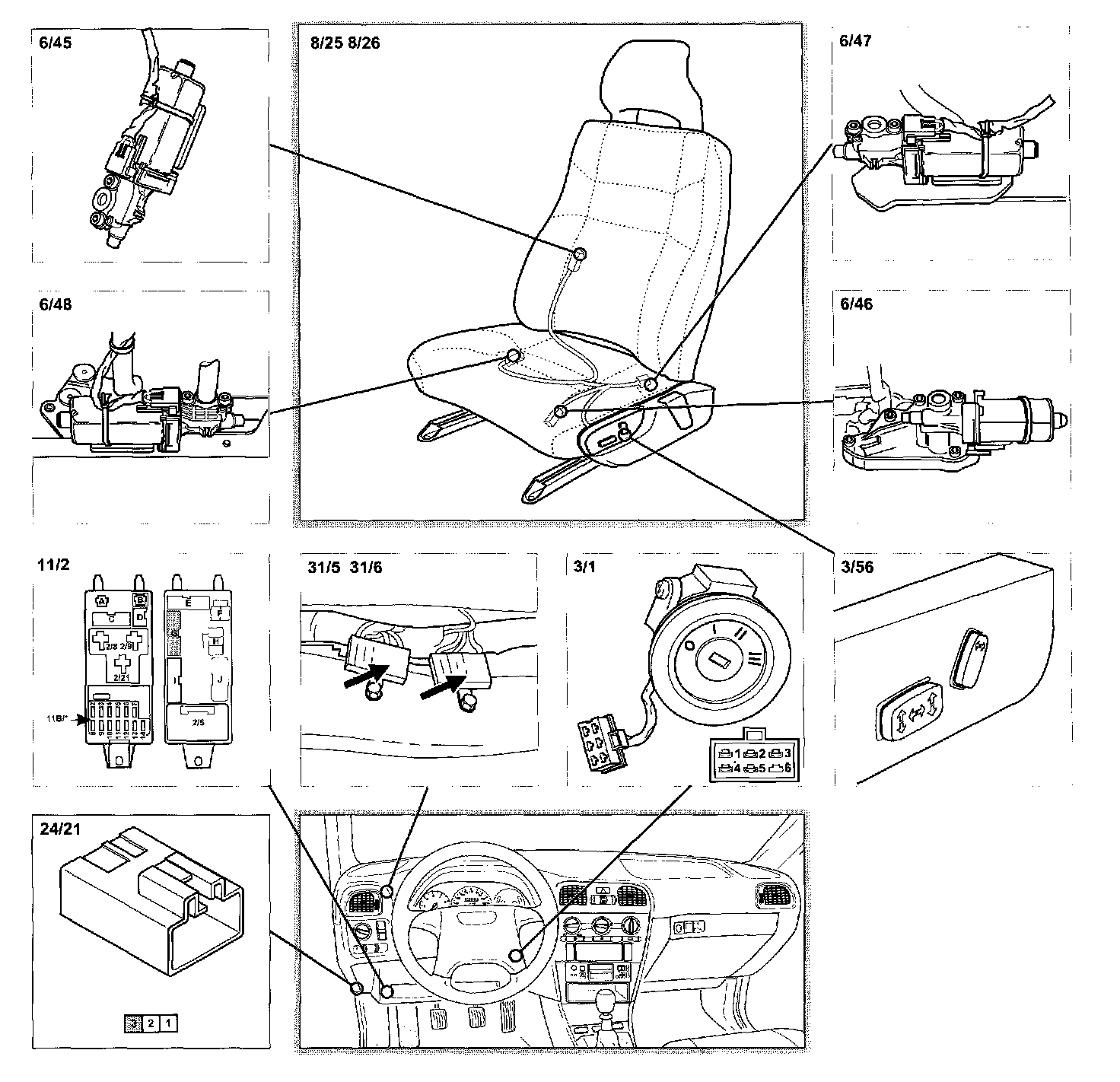

Component Locations
Power Seats, Part 1 Of 2:

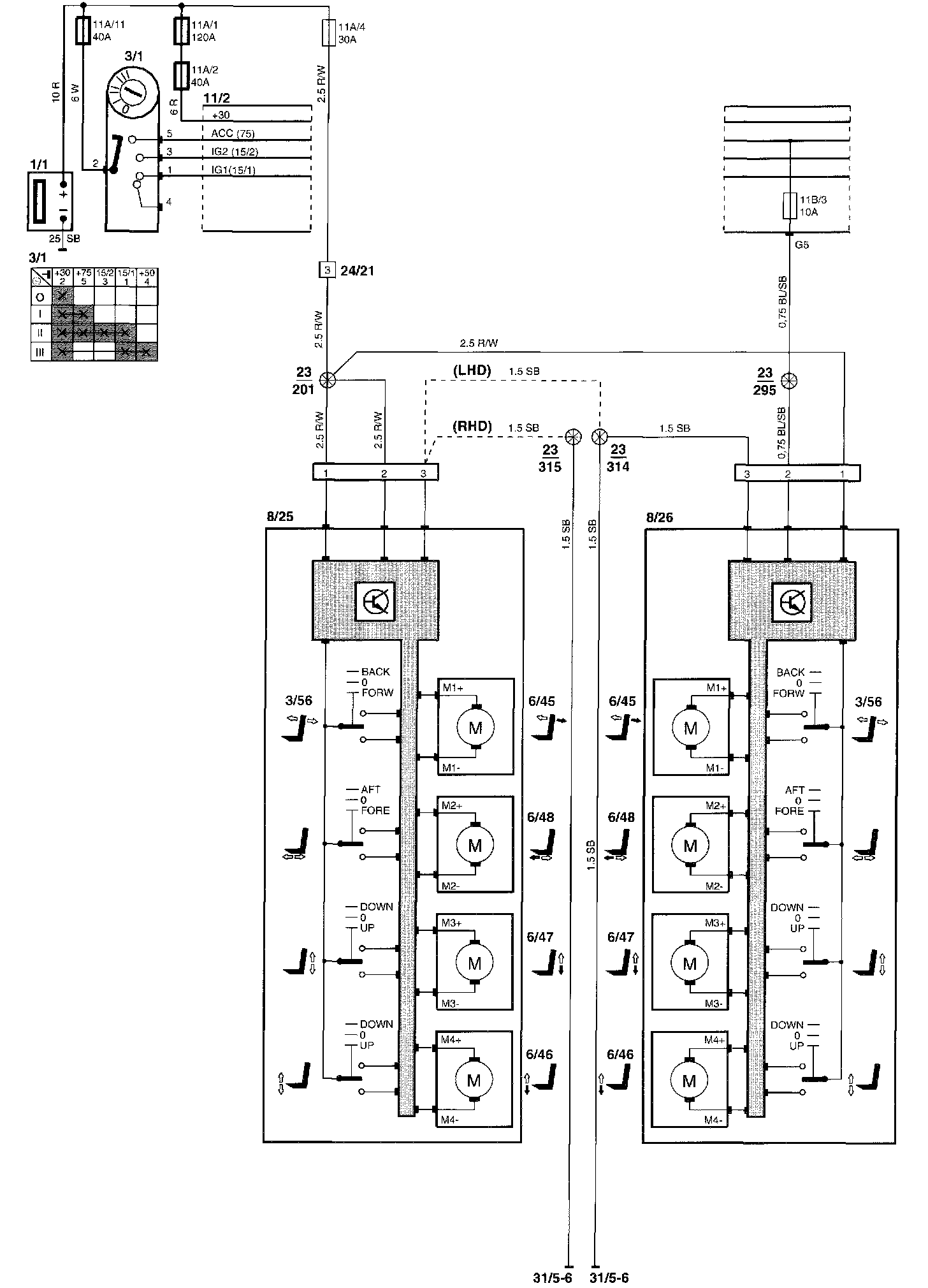

Wiring Diagrams
Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
Component Locations
Wiring Diagrams
Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
