Checking The SET+ Switch
Checking the SET+ switch
Terminal
Connecting the Volvo Scan Tool (ST)
Is the Volvo Scan Tool (ST) connected to both the VIDA cart and the car and switched on?
Yes - FAULT FOUND
No - No Fault Found
------------------------
FAULT FOUND - Checking the response code
-------------------------------------------------
Checking the response code
- Ignition on.
- Activate the Scan Tool (ST) in MODE 2.
- Move the ON/OFF switch to the ON position.
- Activate the SET- switch
- Check that the SET+ function is OK by checking that response code 1-3-1 is returned.
Is response code 1-3-1 returned?
- 1. Yes, response code 1-3-1 is returned.
- 2. No, response code 1-3-1 is not returned.
- 3. No, response code 3-1-1 is returned instead.
Select one of the above options.
1 - No Fault Found
2 - Checking other response codes
3 - Checking response code 3-1-1
-------------------------------------------------
Checking response code 3-1-1
A response code is transmitted when the control module receives several signals from the same component or wiring circuit within 8 milliseconds. The cause of the fault may be loose connections in the terminals or a defective system component.
Continue - Checking other response codes
-------------------------------------------------
Checking other response codes
- Ignition on.
- Activate the Scan Tool (ST) in MODE 2.
- Move the switch from ON to OFF or from OFF to ON.
- Check that the ON/OFF switch is OK by checking that response code 1-1-3 is returned.
Is response code 1-1-3 returned?
Yes - Checking the selector switch
No - Checking the voltage to the selector switch
-------------------------------------------------
Checking the voltage to the selector switch
- Selector switch connected.
- Ignition on.

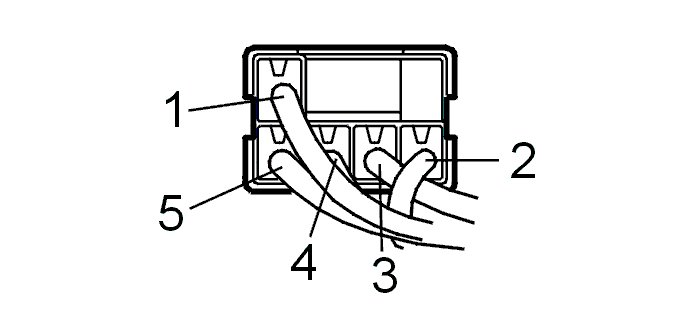

Connect a voltmeter between terminal #1 on the selector switch connector and ground.
The voltmeter should read battery voltage.
OK - Checking the selector switch
Not OK - Checking for an open-circuit
-------------------------------------------------
Checking for an open-circuit
- Ignition off.
- Check the cable between fuse 5 and terminal #1 on the selector switch connector for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring And Terminals. Permanent Fault.
Continue - Verification
-------------------------------------------------
Checking the selector switch
- Ignition off.
- Selector switch connected.
- Ignition on.
- Selector switch on.
Connect a voltmeter between terminal #3 on the selector switch connector and ground.
The voltmeter should read battery voltage when the SET+ switch is activated. The voltmeter should read approximately 0 V when the SET switch is not activated.
OK - Checking the power supply for the control module
Not OK - Checking the connector for the selector switch
-------------------------------------------------
Checking the connector for the selector switch
- Ignition off.
- Check terminals #1 and #3 on the selector switch connector for contact resistance and oxidation and for loose connections. Remedy contact resistance and oxidation according to Checking wiring and terminals. Permanent fault Checking Wiring And Terminals. Permanent Fault. Remedy loose connections according to Checking wiring and terminals. Intermittent faults Checking Wiring And Terminals. Intermittent Faults.
- Connect the selector switch.
- Ignition on.
- Selector switch on.
Connect a voltmeter between selector switch connector terminal #3 and ground.
The voltmeter should read battery voltage when the SET+ switch is activated. The voltmeter should read approximately 0 V when the SET switch is not activated.
OK - Checking the power supply for the control module
Not OK - Replacing the component
-------------------------------------------------
Replacing the component
- Ignition off.
- Replace the selector switch according to Selector switch, replacement Service and Repair.
Continue - Verification
-------------------------------------------------
Checking the power supply for the control module
- Ignition off.
- Disconnect the control module.
- Selector switch connected.
- Ignition on.
- Selector switch on.

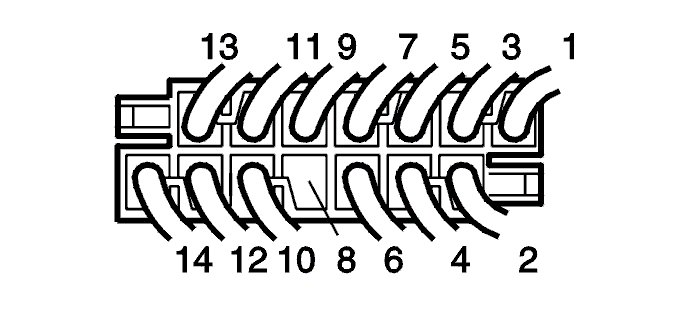

Connect a voltmeter between control module connector terminal #6 and ground.
The voltmeter should read battery voltage when the SET- switch is activated. The voltmeter should read 0 V when the SET- switch is not activated.
- 1. The value is OK.
- 2. The voltmeter reads 0 V.
- 3. The voltmeter reads battery voltage when the SET+ switch is not activated.
Select one of the above options.
1 - Checking the control module connectors
2 - Checking the cable between the selector switch and the control module
3 - Checking for a short-circuit
-------------------------------------------------
Checking for a short-circuit
- Ignition off.
- Check the cable between selector switch connector terminal #3 and control module connector terminal #6 for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring And Terminals. Permanent Fault.
Continue - Verification
-------------------------------------------------
Checking the cable between the selector switch and the control module
- Ignition off.
- Control module disconnected.
- Disconnect the selector switch.

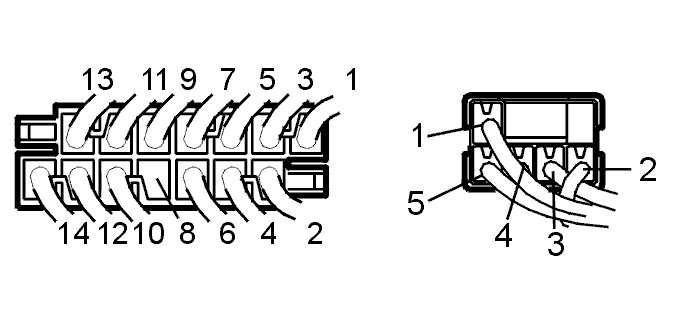

Connect an ohmmeter between selector switch connector terminal #3 and control module connector terminal #6.
The ohmmeter should read approximately 0 ohms.
OK - Checking the control module connectors
Not OK - Checking for an open-circuit
-------------------------------------------------
Checking for an open-circuit
- Ignition off.
- Check the cable between selector switch connector terminal #3 and control module connector terminal #6 for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring And Terminals. Permanent Fault.
Continue - Verification
-------------------------------------------------
Checking the control module connectors
- Ignition off.
- Check control module terminal #6 for contact resistance and oxidation and for loose connections. Remedy contact resistance and oxidation according to Checking wiring and terminals. Permanent fault Checking Wiring And Terminals. Permanent Fault. Remedy loose connections according to Checking wiring and terminals. Intermittent faults Checking Wiring And Terminals. Intermittent Faults.
- Connect the control module.
- Connect the selector switch.
- Connect the Volvo Scan Tool (ST) to the data link connector (DLC).
- Ignition on.
- Activate the Scan Tool (ST) in MODE 2.
- Move the ON/OFF switch to the ON position.
- Activate the SET- switch
- Check whether response code 1-3-1 is returned.
Is response code 1-3-1 returned?
Yes - Fault-tracing information
No - Replacing the component
-------------------------------------------------
Fault-tracing information
- The response code was not returned because there was a loose connection in the control module connectors.
Continue - FAULT FOUND
-------------------------------------------------
Replacing the component
- Ignition off.
- Replace the control module according to Control module Service and Repair.
Continue - Verification
-------------------------------------------------
Verification
VERIFIED - FAULT FOUND
VERIFICATION FAILED - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking the response code
-------------------------------------------------
DONE - Checking the response code
-------------------------------------------------
