Checking the Cable to the Vacuum Pump




Checking The Cable To The Vacuum Pump

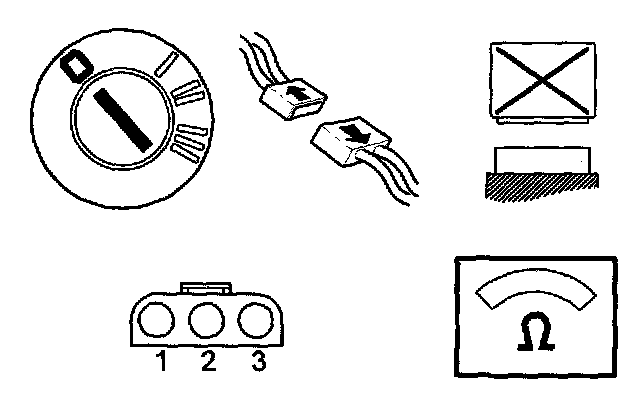

- Ignition off.
- Disconnect the vacuum pump.
- Control module disconnected.

Connect a voltmeter between vacuum pump connector terminal 2 and ground.

The ohmmeter should read infinite resistance.

OK - Checking the Voltage to the Vacuum Pump

NOT OK - Checking For A Short-Circuit - II
