Transmission Connectors

Transmission connectors

Transmission connectors (x5)
There are five connectors on a bracket mounted on the transmission the engine compartment. The transmission sensors are connected to system via these connectors. The connectors are "marked" and column below.





1. Engine speed (RPM) sensor
2. Oil temperature sensor
3. Vehicle speed sensor (VSS)
4. Solenoids
5. Gear-shift position sensor

The illustrations below show the connectors connected to the trans module (TCM) cable hamess and to the car's electrical system. The connectors (mounted on the bracket) are numbered in the opposite

The connections apply to two different engine management system

- EMS 2000
- Fenix.

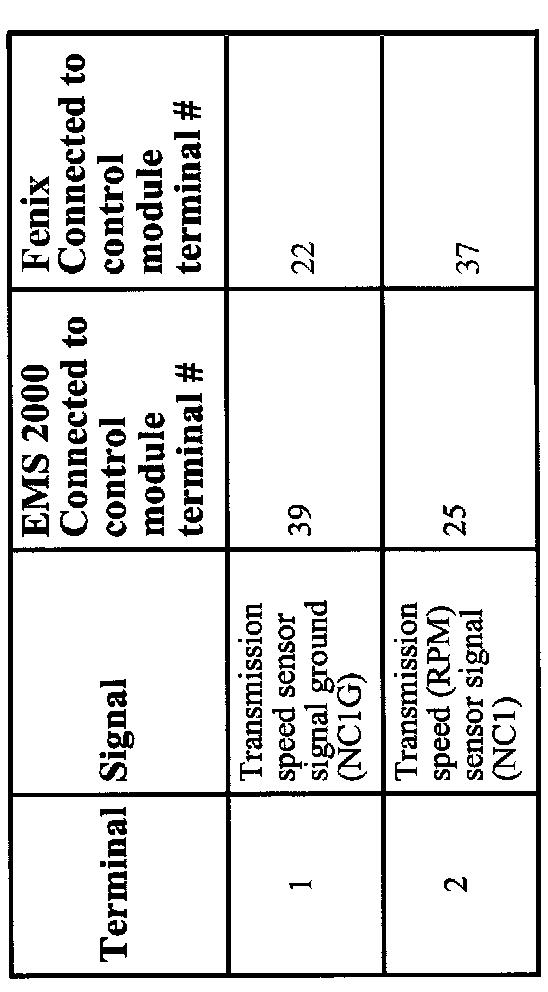

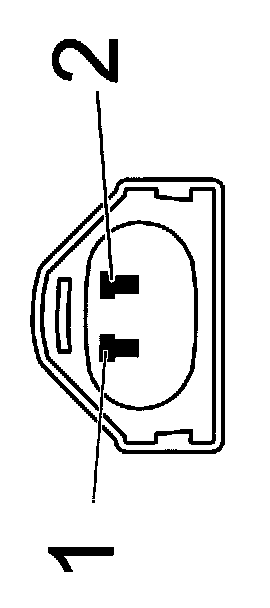

1. Engine speed (RPM) sensor Connector, black (2-pin)

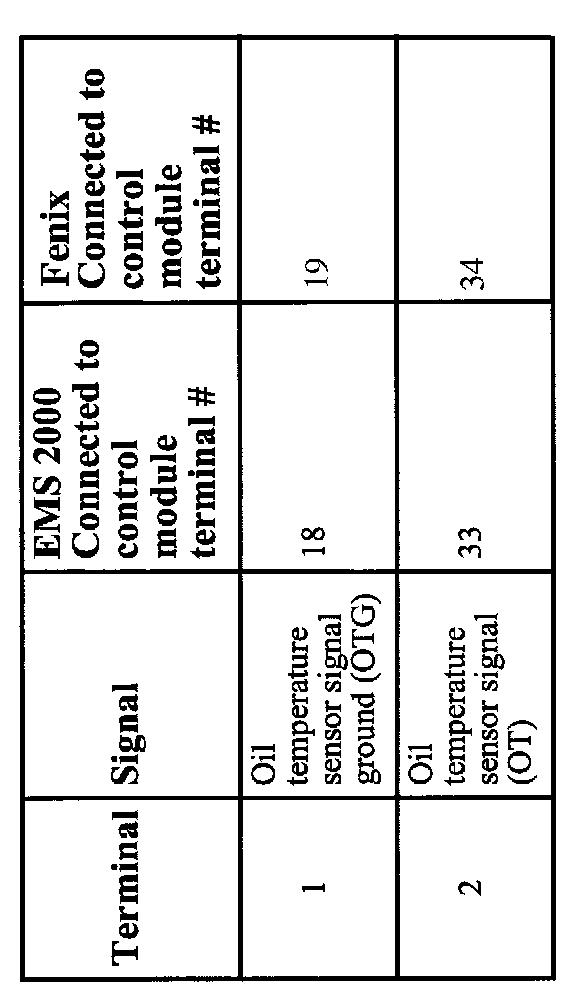

2. Oil temperature sensor Connector, gray (2- pin)

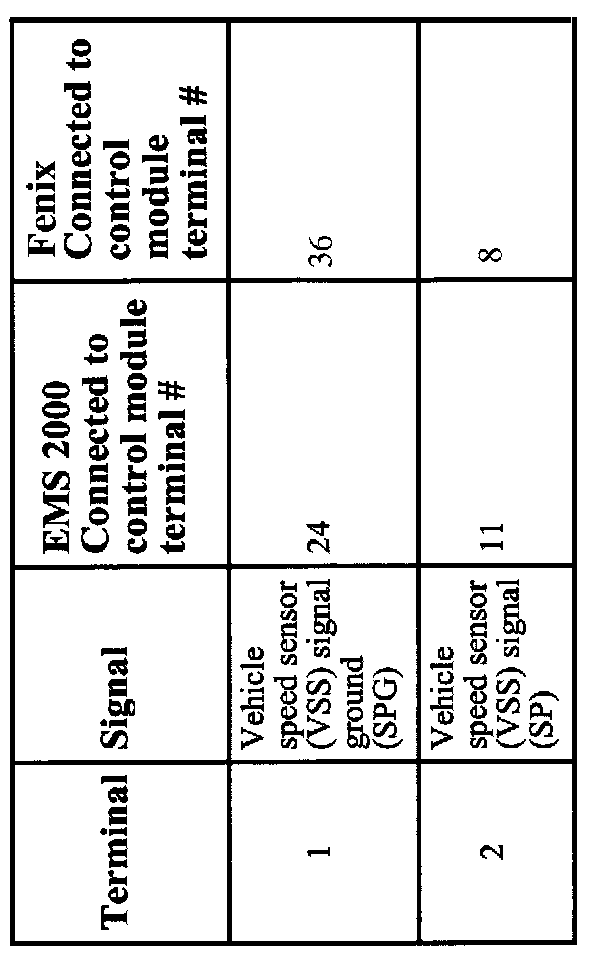

3. Vehicle speed sensor (VSS) Connector, white (2-pin)

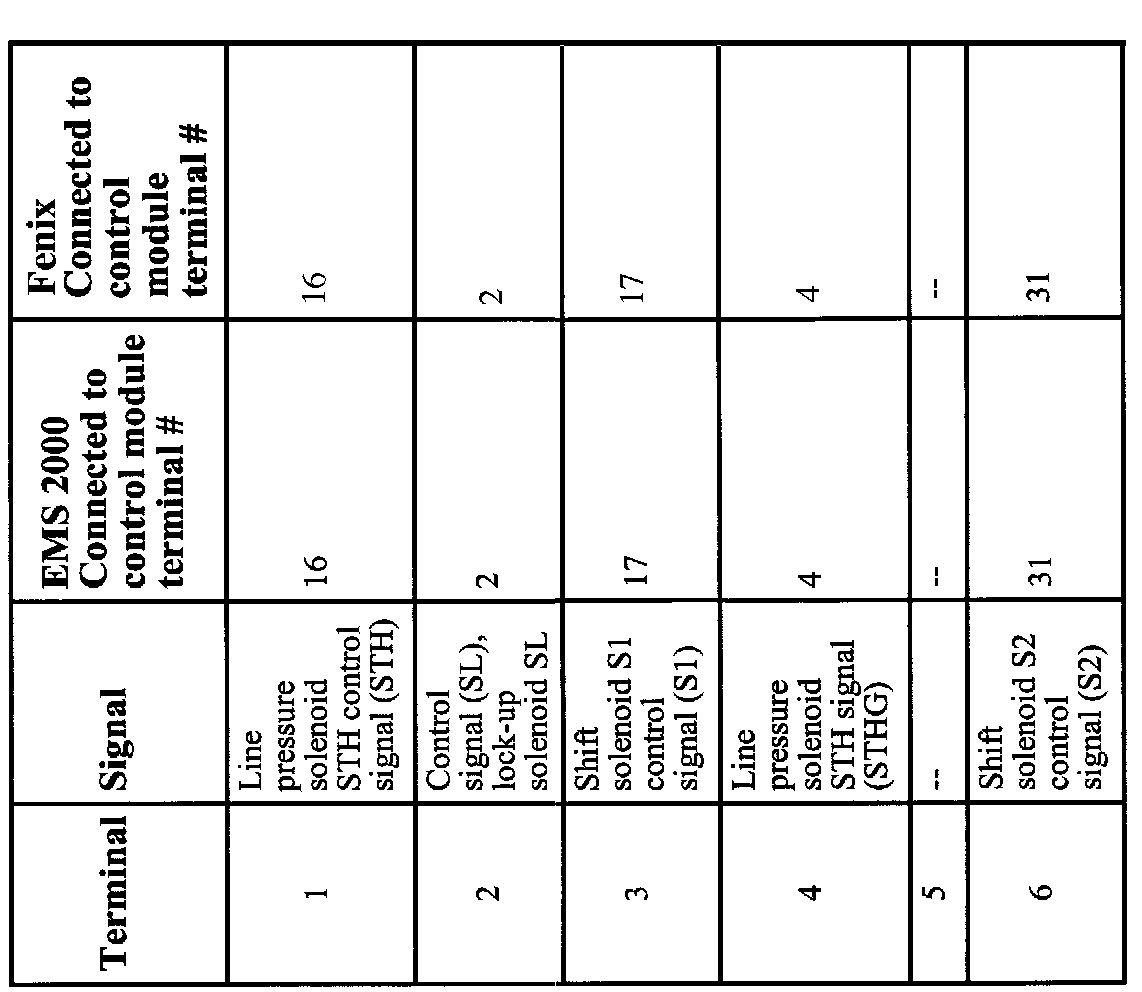

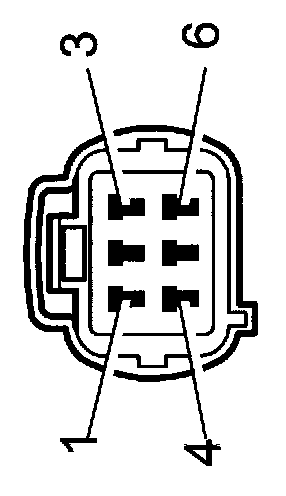

4. Solenoids Connector, dark gray (6-pin)

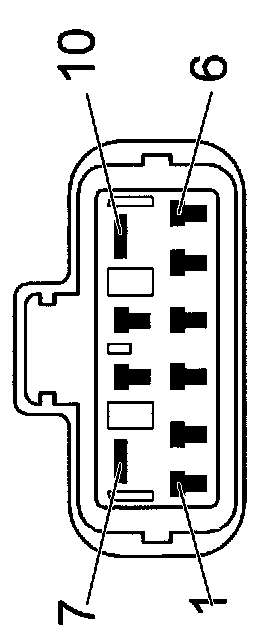

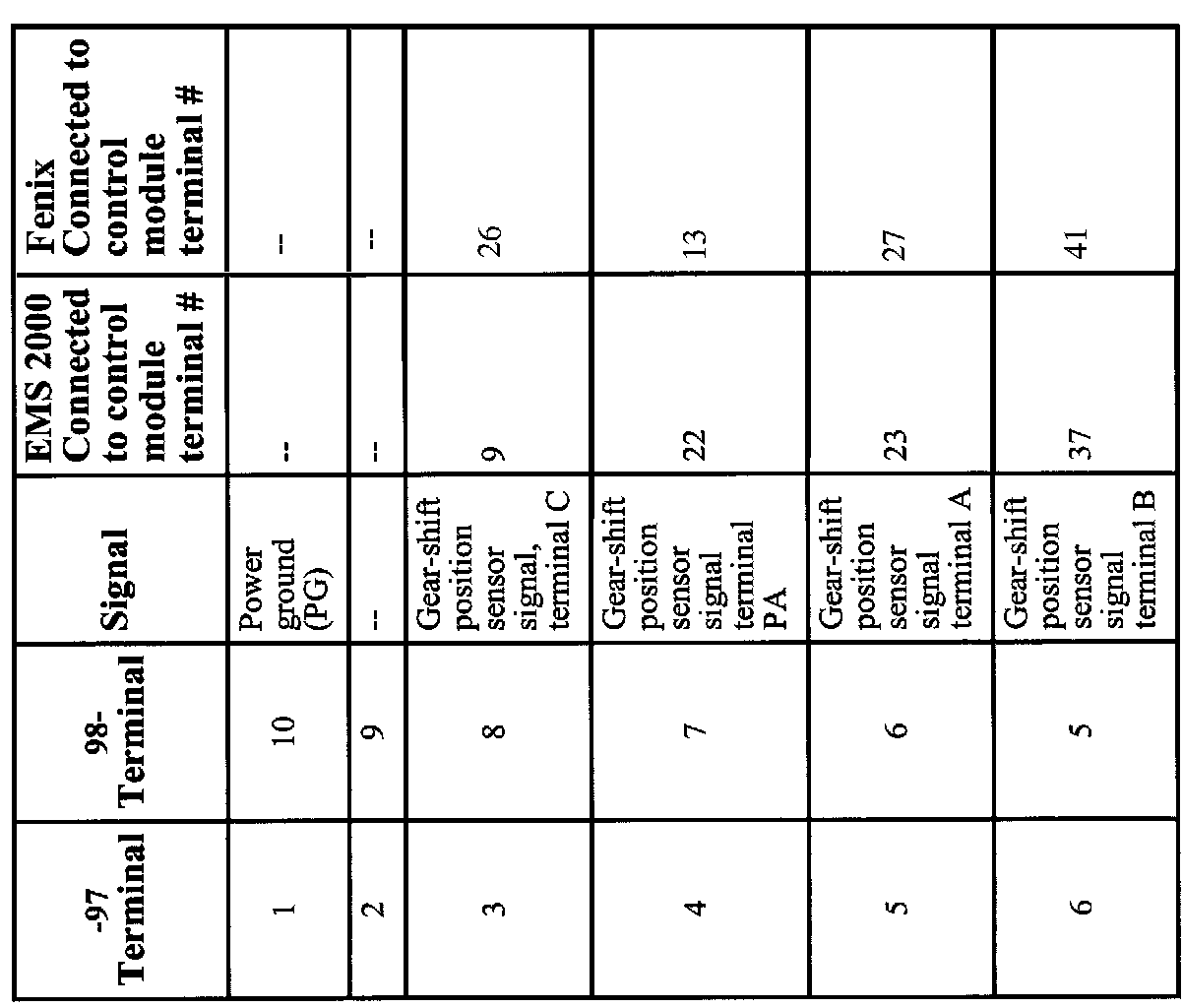

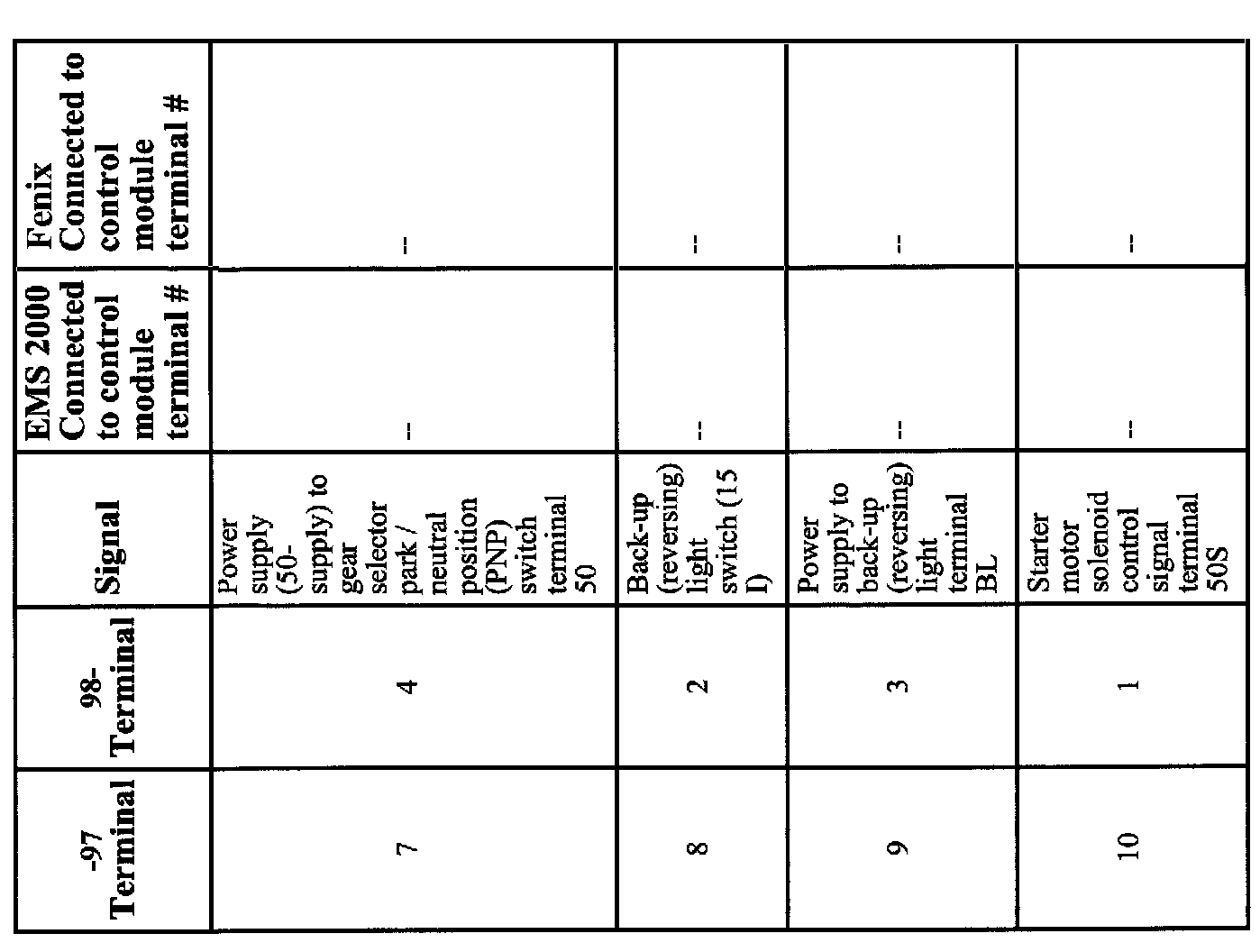

5. Gear-shift position sensor Connector, gray (10- pin)
