Immobilizer

Immobilizer, Part 1 Of 2:

Wiring Diagram

Immobilizer, Part 2 Of 2:

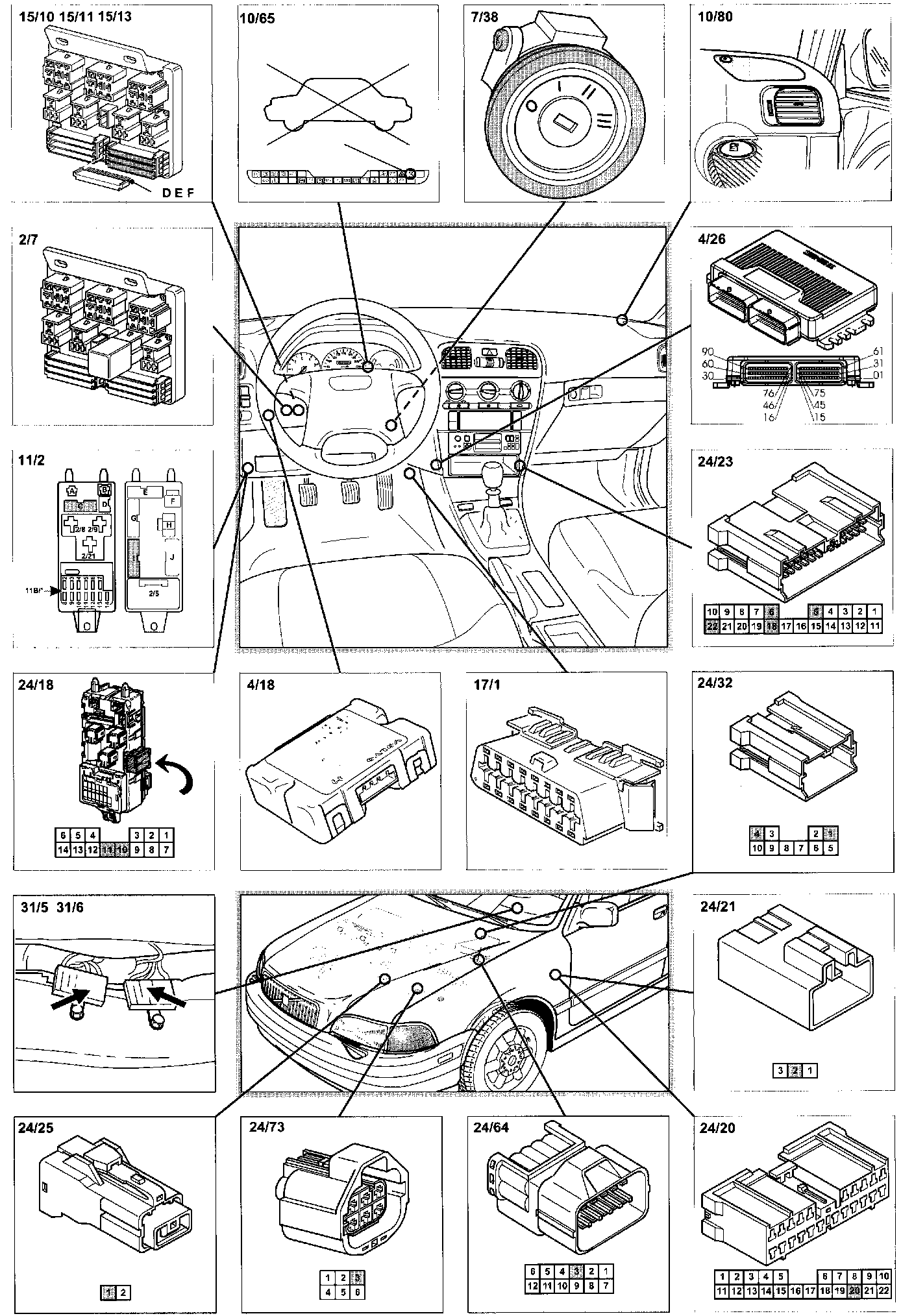

Component Locations

Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
