Fog/Driving Lamp
Fog Lamps, Part 1 Of 2:

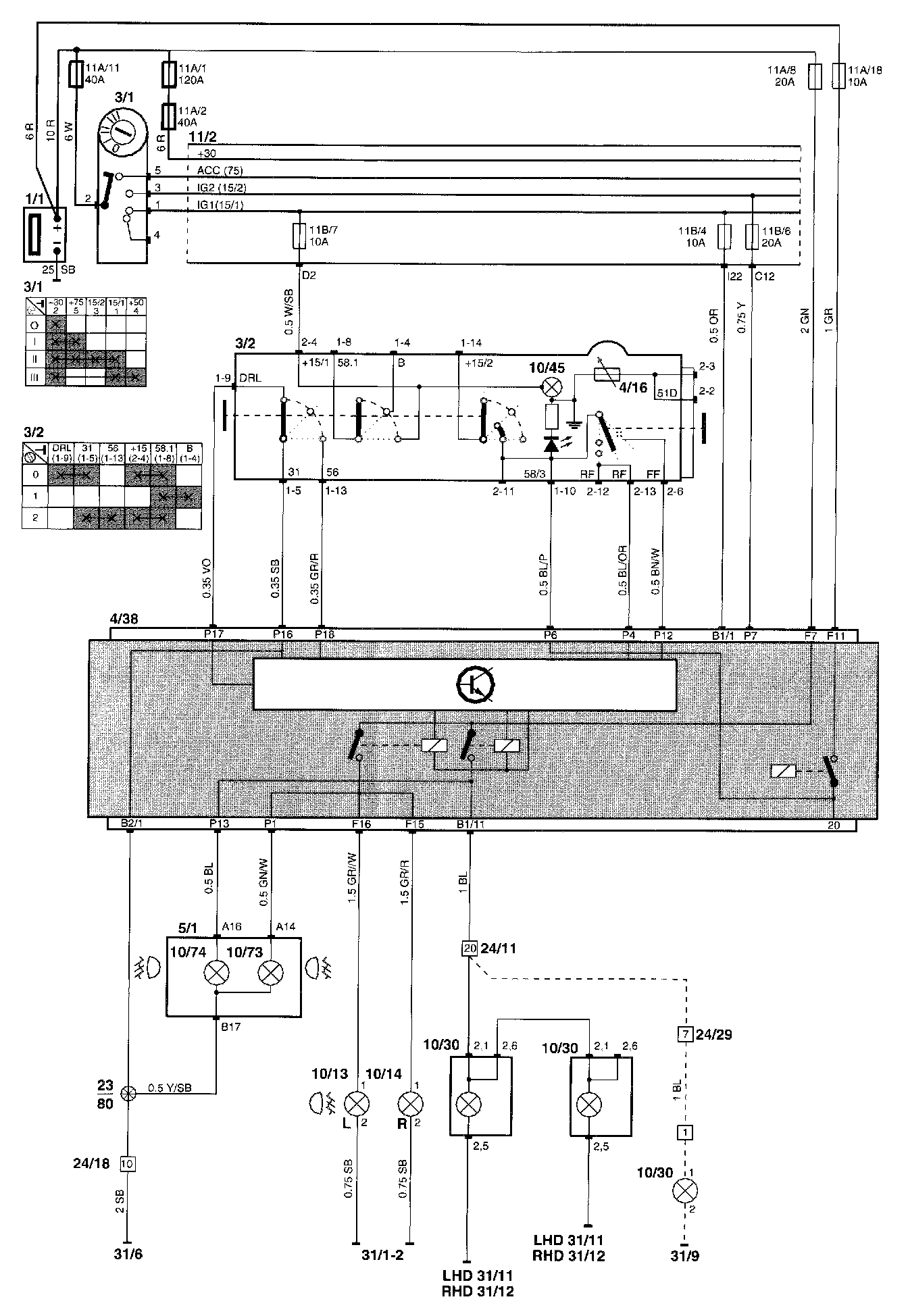

Wiring diagram
Fog Lamps, Part 2 Of 2:
Component Locations
Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
Wiring diagram
Component Locations
Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
