Lamp Out Sensor

Stop (brake) lamps and bulb failure warning sensor

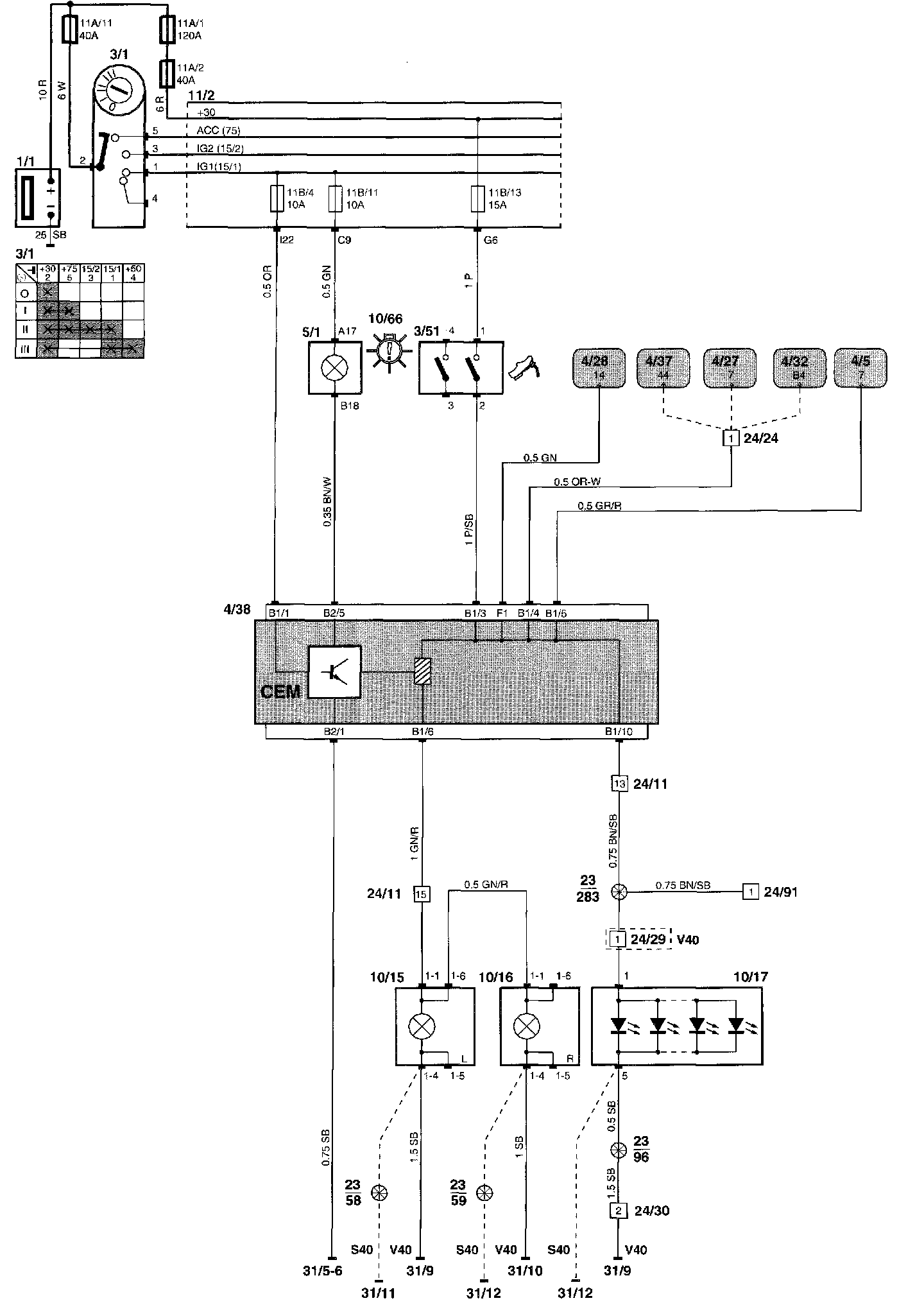

Stop Lamps & Bulb Failure Warning Sensor, Part 1 Of 2:

Wiring Diagram

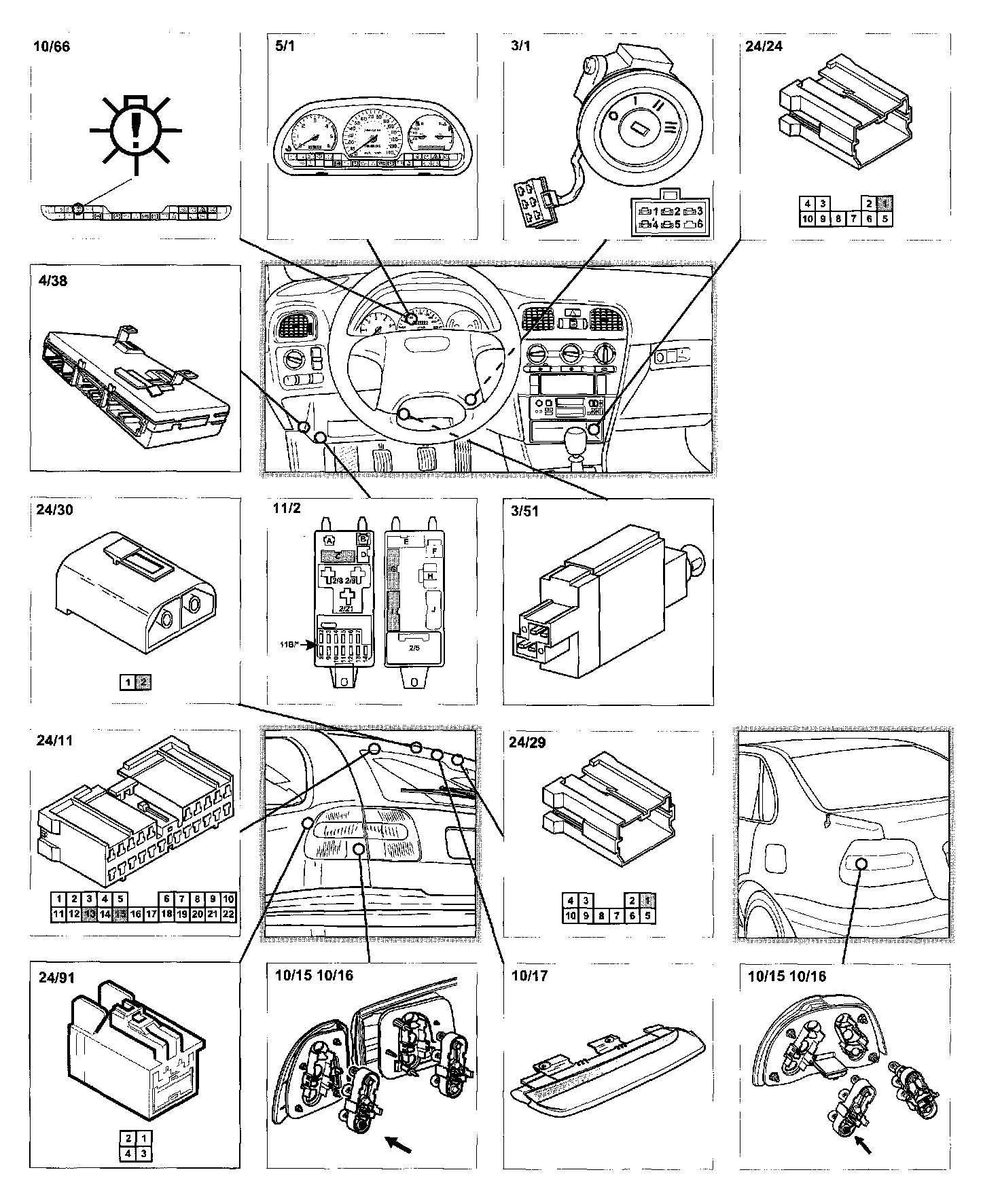

Stop Lamps & Bulb Failure Warning Sensor, Part 2 Of 2:

Component Locations

Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
