Remote Controlled Central Locking - General

Remote Controlled Central Locking - General

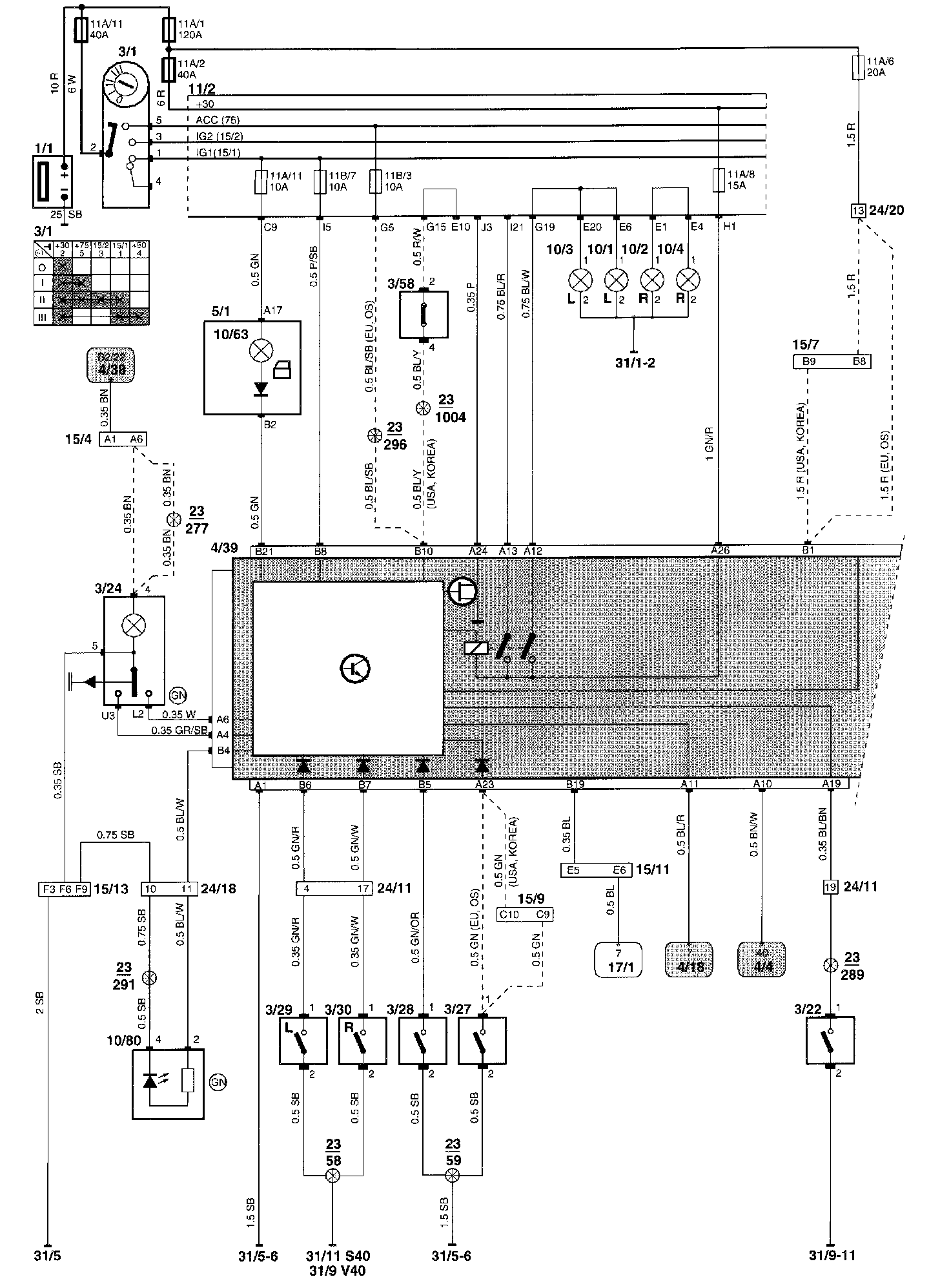

Remote Controlled Central Locking, Part 1 Of 2:

Wiring Diagram

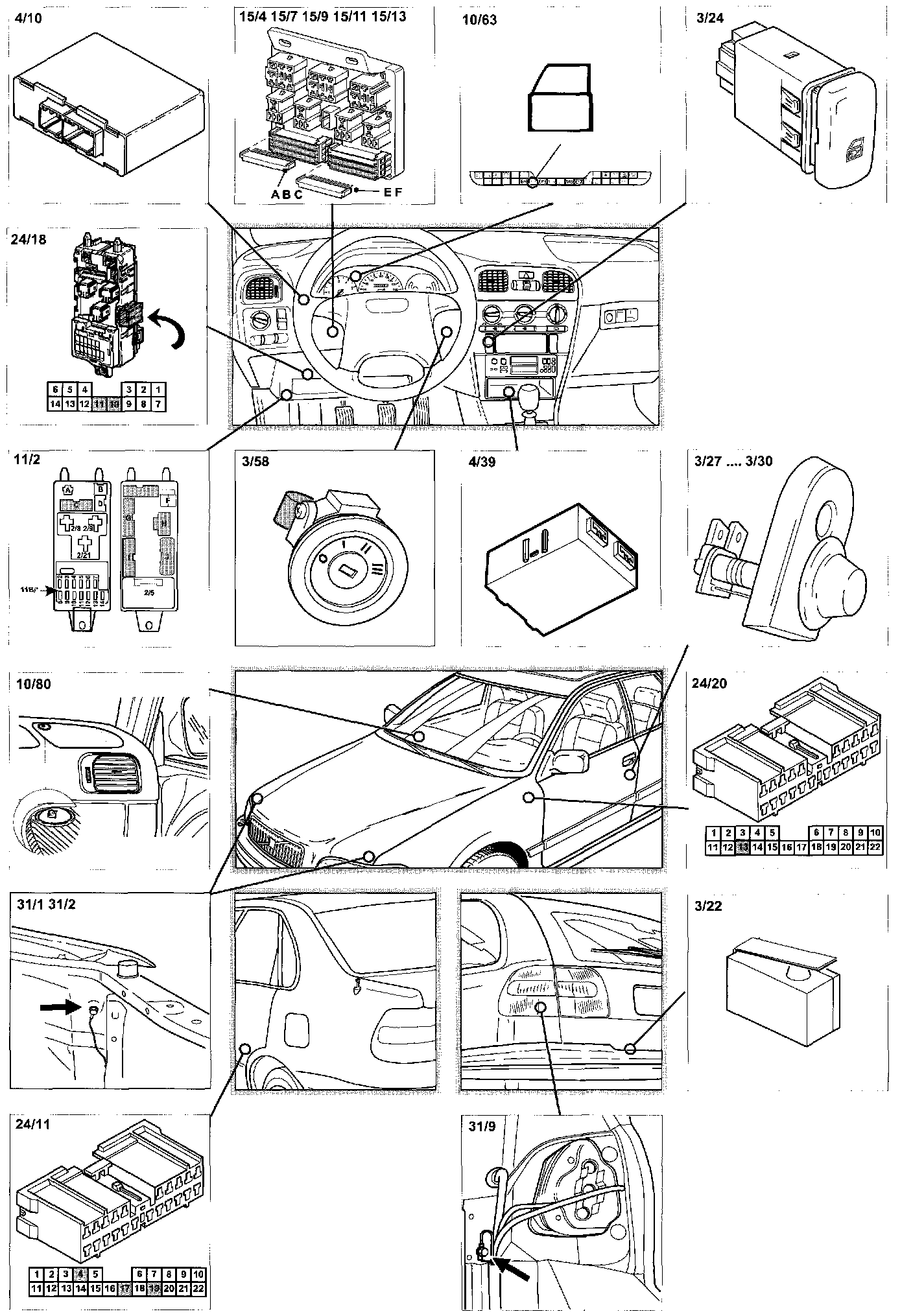

Remote Controlled Central Locking, Part 2 Of 2:

Component Locations

Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
