Manual Climate Control (MCC)

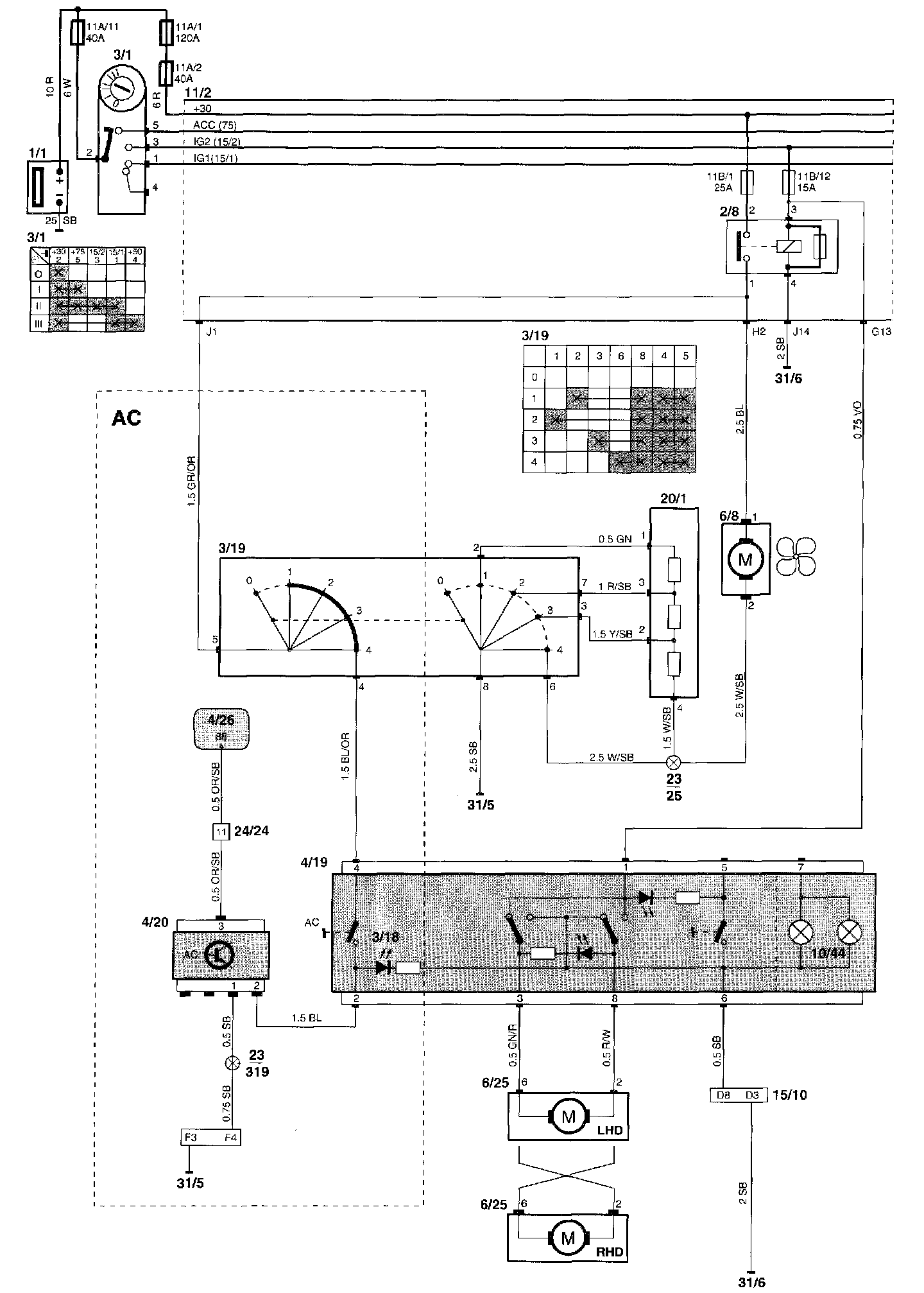

Manual Climate Control, MCC, Part 1 Of 2:




Wiring Diagrams

Manual Climate Control, MCC, Part 2 Of 2:




Component Locations

Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
