Reading Off Parameters

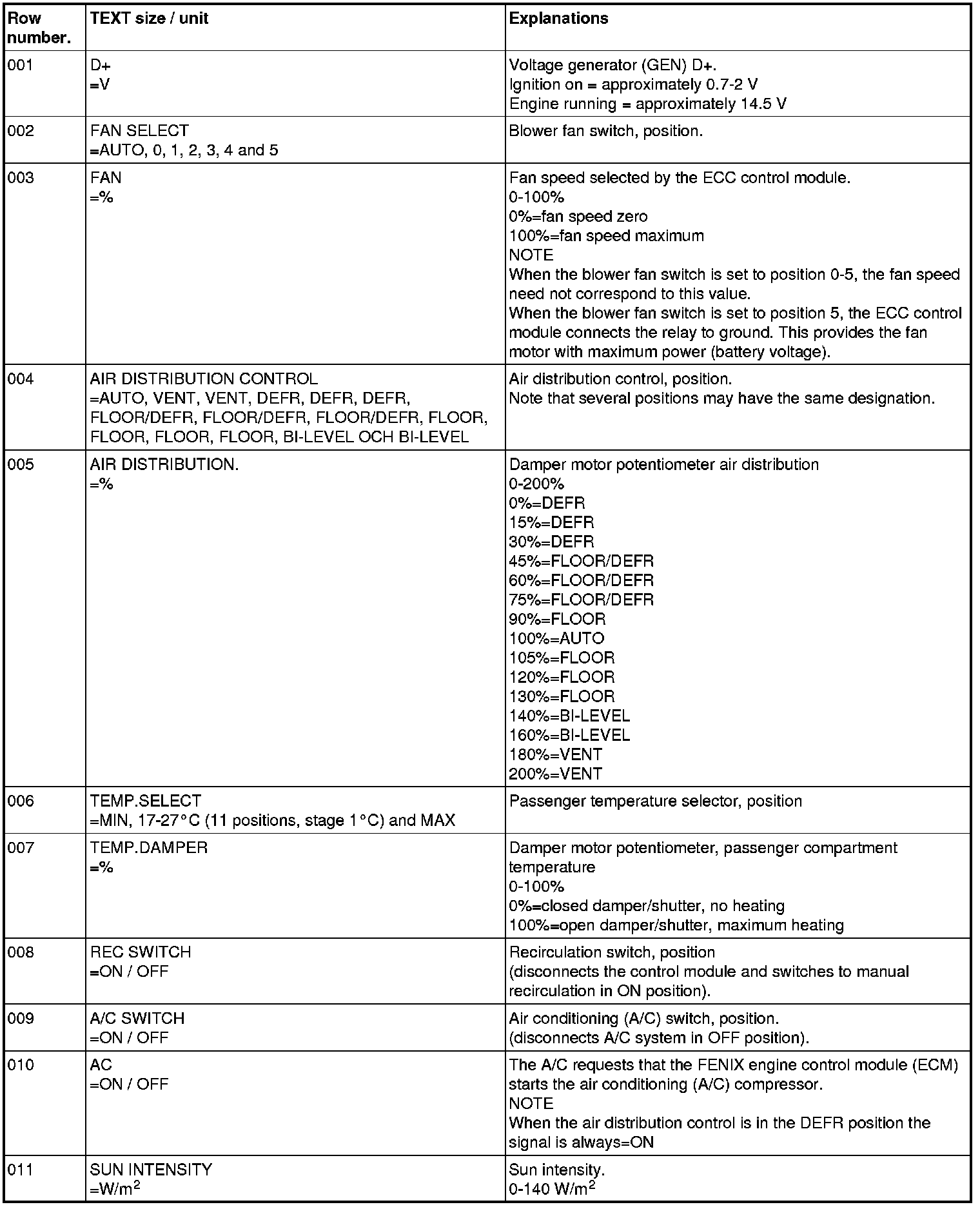

Reading off parameters
Note!
For the ECC system to function in the correct way, and to facilitate the fault-tracing, the knobs and switches on the front of the ECC control module must be in certain positions.
