Connector B, Terminals #B1 - #B24

Signal specification

Combined instrument panel signal description

Signal specification, from model year up to 1999 inclusive

Connector B, terminals # B1 - # B24
All values given below are between the respective terminal in column 1 and terminal # A13 (signal ground).If this is not the case it is indicated in parentheses

NOTE: It is important to connect the breakout box and check ground terminals before reading off.

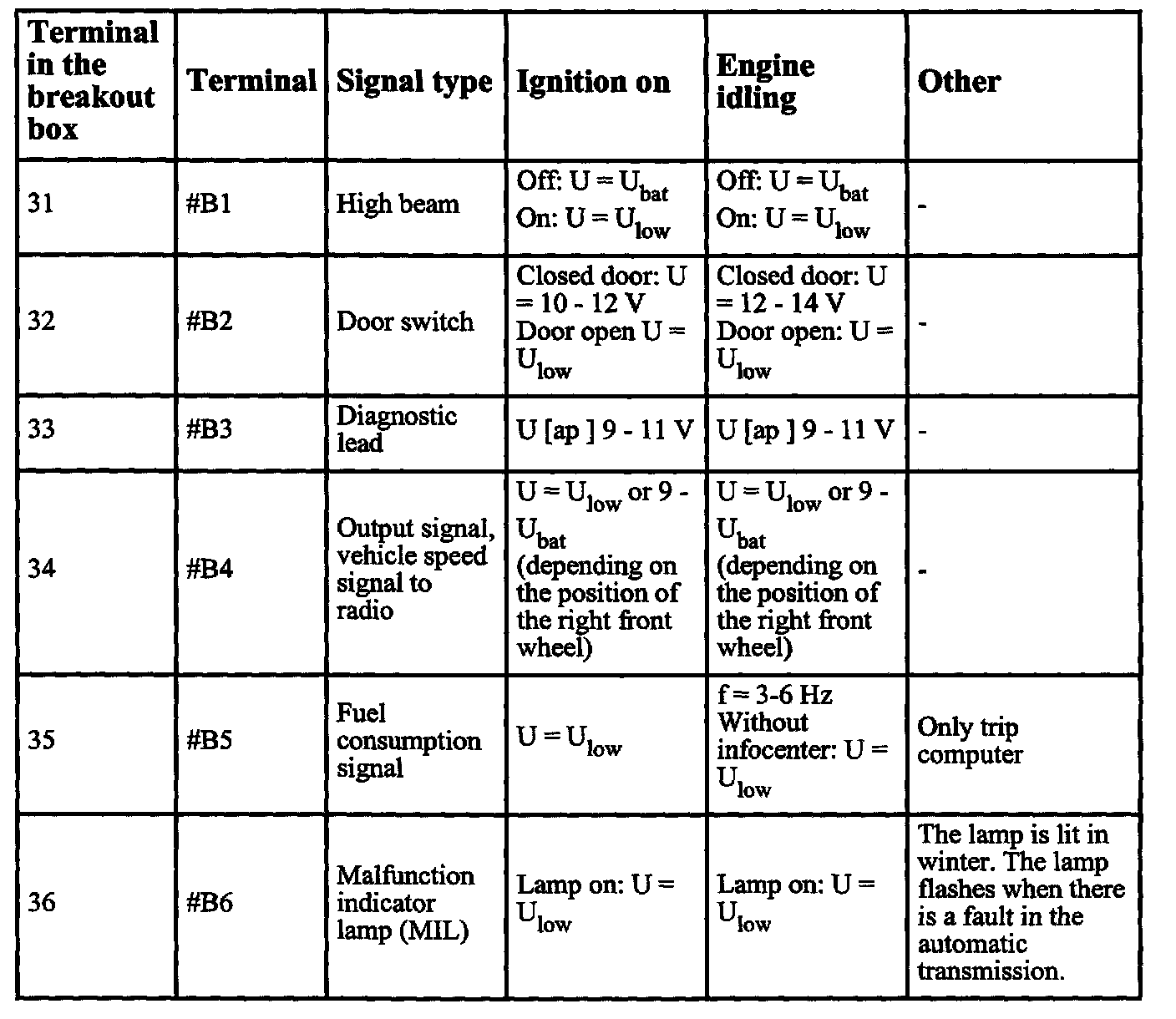

Terminals #B1 - #B6:

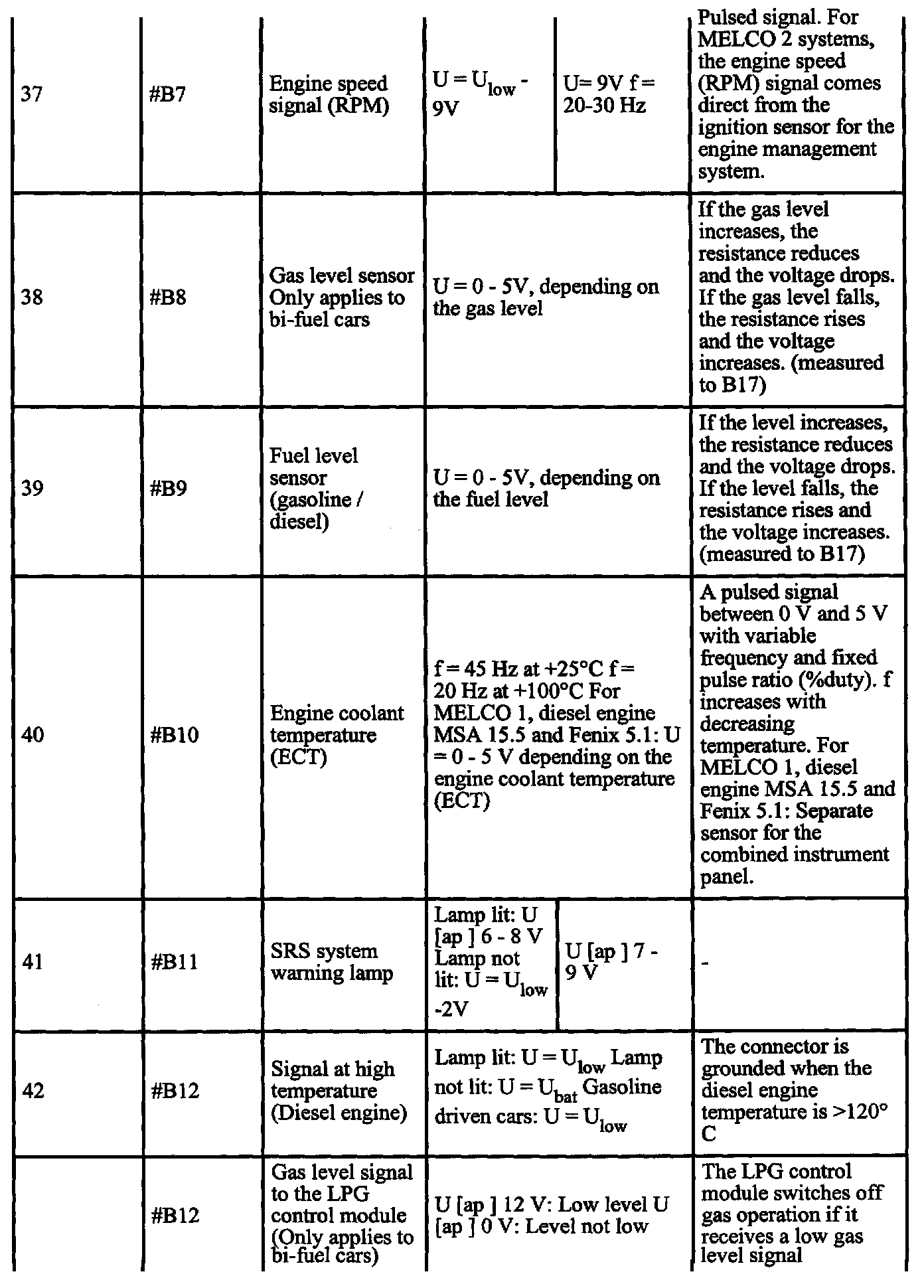

Terminals #B7 - #B14:

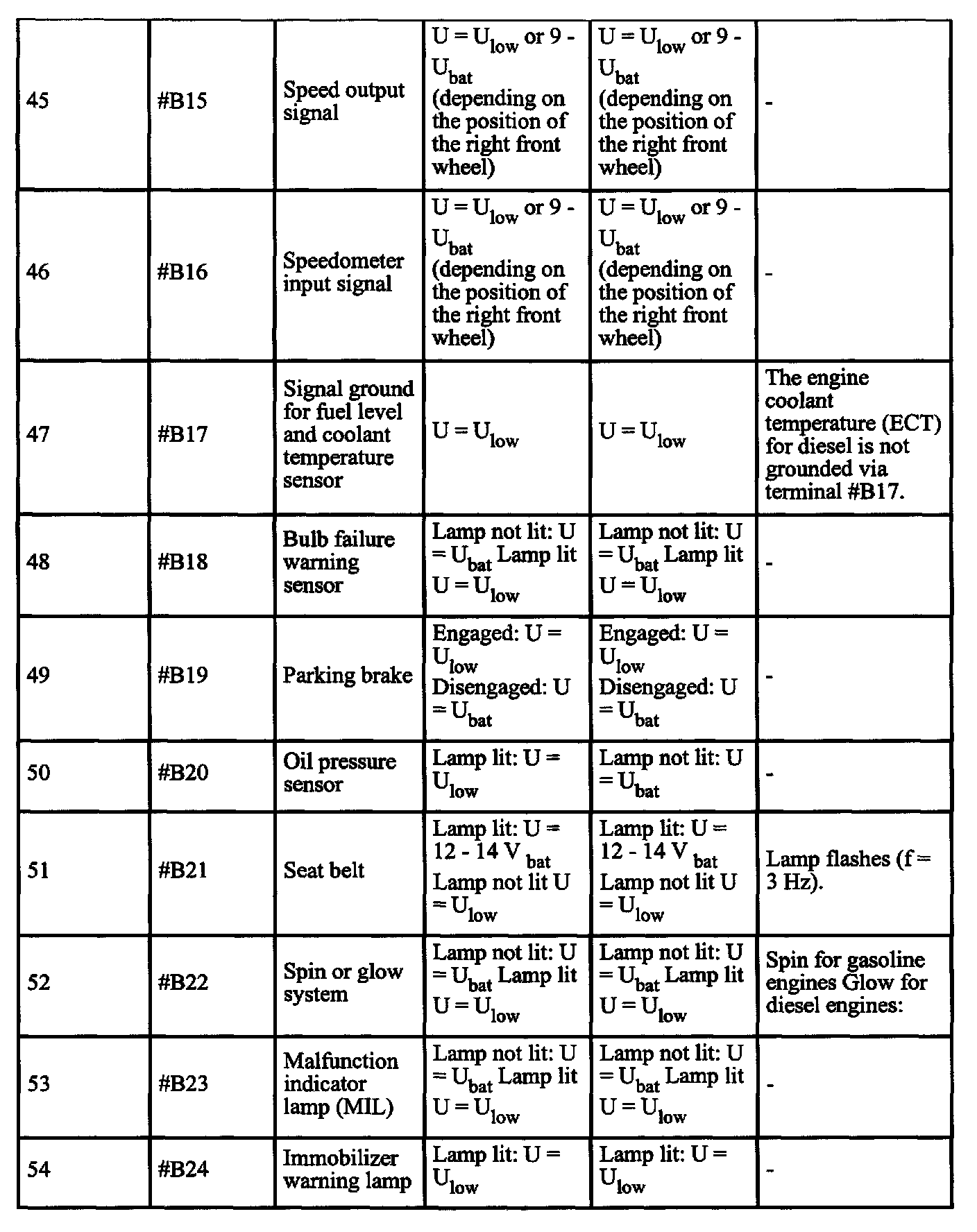

Terminals #B15 - #B24:

Signal specification, from model year 2000 inclusive

Connector B, terminals # B1 - # B24
All values given below are between the respective terminal in column I and terminal # A13 (signal ground).If this is not the case it is indicated in parentheses.

NOTE: It is important to connect the breakout box and check ground terminals before reading off.

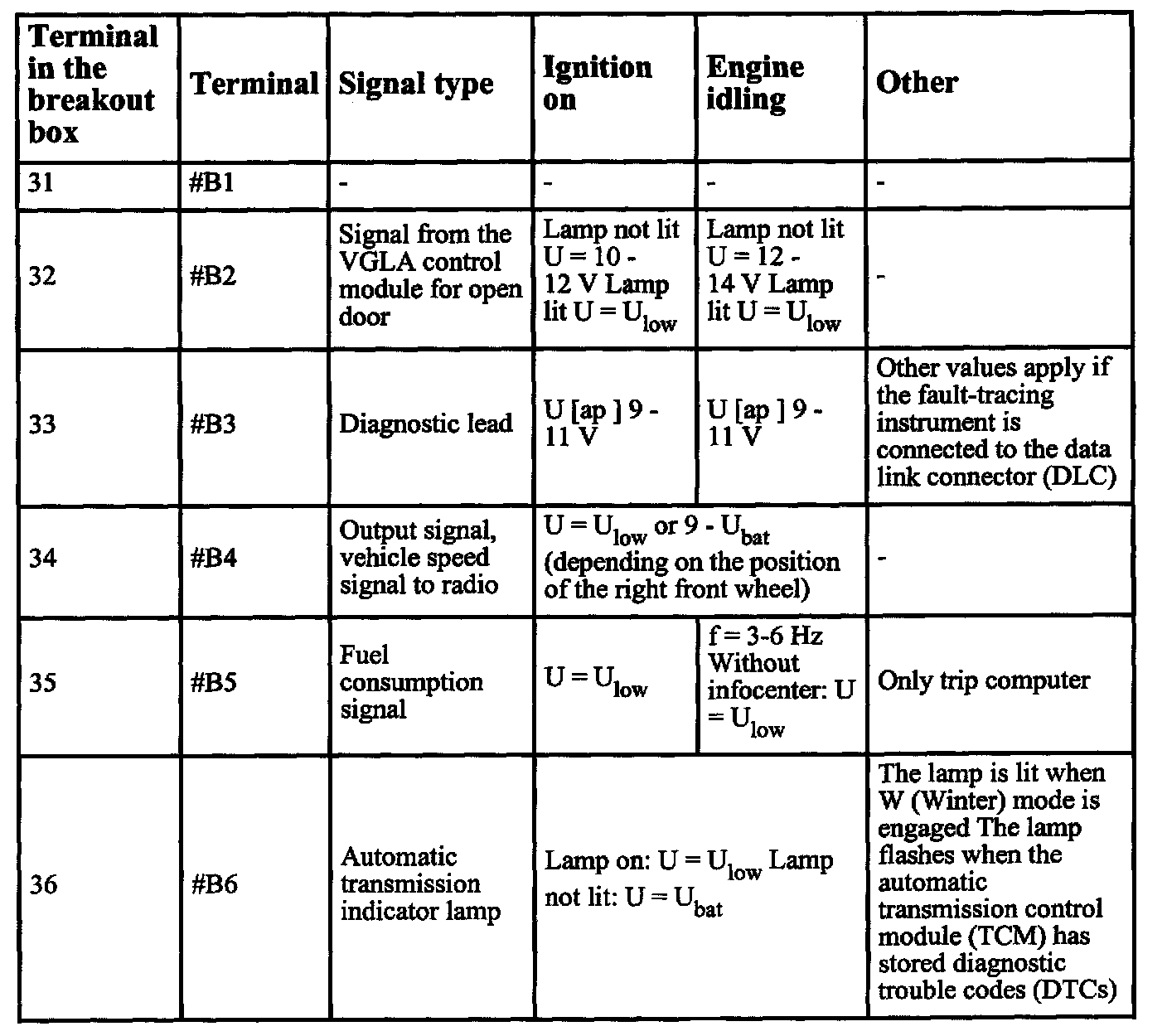

Terminals #B1 - #B6:

Terminals #B7 - #B12:

Terminals #B13 - #B24:
