Procedures

Replacing bulbs in the combined instrument panel

Replacing bulbs

Bulbs in the combined instrument panel are replaced from behind.

- Disconnect the combined instrument panel according to the instructions Instrument.

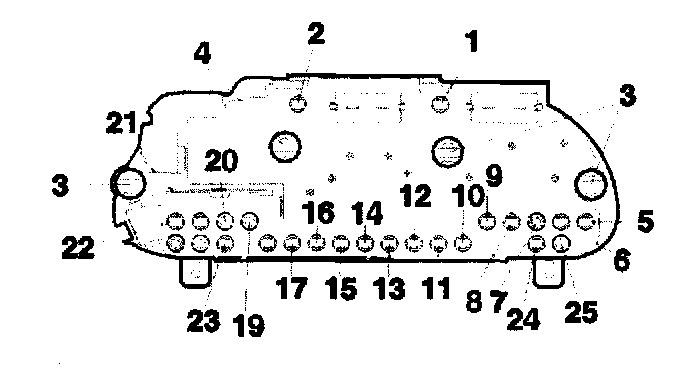

Location of lamps on the combined instrument panel







1 Left turn signal lamp
2 Right turn signal lamp
3 Trip computer
4 Fuel Level
5 Front fog lamps on
6 Fog tail lamp on
7 Auxiliary low beam lamps/Daytime running lamps on
8 Bulb defective
9 High beam on
10 ABS does not function
11 Door open
12 Parking brake applied
13 Oil pressure too low
14 Hazard warning lights on
15 SRS system (Airbag) defective
16 Warning brake system - too low level in the brake fluid reservoir
17 Generator defective - the generator (GEN) is not charging
18 Not used
19 DSA (extra equipment, not available for diesel turbo)
20 Diesel only: glow plug on
21 Fault in engine management system
22 Immobilizer function
23 Automatic transmission
24 Washer reservoir level too low
25 Trailer attached (different in different markets)
