Removal and Replacement

Replacing fog lamps

Replacing tail fog lamps
For tail fog lamps, see Replacing tail lamps (4 door) Replacing Tail Lamps (4 Door) or Replacing tail lamps (5 doors) Replacing Tail Lamps (5 Doors).

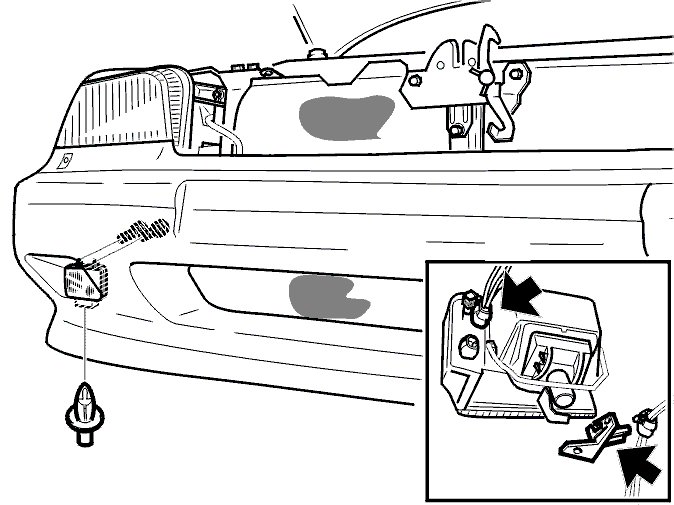

Replacing front fog lamps




- Remove the splashguard
- Disconnect the connector
- Remove the two screws in the area behind the turn signal lamp and the clip underneath
- Remove the mounting washer if necessary
- Remove the fog lamp bulb from underneath.

Adjust the fog lamp bulb

Hint: The fog lamp does not need to be adjusted. The lamp is adjusted in the factory.
