Part 1

Location of components

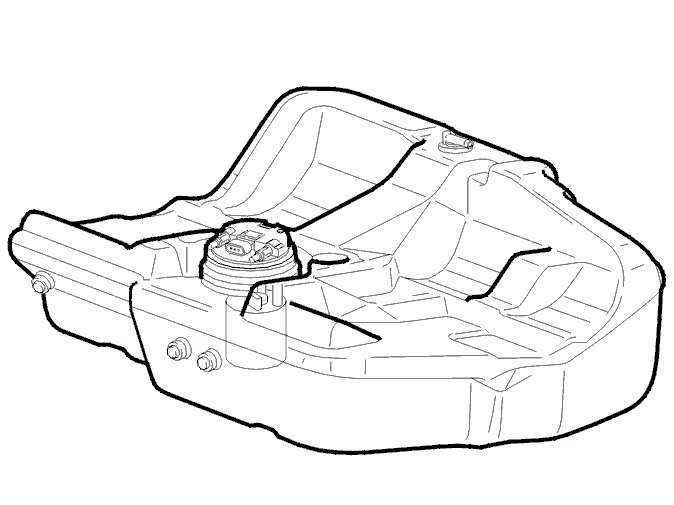

Location of Components, Fuel Pump:

Fuel pump:
in the fuel tank.

Location of Components, Fuel Filter:

Fuel filter:
by the left rear wheel.

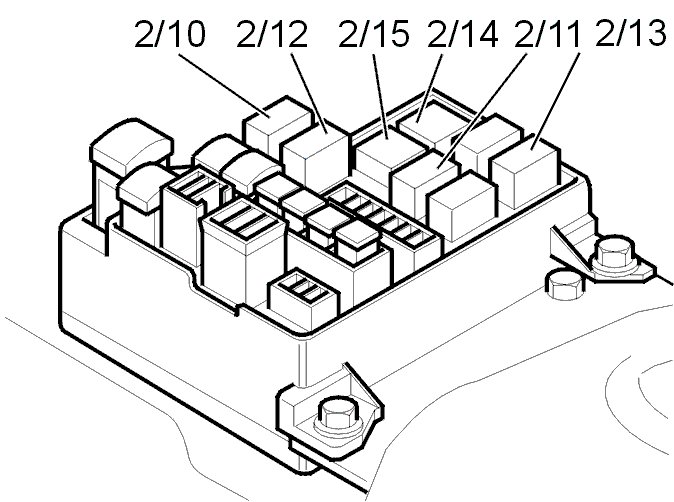

Relays and fuses:
In the integrated relay / fusebox in the engine compartment.









In the integrated relay / fusebox in the passenger compartment.

Location of Components, Engine Control Module:

Engine control module (ECM):
On the center console under the dashboard.

Location of Components DSA, Data Link Connector DLC:

Data Link Connector (DLC):
on the left-hand side of the center console (left-hand drive cars); on the right-hand side of the center console (right-hand drive cars).
