Transmission Connectors

Transmission connectors

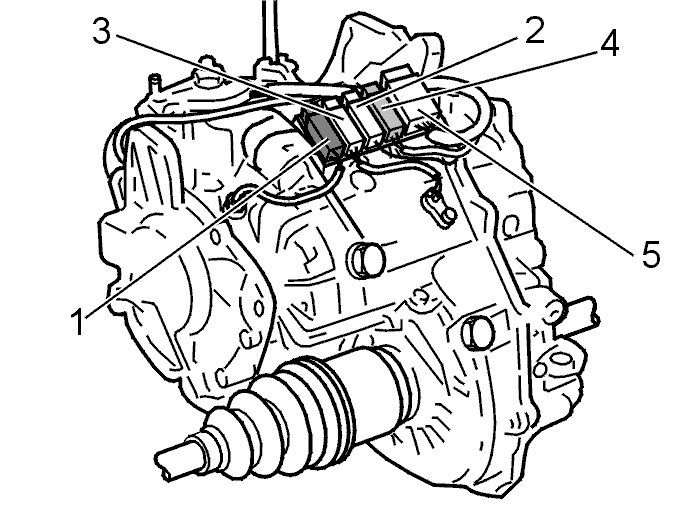

Transmission connectors (x5)




There are five connectors on a bracket mounted on the transmission mounting in the engine compartment. The transmission sensors are connected to the control system via these connectors. The connectors are "marked " and color coded. See below.
1. Engine speed (RPM) sensor
2. Oil temperature sensor
3. Vehicle speed sensor (VSS)
4. Solenoids
5. Gear-shift position sensor
The illustrations below show the connectors connected to the transmission control module (TCM) cable harness and to the car's electrical system. The transmission connectors (mounted on the bracket) are numbered in the opposite way.

The connections apply to two different engine management systems:
- EMS 2000
- Fenix.

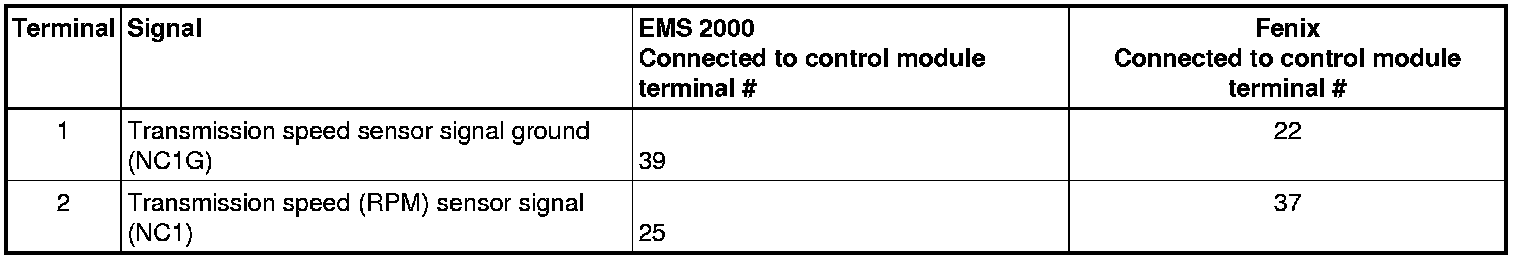

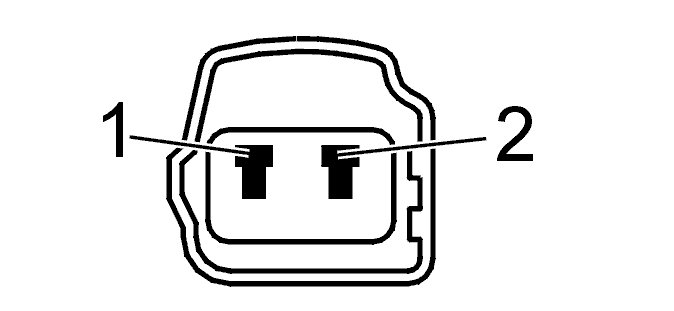

1. Engine speed (RPM) sensor
Connector, black (2-pin)

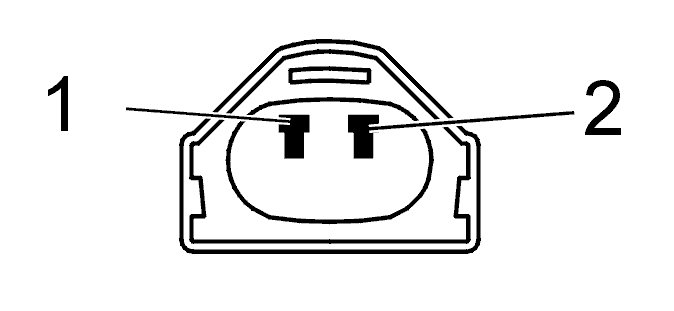

2. Oil temperature sensor
Connector, gray (2- pin)

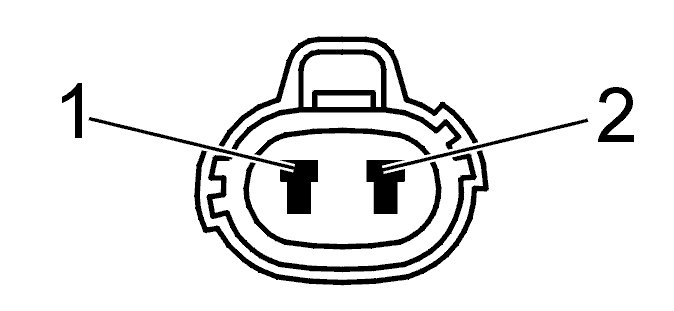

3. Vehicle speed sensor (VSS)
Connector, white (2-pin)

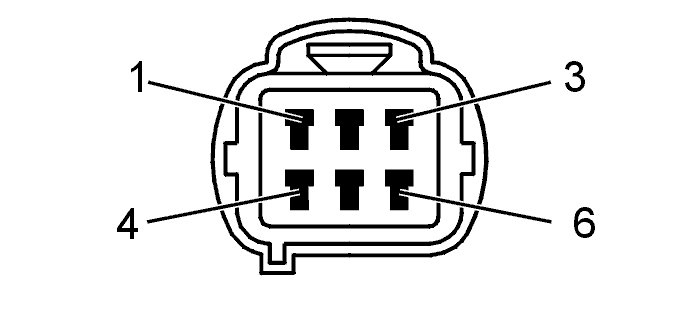

4. Solenoids
Connector, dark gray (6-pin)

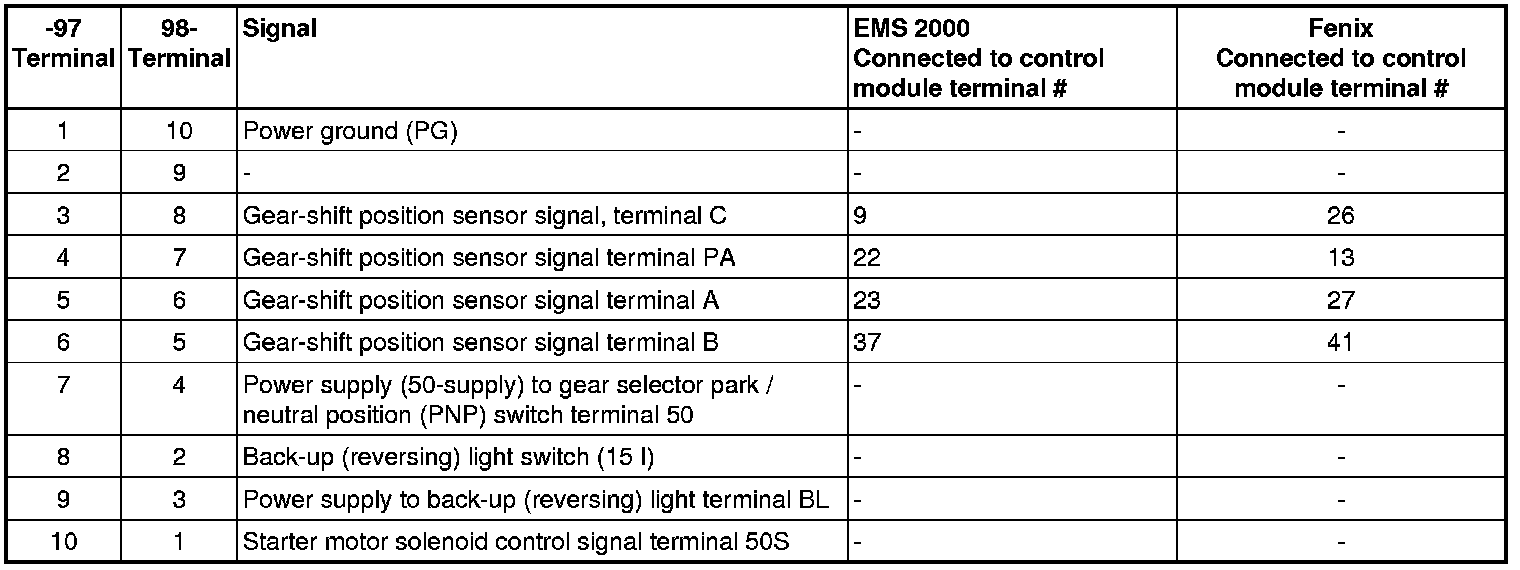

5. Gear-shift position sensor
Connector, gray (10- pin)
