Restraints and Safety Systems: Testing and Inspection

Supplementary restraint system (SRS), inspection

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Final check

Inspecting the SRS (supplemental restraint system)




The ignition must be in position II.
Connect the negative battery lead.

Note! Check that the SRS indicator lamp is not defective by turning the key to position II.

The SRS indicator lamp must light and go out after approximately 7 seconds.

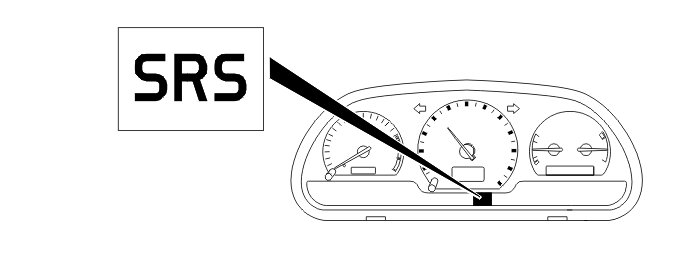

Check that the SRS indicator lamp in the combined instrument panel is not constantly lit. Fault-trace the supplementary restraint system (SRS) if the lamp is constantly lit.
