Example 2

Example 2A

Socket housings p/n 6849321-2
Replacement of cable terminal in socket housing

NOTE: For equivalent pin housing, see Example 2B.

Separate the connector pin and socket housings







If the connector is intact then first remove the socket housing (female) from the pin housing (male). See illustration.

- Undo the locking screw. (Some connectors have no locking screw).
- Turn the connector housing retaining ring (outer ring) counterclockwise.
- Separate the two halves of the connector.

Extract socket housing







Extract socket housing from the connector housing as follows:

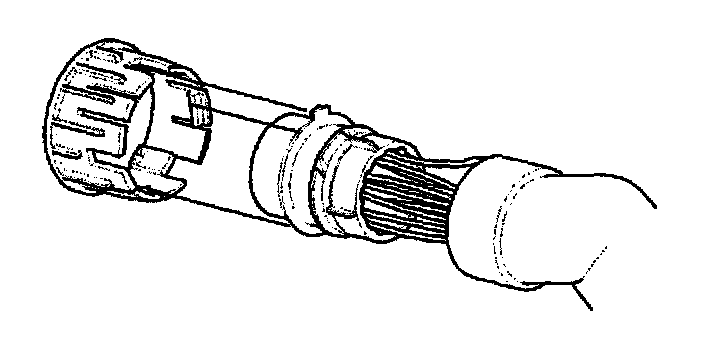

- Remove retaining ring from the connector by inserting a small screwdriver from the rear of the ring and pry open the 3 catches.
- Pull back rubber seal on the cables.

Open socket housing

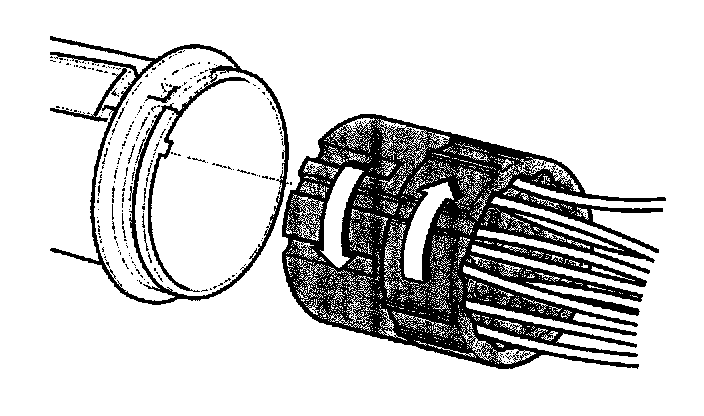

- Open the socket housing secondary locking by turning the two rings shown in the illustration. A "click" indicates that the secondary locking has disengaged.

Extract the cable terminal







No terminal removal tool is required.

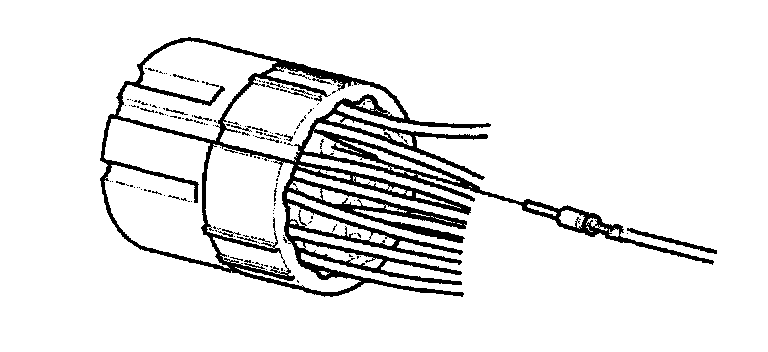

- Extract the cable terminal from the rear of the housing by tugging on the cable.

Crimp new cable terminal







The cable terminal is 1.6 Pin socket.

- Use strip length 3 to 4 mm and strip the cable as described in section Stripping a cable.

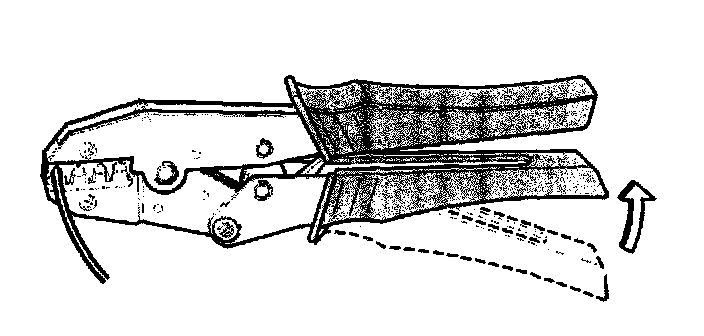

- Use crimp tool (green) pin 981 4226 and crimp the cable terminal as described in Crimping a cable terminal.

Insert new cable terminal in housing

NOTE: The housings secondary locking must be open, see (NB3).







- Insert the new cable terminal in the correct socket housing cavity from the cable side. A "click"" indicates that the catch has engaged.

Close socket housing







Secondary locking
- Activate secondary locking by Turing both the ring sections as shown in the illustration. A "click" indicates that the secondary locking has engaged.

Check
- Carefully pull on the cables to check the terminal is firmly attached.

Reassemble the connector







- Push the rubber seal on to the socket housing.
- Replace the retaining ring on the socket housing.

Example 2B

Pin type housing p/n 3545784-5
Replacement of cable terminals in pin housing

NOTE: For equivalent socket housing, see Example 2A.

Separate the pin and socket housings of the connector







If the connector is intact:

- First disconnect the socket housing from the pin housing as m Example 2A.

Open the connector







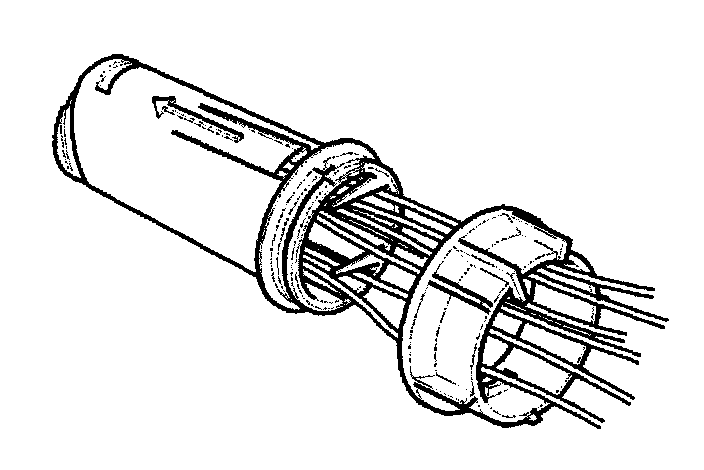

- Turn the retaining ring on the connector counterclockwise until a "click" indicates it has disengaged.
- Remove the retaining ring and pull back on the cables.
- Release the two catches on the sides using a narrow screwdriver.

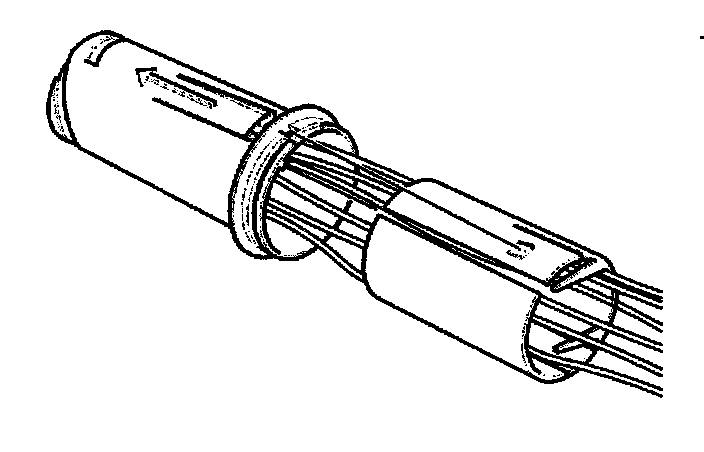

- Withdraw the inner tube and pull back on the cables.

Open the pin housing







- First remove the pin housing from the outer shell.
- Open the pin housing secondary locking by Turing the two rings as shown. A "click" indicates that the secondary locking has disengaged.

Extract the cable terminal







No terminal removal tool is required.

- Extract the cable terminal from the rear of the housing by pulling on the cable.

Crimp new cable terminal







The cable terminal is 1.6 Pin.

- use strip length 3 to 4 mm and strip the cable as described in stripping a cable.
- Use crimp tool (green) p/n 9814226 and crimp the cable terminal as described in Terminal crimping.

Insert the new cable terminal in housing







NOTE: The housing secondary locking must be open as in (NC3).

- Insert the new cable terminal in pin housing from the cable side in the correct cavity. A "click" indicates that the catch has engaged.

Close socket housings







Secondary locking
- Close the housing and activate secondary locking by turning both the ring sections as shown in the illustration. A "click" indicates that the secondary locking has engaged.

Check
- Carefully pull on the cables to check the terminal is firmly attached.

Reassemble the connector







- Insert the pin housing in the outer shell. The tab slot should be lined up with the guide groove.
- Insert the inner tube in the outer shell. Line up the slot with the guide groove. Press the inner tube firmly in so the catches engage in the correct position.







- Reinstall the retainer ring on the pin housing and turn the ring clockwise until the catch engages.
