Alignment

Wheel Alignment Specifications

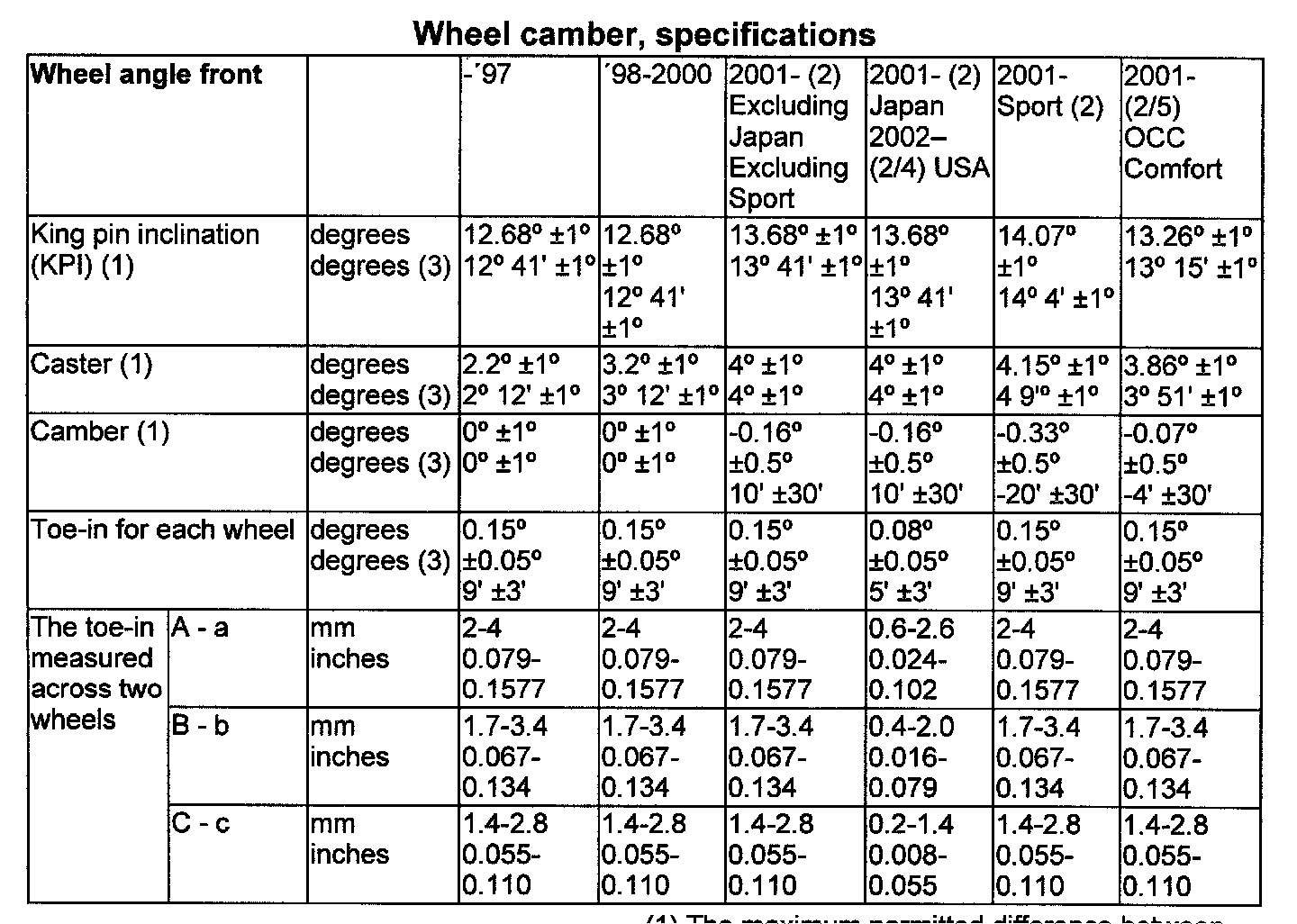

Wheel Camber Specifications - Front:

(1) The maximum permitted difference between the right and left wheels is 0.68° or 40'.

(2) Applies to 2001-, identify the chassis type.

(3) Shows the angle in degrees, minutes, and seconds.

(4) USA 2000-, must be adjusted for USA 2002-.

(5) OCC = overseas comfort chassis.

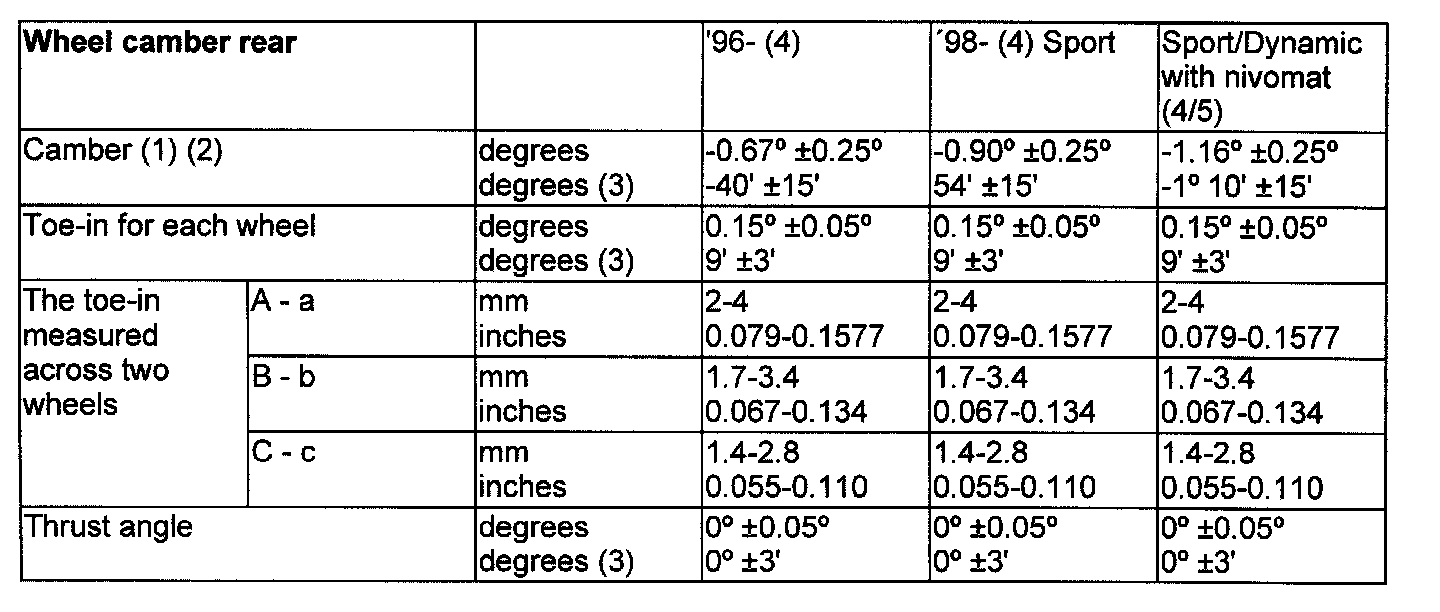

Wheel Camber Specifications - Rear:

(1) The maximum permitted difference between the right and left wheels is 0.68° or 40'.

(2) Always adjust the toe-in after adjusting the camber angle.

(3) Shows the angle in degrees, minutes, and seconds.

(4) Applies to 2001-, identify the chassis type.

(5) Adjust cars with sport or dynamic chassis equipped with nivomat to these values.
