S80 2.9 L6-2.9L VIN 94 B6294S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>

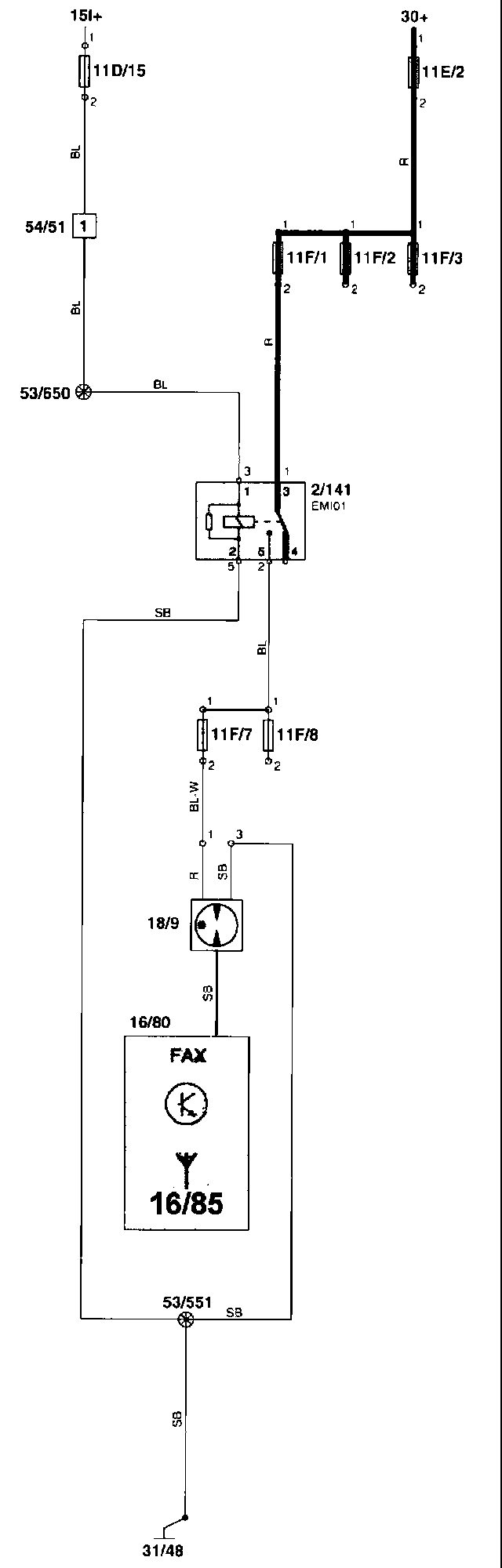

System Diagram
System Diagram
Fax:
Diagram Legend,
Diagram Legend
