Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2000
>>
S80 2.9 L6-2.9L VIN 94 B6294S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ABS Brake System and STC
ABS Brake System and STC

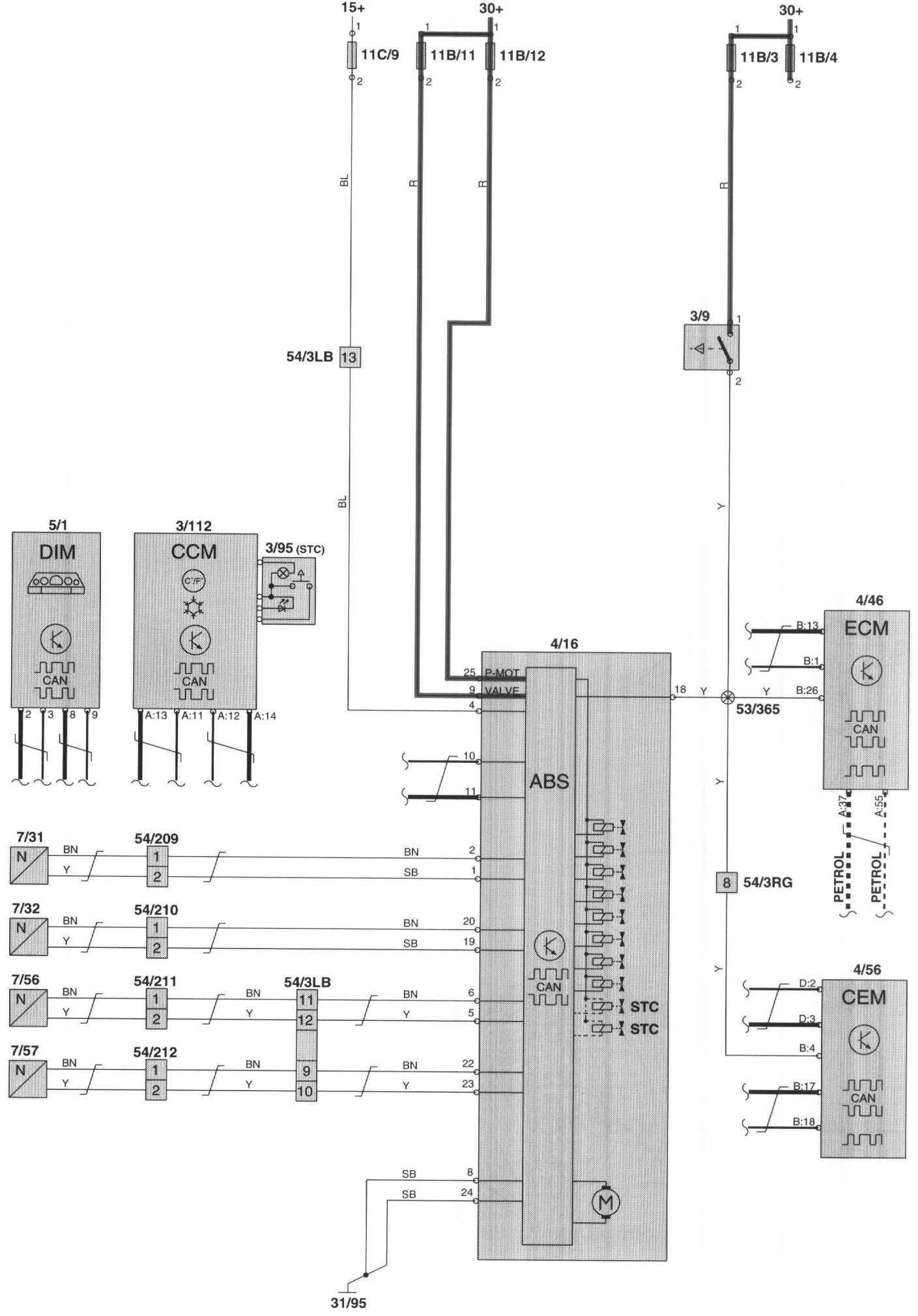

ABS With STC - Wiring Diagram:
ABS With STC - Component Location:
