Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

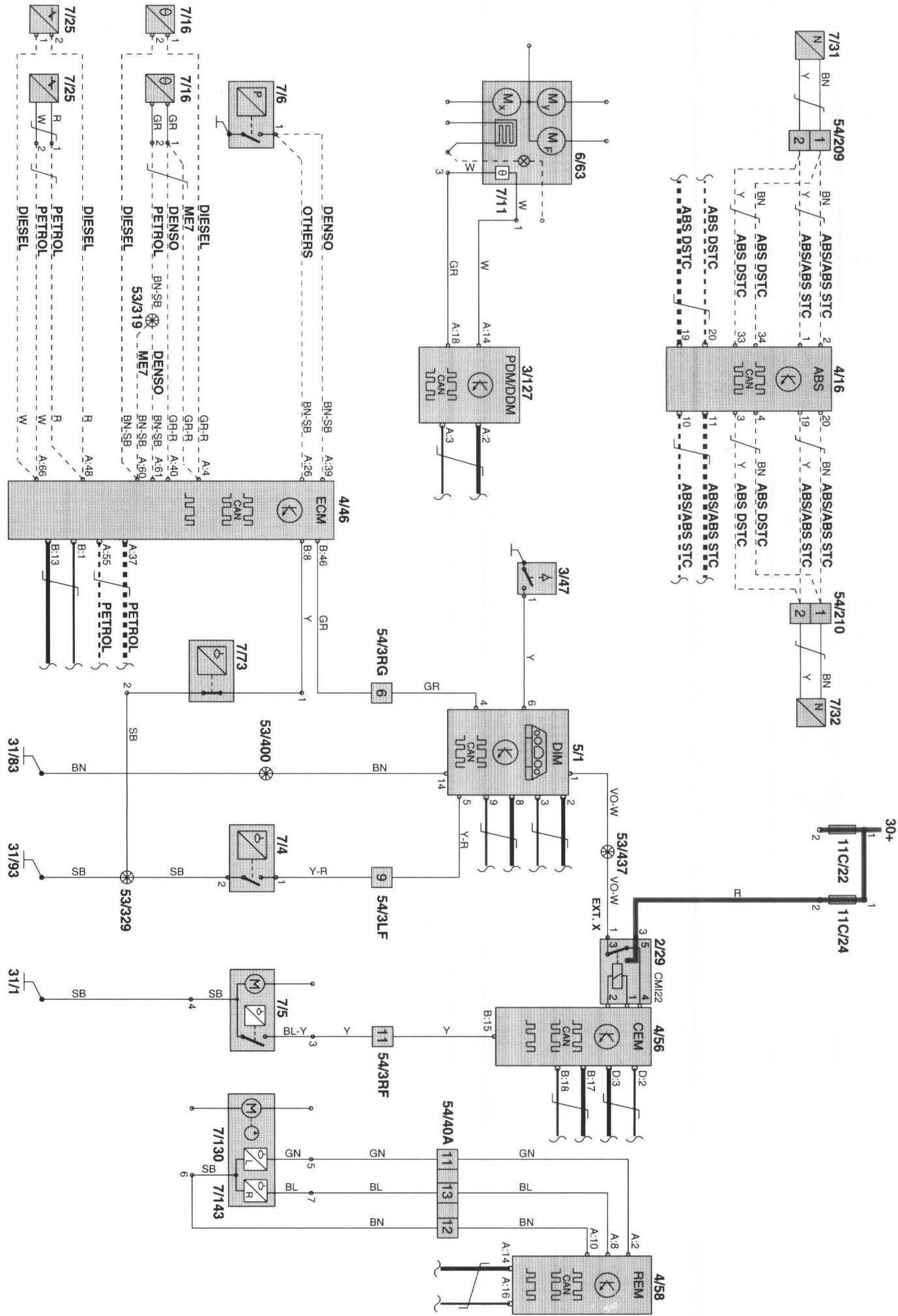

Wiring Diagram:

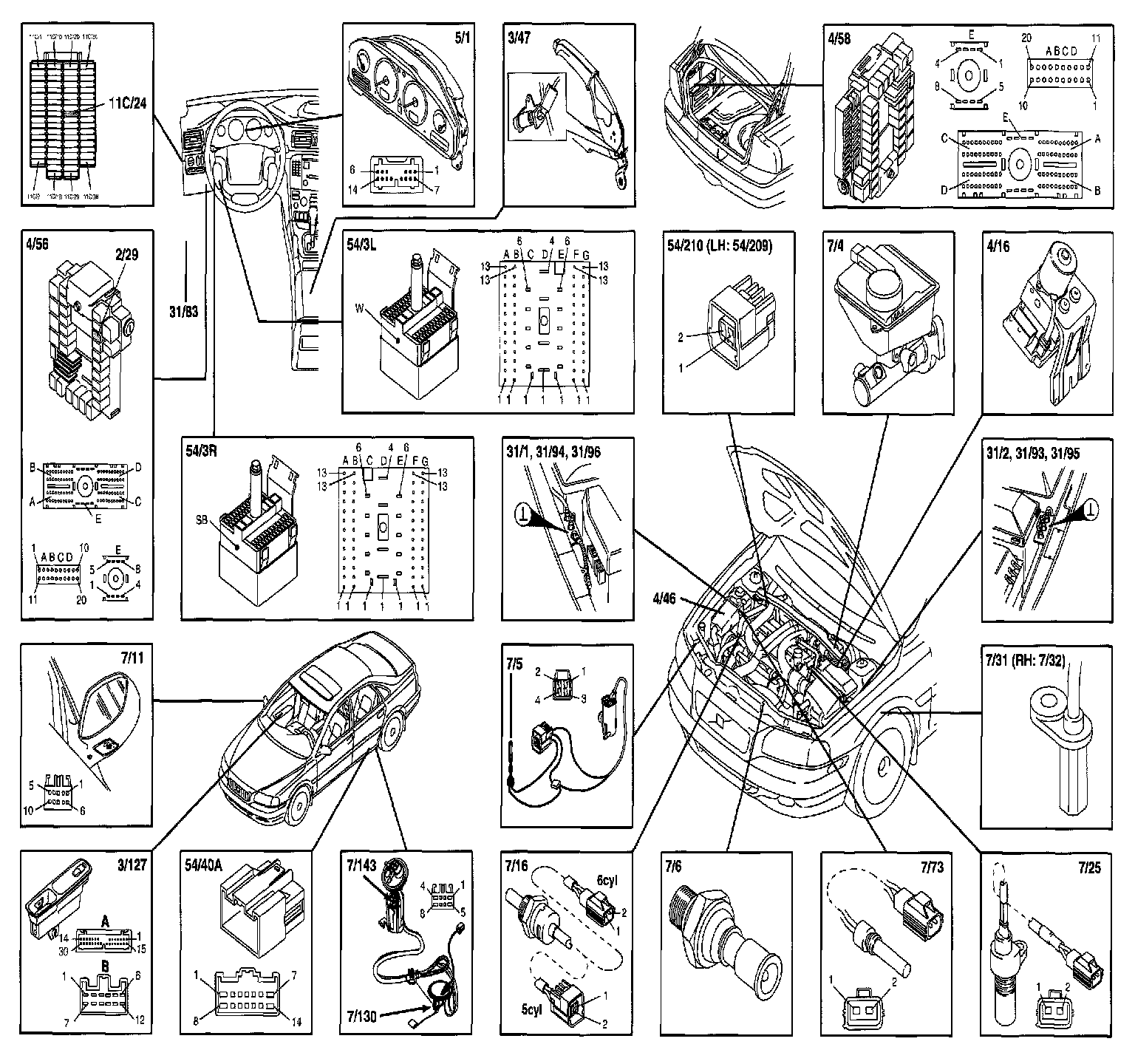

Component Location:
