Tail Lamp

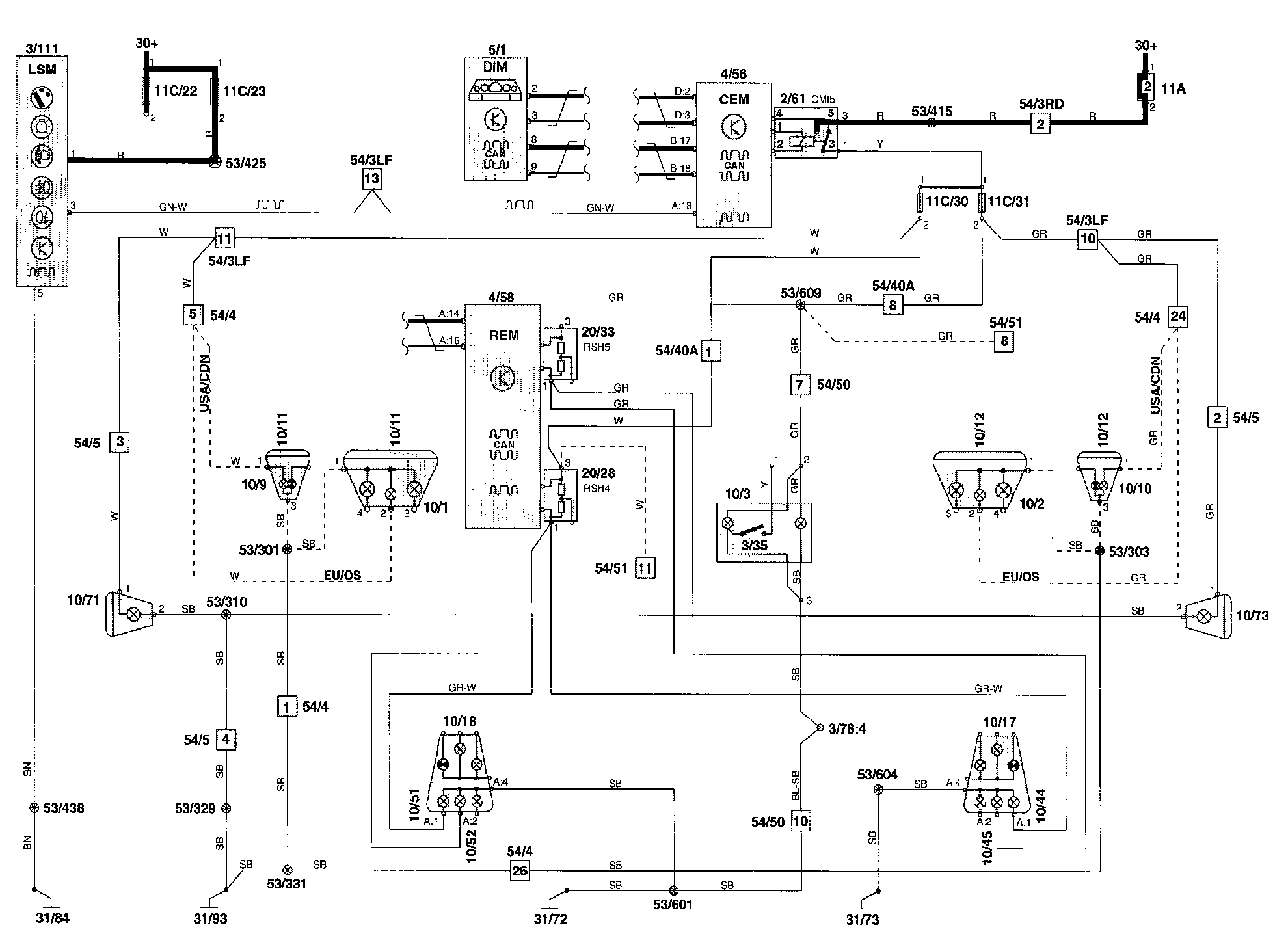

Wiring Diagram:

Wiring Diagram

Component Locations:

Component Location

Component I.D. List
2/61 Relay Parking Lamps
3/35 Trunk Lid Handle Switch
3/111 Electrical Switch Module Lights (LSM)
4/56 Central Electronic Module (CEM)
4/58 Rear Electronic Module (REM)
5/1 Combined Instrument Panel (DIM)
10/1 Left Headlamp
10/2 Right Headlamp
10/3 License Plate Lighting
10/9 Left Front Turn Signal Lamp
10/10 Right Front Turn Signal Lamp
10/17 Right Tail Light
10/18 Left Tail Light
10/71 Side Marker Lamps Left Front
10/73 Side Marker Lamps Right Front
11A/1-8 Main Fuses In The Integrated Relay/fusebox Engine Compartment
11C/1-38 Fuses In Fusebox Passenger Compartment
20/28 Shunt Parking Lamps REM
20/33 Shunt Position- / Tail Lamps REM
31/72 Ground Terminal Rear Seat Support Left Side 2
31/73 Ground Terminal Rear Seat Support Right Side 2
31/84 Ground Terminal Right-hand Side A Post
31/93 Ground Terminal Left Wheel Arch
54/3L Multi-connector In-car Harness - Engine Compartment Harness
54/3R Multi-connector In-car Harness - Engine Compartment Harness
54/4 Connector 28-pin Engine Compartment Harness - Dashboard Harness)
54/5 Connector, 4-pin Engine Compartment Harness - Soft Front Harness
54/40A Connector, 14-pin Passenger Compartment Harness - Cargo Compartment Cable Harness
54/50 Connector, 10-pin Cargo Compartment Cable Harness - Trunk Lid Cable Harness
54/51 Connector, 13-pin Cargo Compartment Harness - Tow Hitch
