Underhood Lamp

Wiring Diagram:

Wiring Diagram

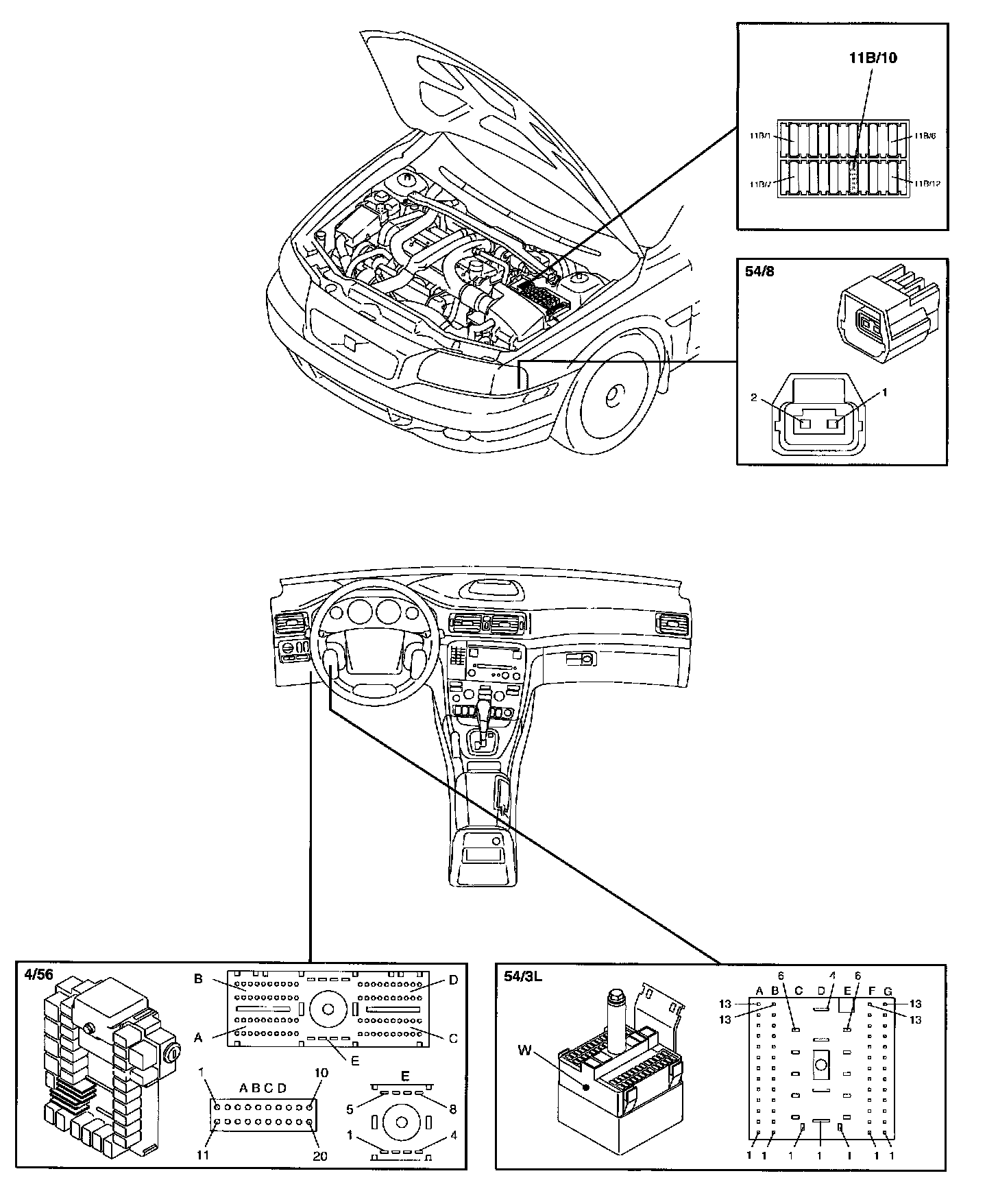

Component Locations:

Component Location

Component I.D. List
4/56 Central electronic module (CEM)
11B/1-21 Fuses in the relay/fusebox engine compartment
54/3L Multi-connector In-car harness - Engine compartment harness
54/8 Connector, 2-pin Engine compartment cable harness - auxiliary lamps
