Power Door Mirror

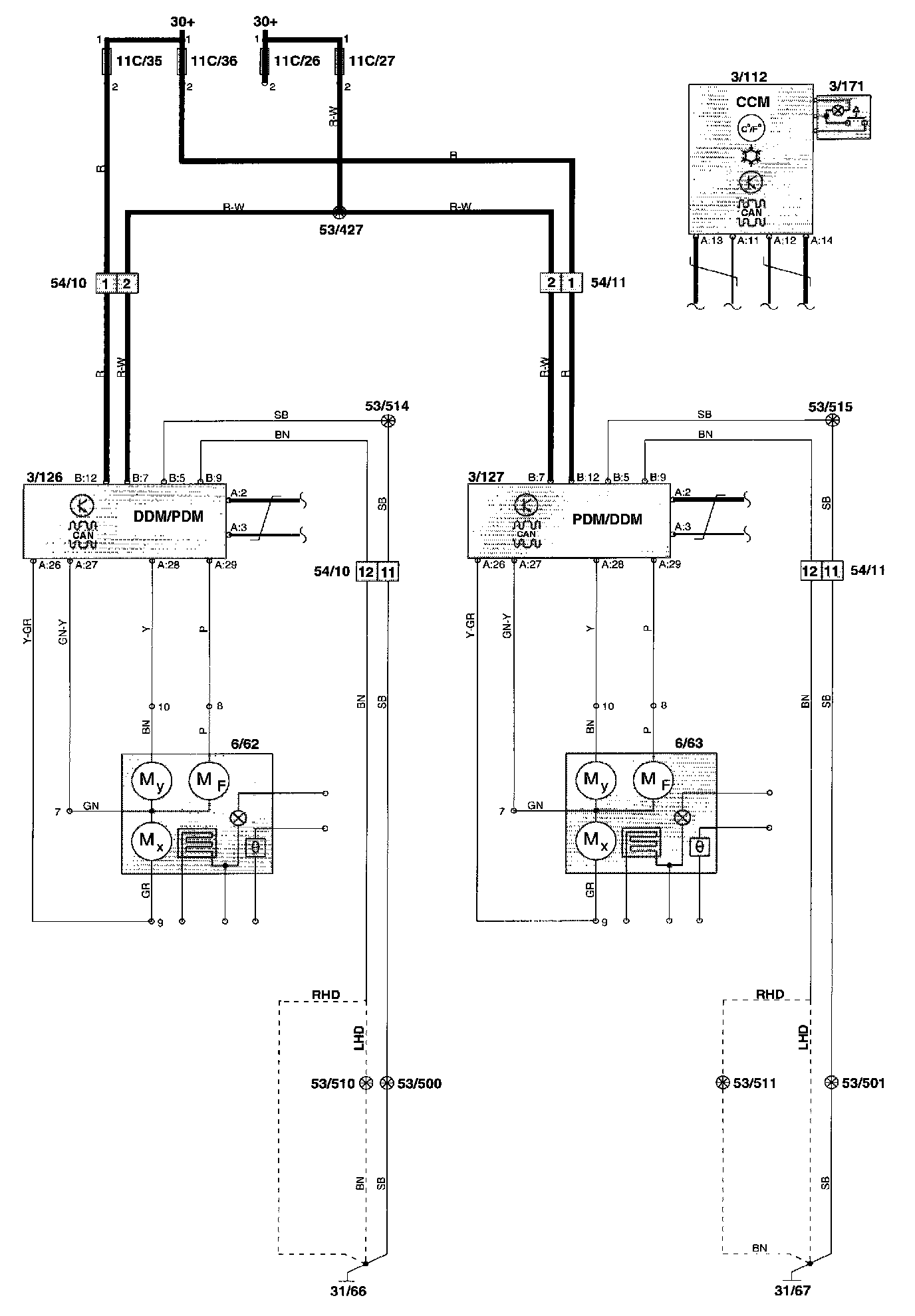

Wiring Diagram







Component Location

Component I.D. List
3/112 Electrical Switch Module Climate Control (CCM)
3/126 Electrical Module Left Front Door (DDM/PDM)
3/127 Electrical Module Right Front Door (PDM/DDM)
3/171 Switch Folding Power Door Mirrors
6/62 Left Power Door Mirror
6/63 Right Power Door Mirror
11C/1-38 Fuses In Fusebox Passenger Compartment
31/66 Ground Terminal Front Seat Support Left-hand Side
31/67 Ground Terminal Front Seat Support Right-hand Side
54/10 Connector, 12-pin Passenger Compartment Harness - Left Rear Door Harness)
54/11 Connector, 12-pin Passenger Compartment Harness - Right Front Door Harness)
