Radiator Cooling Fan
>>
System Diagram
System Diagram

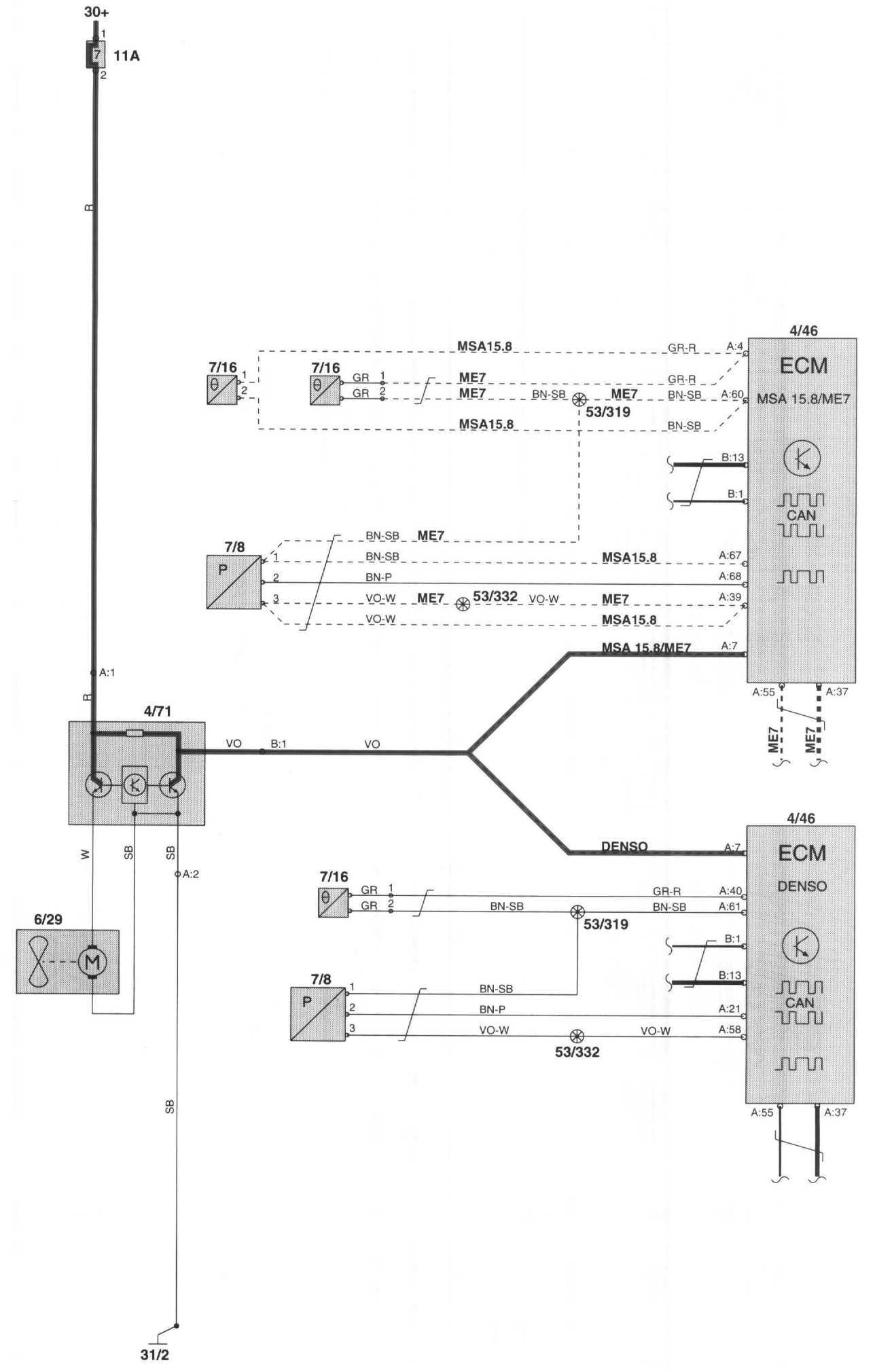

Engine Cooling Fan - Wiring Diagram:

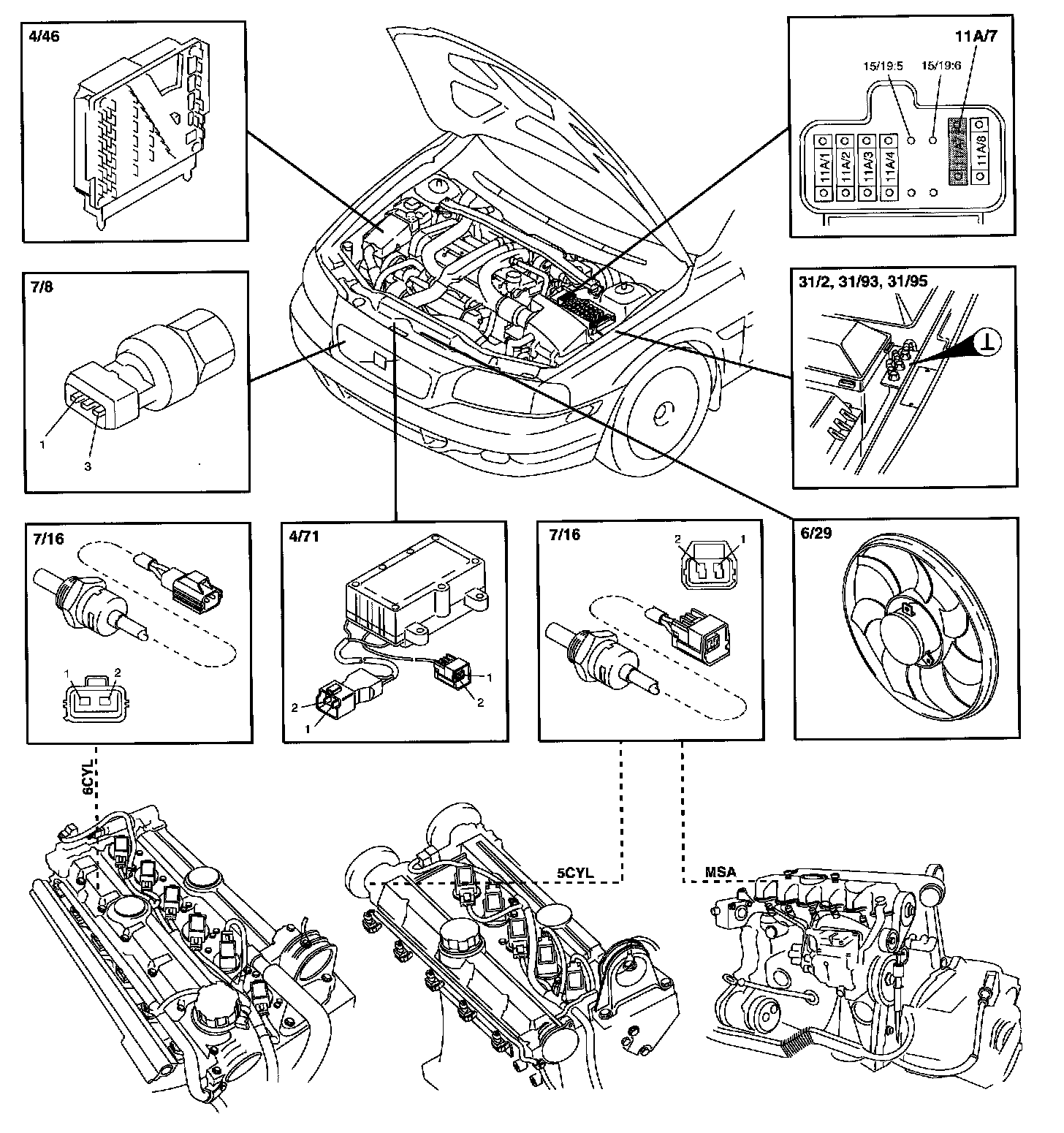

Engine Cooling Fan - Component Location:
