Head Rest

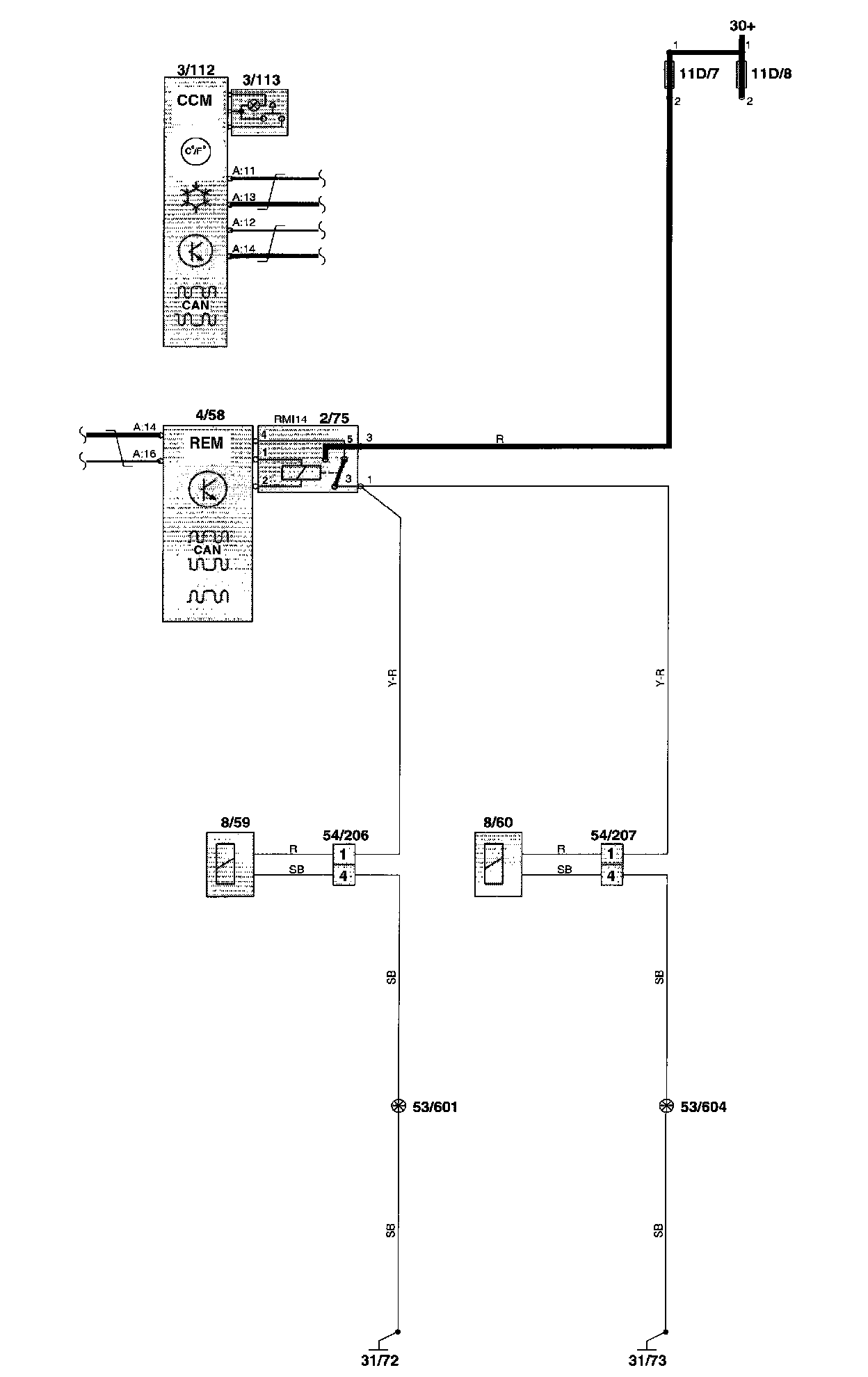

Wiring Diagram

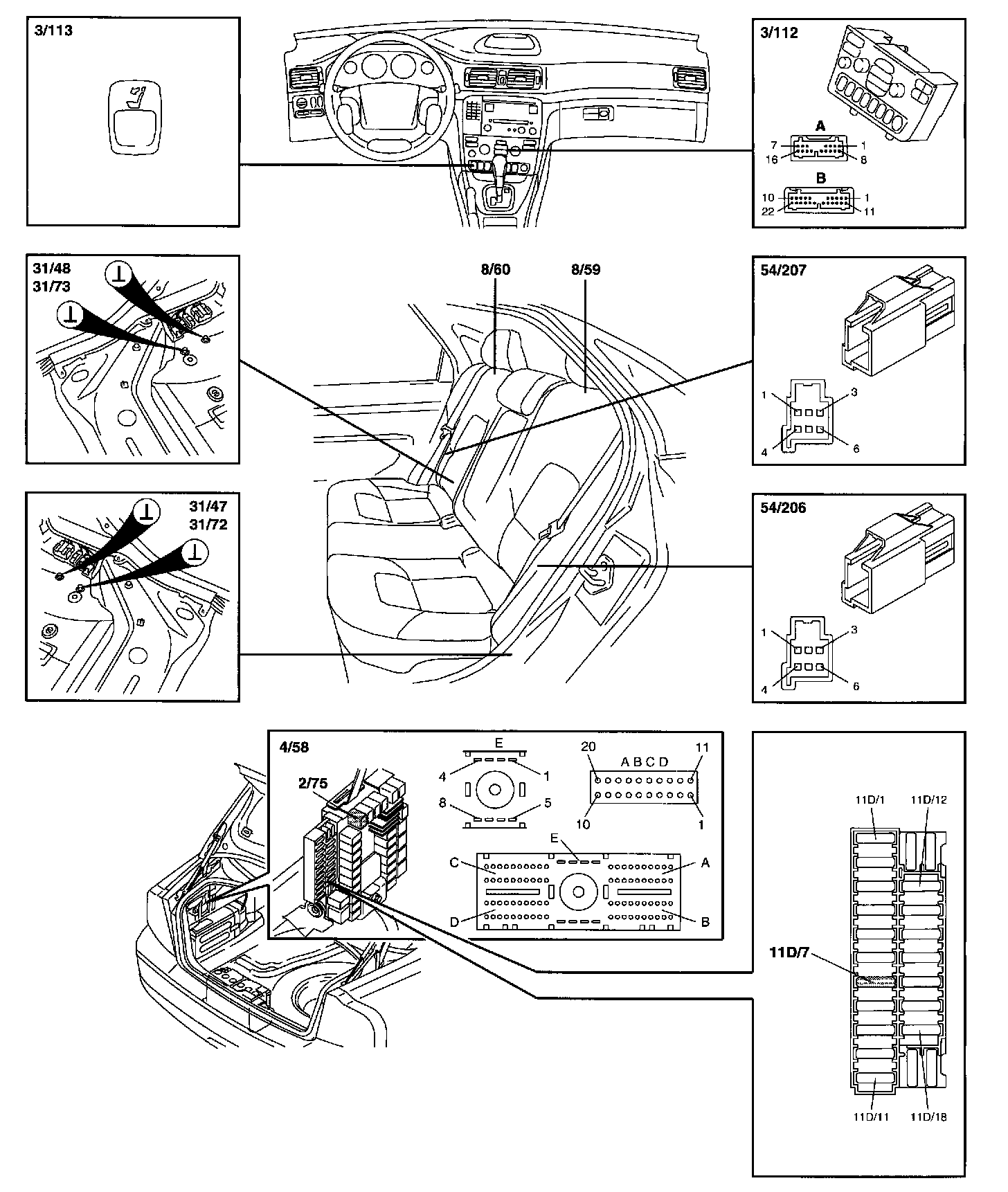

Component Location

Component I.D. List
2/75 Relay folding head restraint rear
3/112 Electrical switch module climate control (CCM)
3/113 Switch folding head restraint rear
4/58 Rear electronic module (REM)
11D1-18 Fuses in the relay/fusebox cargo compartment
31/47 Ground terminal rear seat support left side 1
31/48 Ground terminal rear seat support right side 1
31/72 Ground terminal rear seat support left side 2
31/73 Ground terminal rear seat support right side 2
8/59 Solenoid head restraint left rear
8/60 Solenoid head restraint right rear
54/206 Connector, 6-pin Cargo compartment harness solenoid left head restraint
54/207 Connector, 6-pin Cargo compartment harness solenoid right head restraint
