Steering

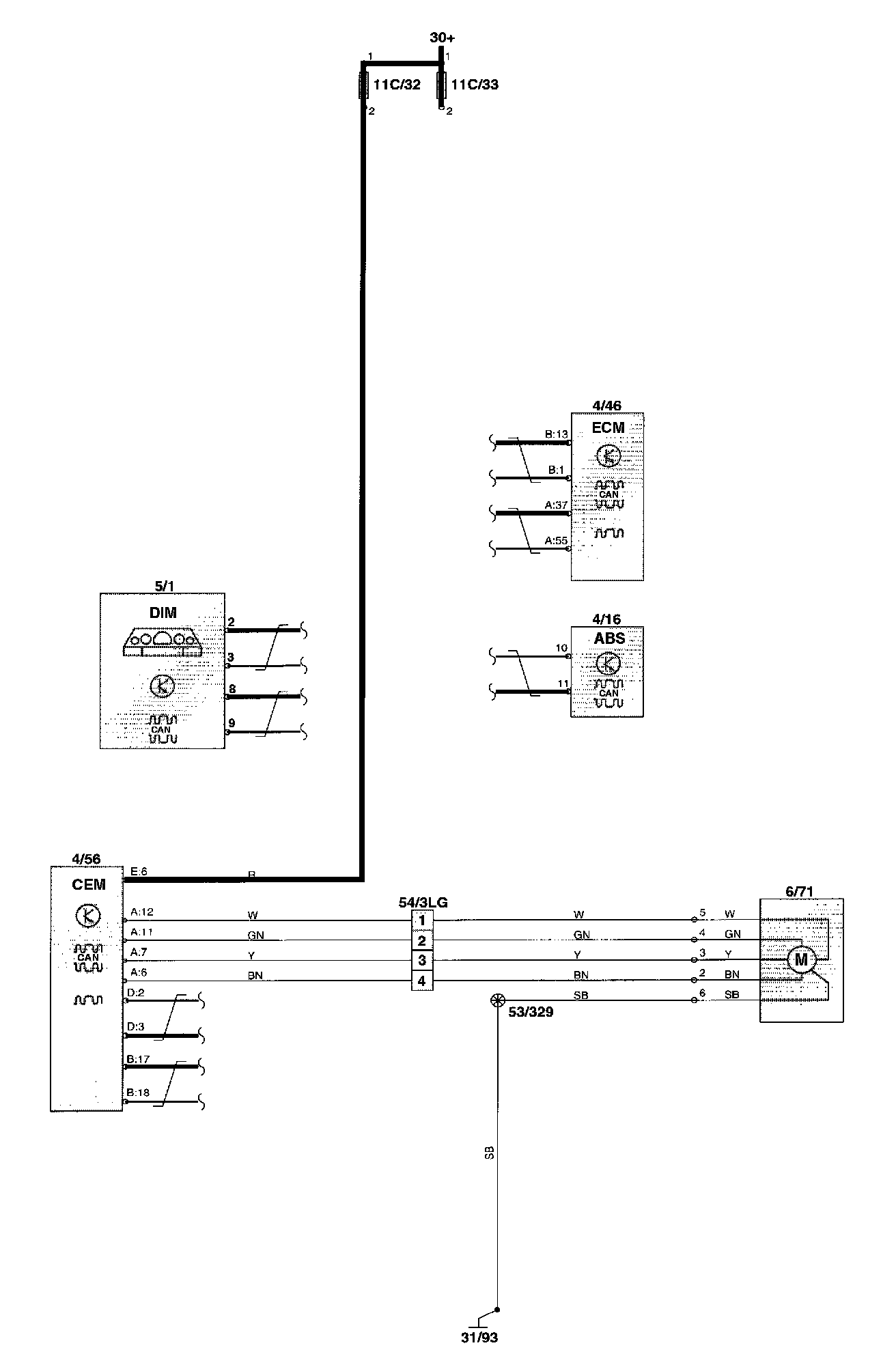

Wiring Diagram

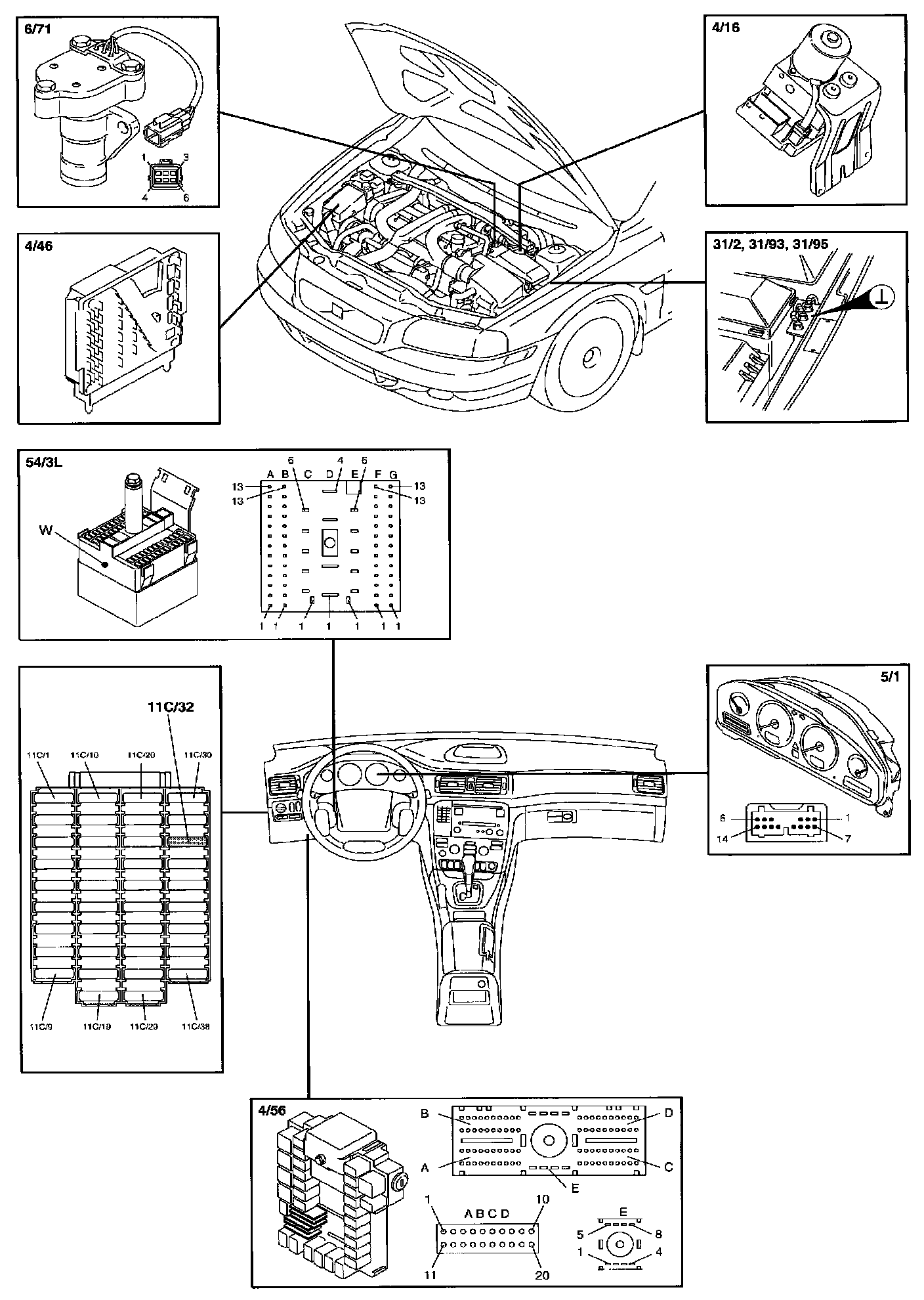

Component Location

Component I.D. List
4/16 ABS Control Module
4/46 Engine Control Module (ECM)
4/56 Central Electronic Module (CEM)
5/1 Combined Instrument Panel (DIM)
6/71 Stepper Motor Speed Related Power Steering
11C/1-38 Fuses In Fusebox Passenger Compartment
31/2 Ground Terminal Left Wheel Arch
31/93 Ground Terminal Left Wheel Arch
31/95 Ground Terminal Left Wheel Arch
54/3L Multi-connector In-car Harness - Engine Compartment Harness
