Home
>>
Volvo
>>
2000
>>
S80 2.9 L6-2.9L VIN 94 B6294S
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Executive Model
Executive Model

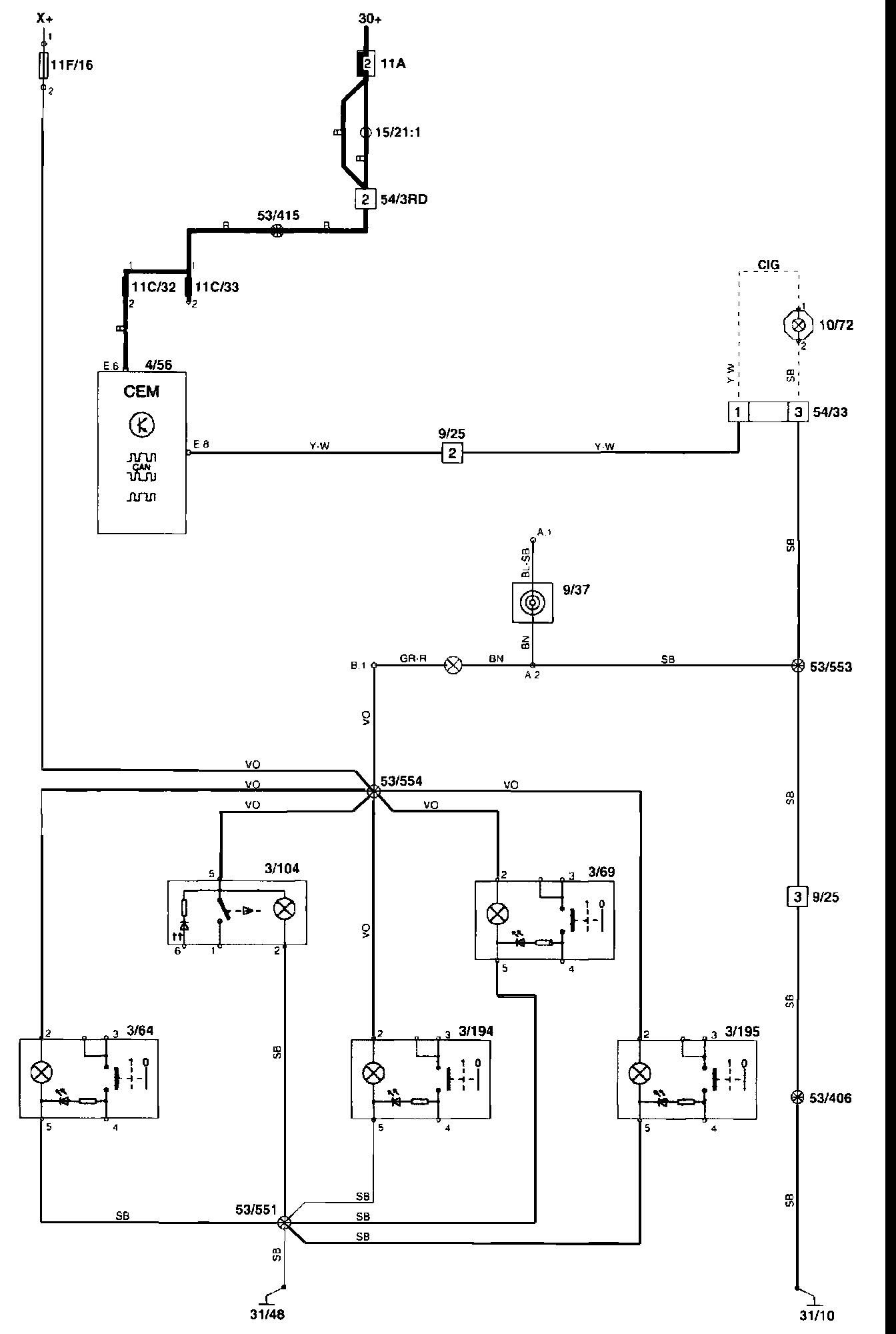

Instrument And Control Lighting:
Diagram Legend,
Diagram Legend
