Adjustment of Light Propagation

Adjustment of light propagation

Adjustment

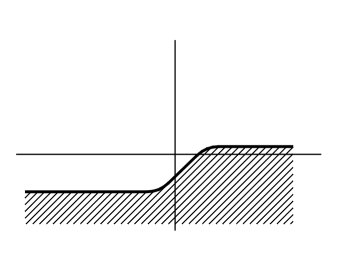

Warning! Always adjust the light propagation according to the local law.




- Ignition and low beam on.
- Check the amperage so there are enough current for correct light propagation.
- Undo the cap, over the adjusting screw for the light propagation laterally (X), by drawing upwards.
Caution! Always adjust the light propagation with low beam on.




- Adjust the light propagation in vertical height (Y) by using a socket screw, see the picture.
- Adjust the light propagation laterally (X) by using a socket screw.
Hint: Use socket screw - 6 mm.

Warning! Always adjust the light propagation according to the local law.
