Electrical Diagrams

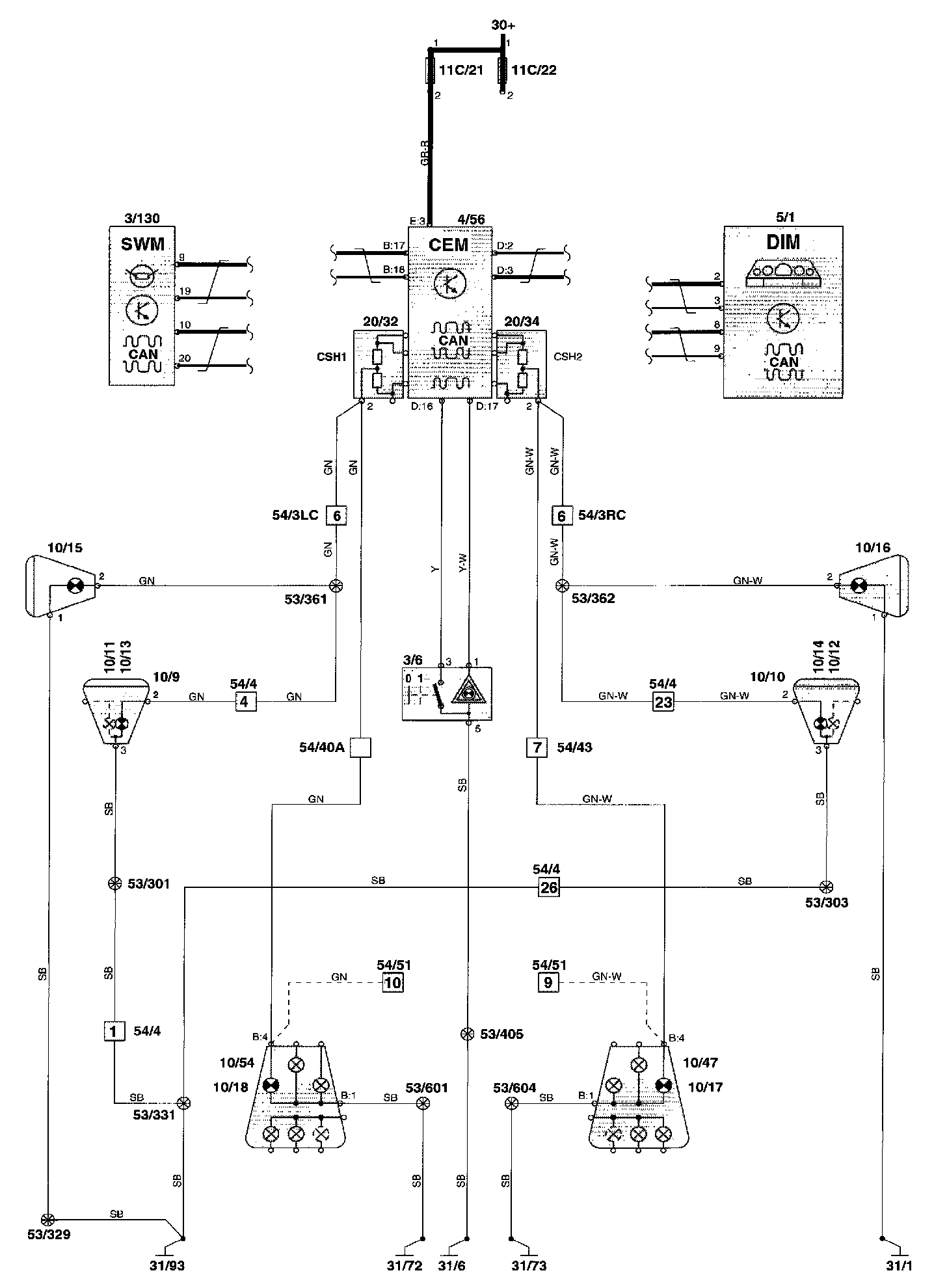

Wiring Diagram:

Wiring Diagram

Component Locations:

Component Location

Component I.D. List
3/6 Hazard Warning Signal Flasher Switch
3/130 Electrical Switch Module Steering Wheel Levers (SWM)
4/56 Central Electronic Module (CEM)
5/1 Combined Instrument Panel (DIM)
10/9 Left Front Turn Signal Lamp
10/10 Right Front Turn Signal Lamp
10/15 Left Side Turn Signal Flasher
10/16 Right Side Flasher Light
10/17 Right Tail Light
10/18 Left Tail Light
11C/1-38 Fuses In Fusebox Passenger Compartment
20/32 Shunt Left Turn Signal Lamp CEM
20/34 Shunt Right Turn Signal Lamp CEM
31/1 Ground Terminal Right Wheel Arch
31/2 Ground Terminal Left Wheel Arch
31/6 Ground Terminal Left-hand Side A Post
31/72 Ground Terminal Rear Seat Support Left Side 2
31/73 Ground Terminal Rear Seat Support Right Side 2
31/83 Ground Terminal Left-hand Side A Post
31/93 Ground Terminal Left Wheel Arch
31/94 Ground Terminal Right Wheel Arch
31/95 Ground Terminal Left Wheel Arch
31/96 Ground Terminal Right Wheel Arch
54/3L Multi-connector In-car Harness - Engine Compartment Harness
54/3R Multi-connector In-car Harness - Engine Compartment Harness
54/4 Connector 28-pin Engine Compartment Harness - Dashboard Harness)
54/40A Connector, 14-pin Passenger Compartment Harness - Cargo Compartment Cable Harness
54/43 Connector, 14-pin Passenger Compartment Harness - Cargo Compartment Cable Harness
54/51 Connector, 13-pin Cargo Compartment Harness - Tow Hitch
