Diagnostics - DLC Connector

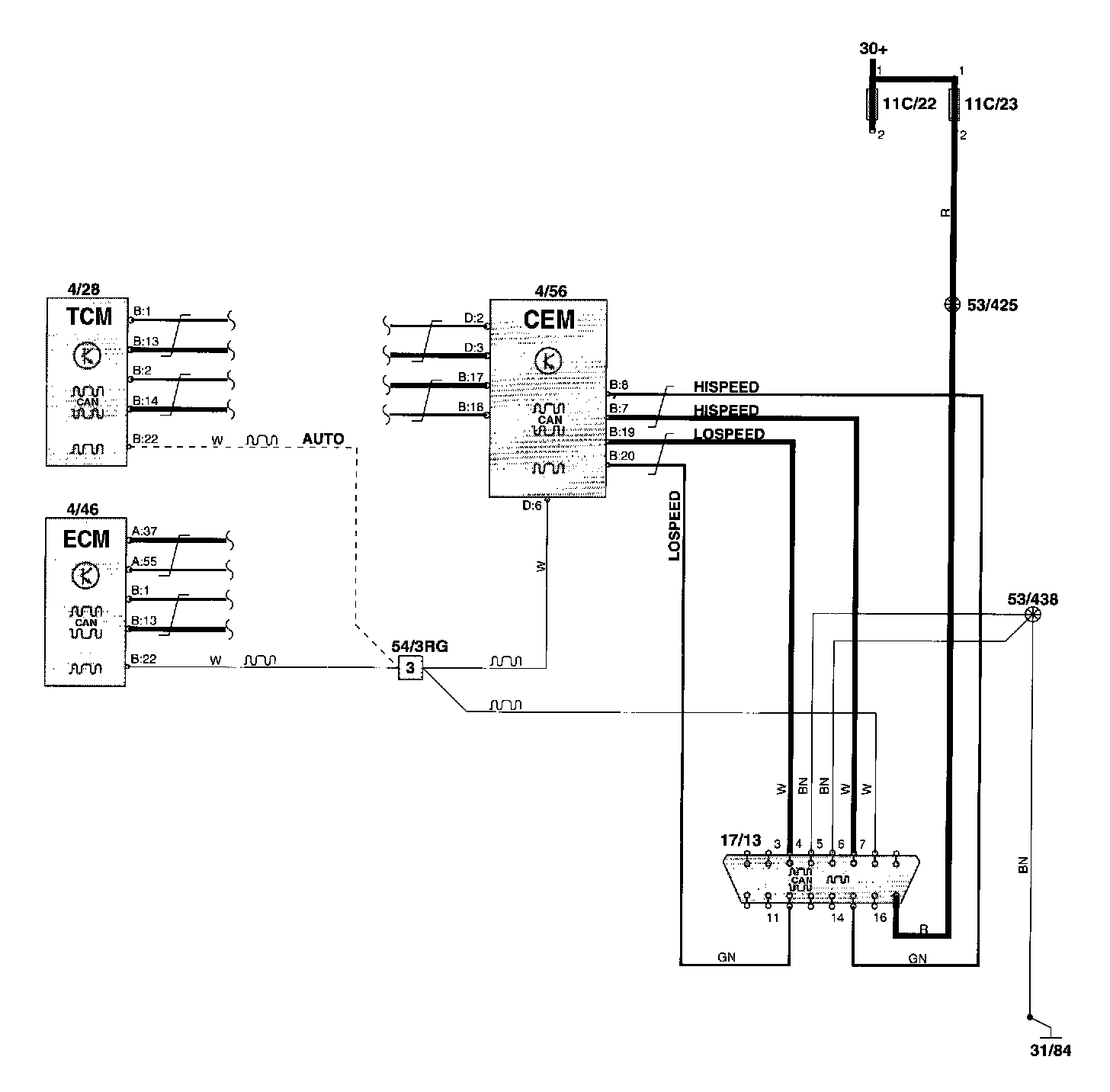

Wiring Diagram

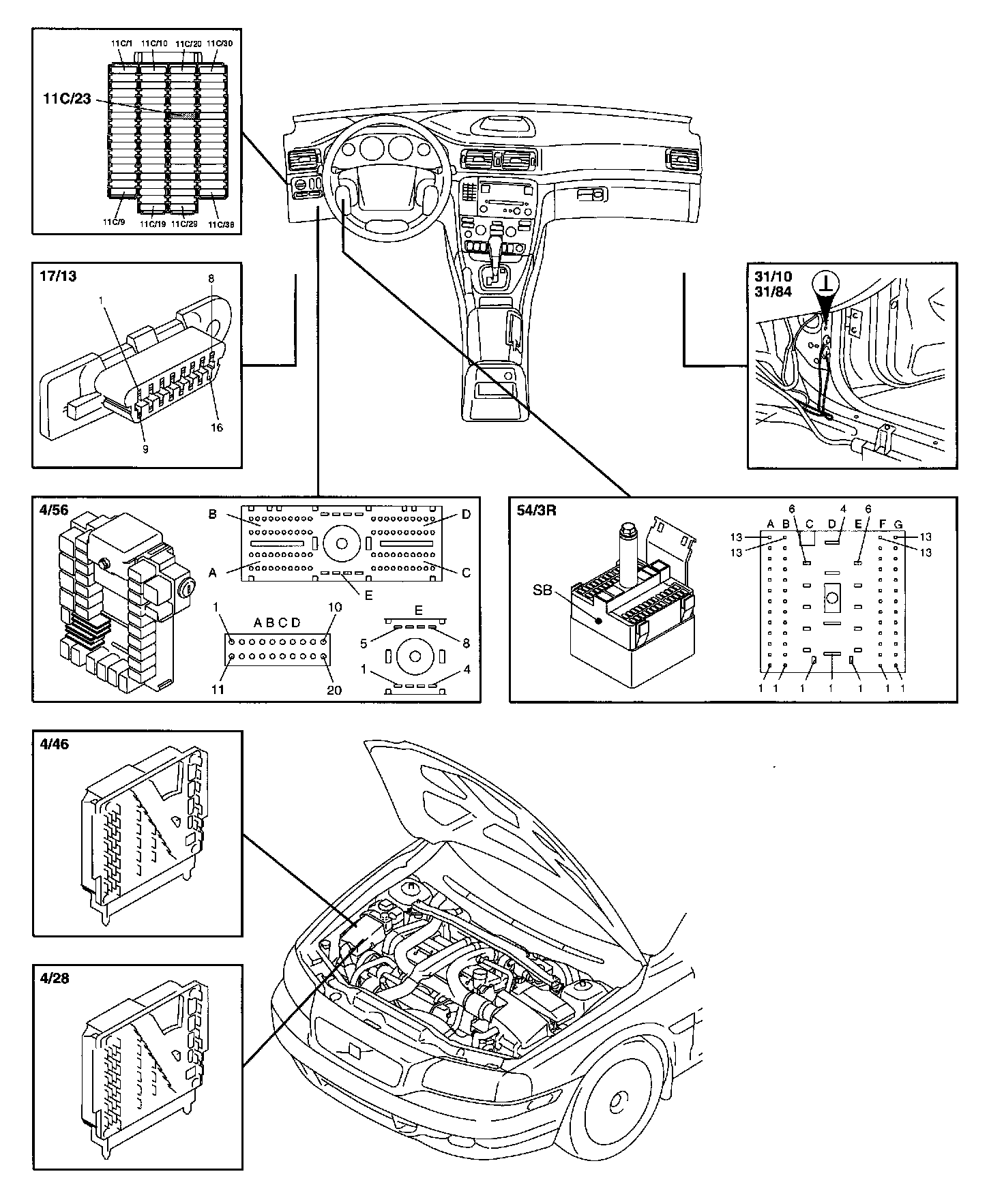

Component Location

Component I.D. List
4/28 Transmission Control Module (TCM)
4/46 Engine Control Module (ECM)
4/56 Central Electronic Module (CEM)
11C/1-38 Fuses In Fusebox Passenger Compartment
17/13 Data Link Connector (DLC)
31/10 Ground Terminal Right-hand Side A Post
31/84 Ground Terminal Right-hand Side A Post
54/3R Multi-connector In-car Harness - Engine Compartment Harness
