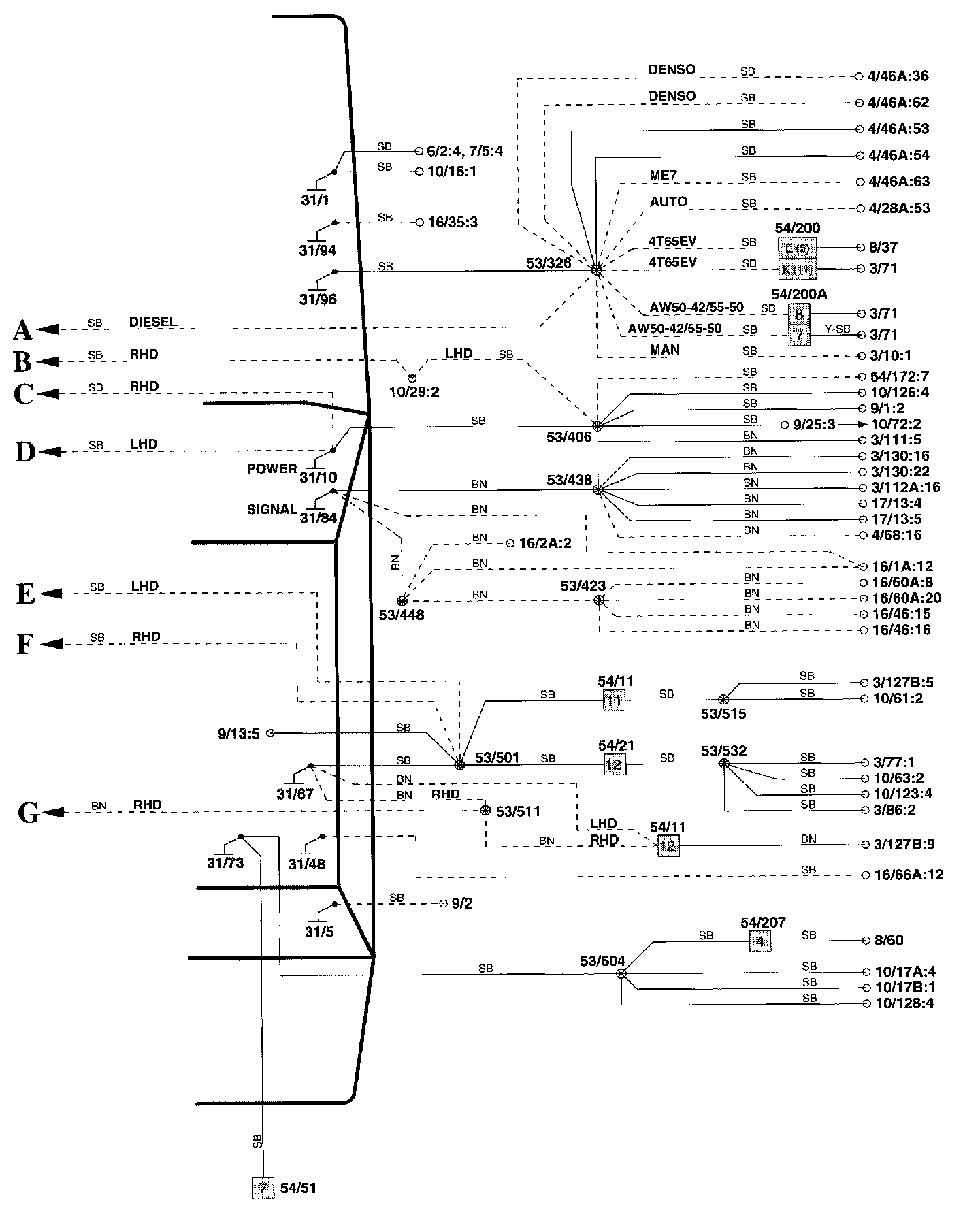

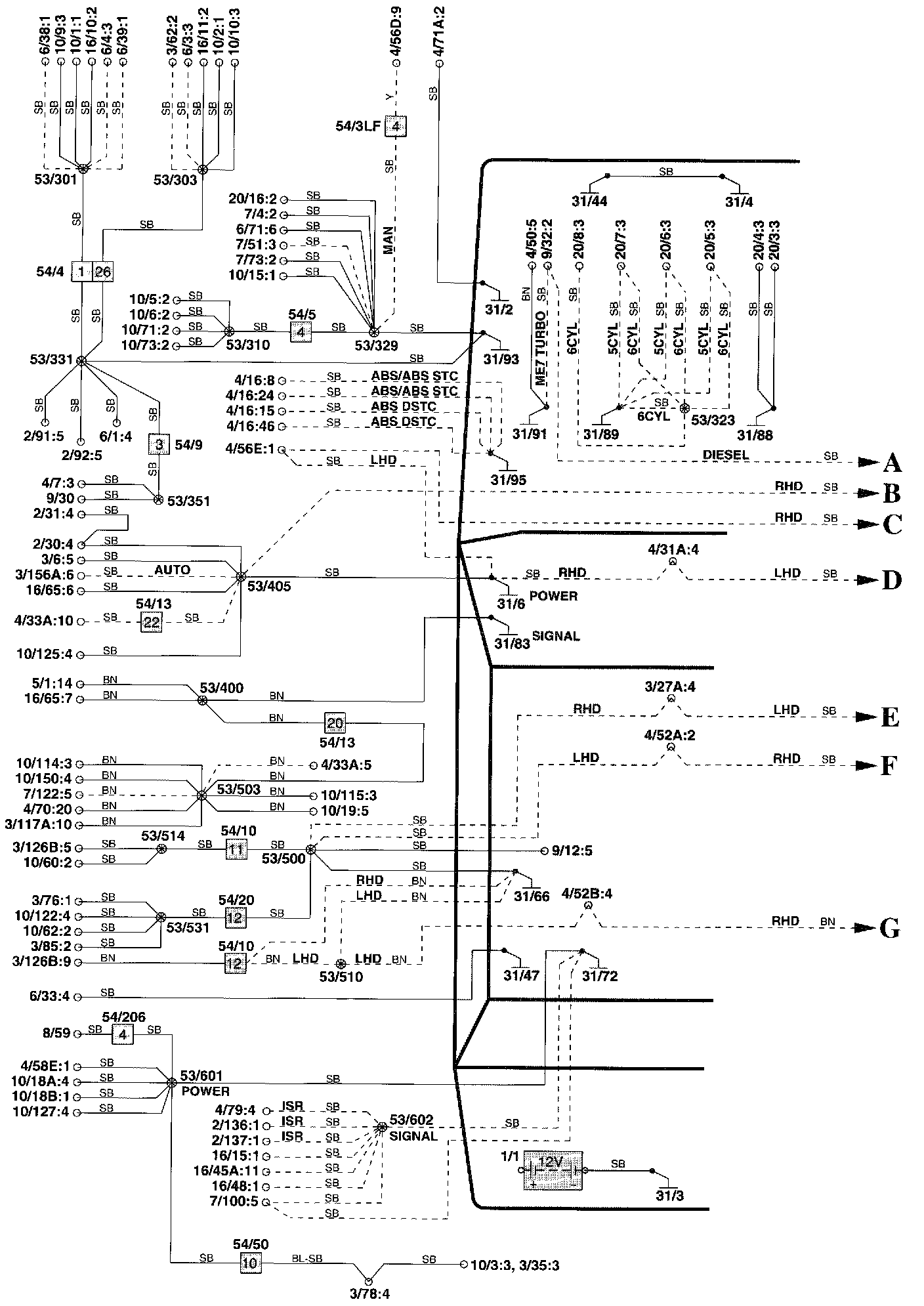

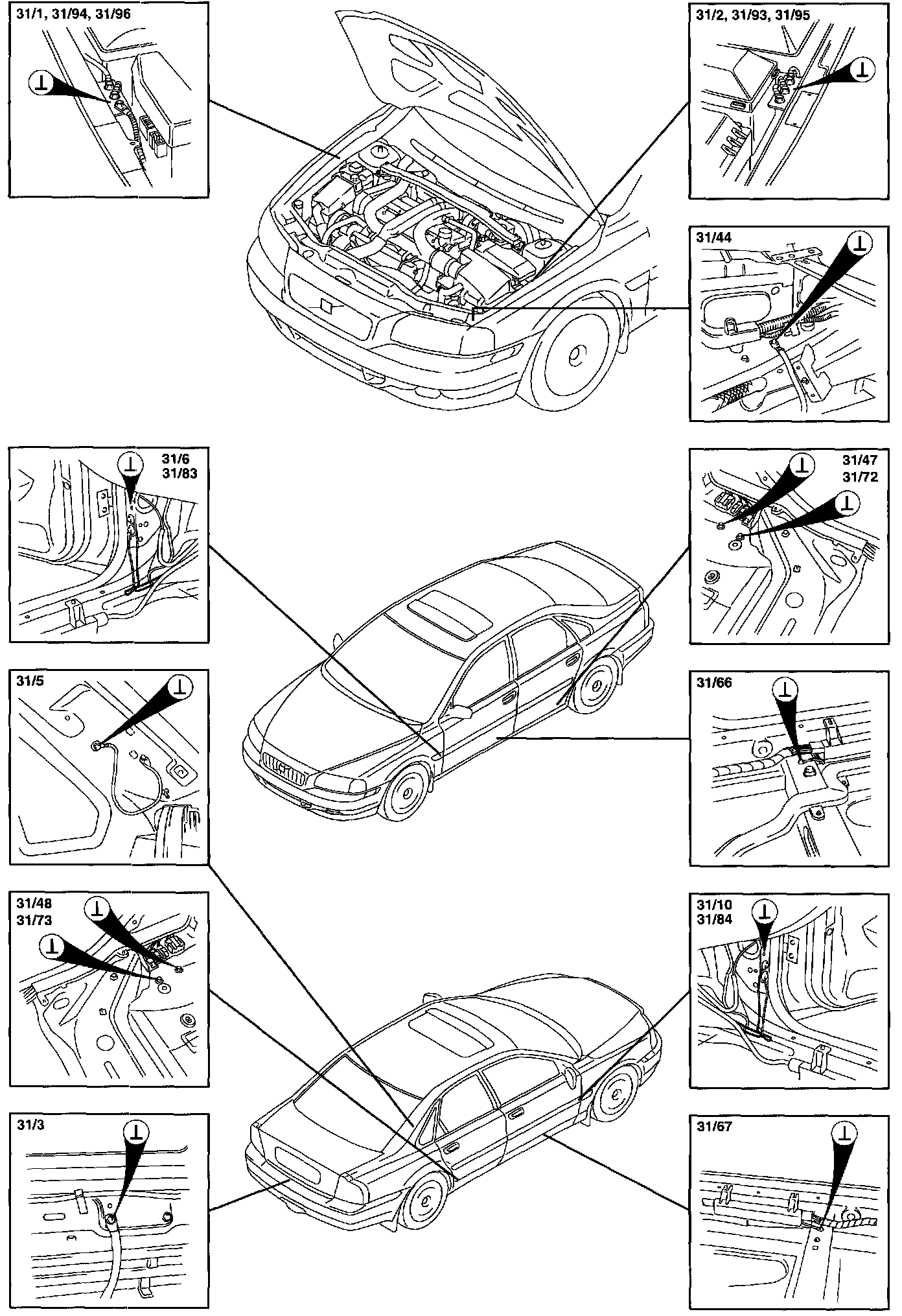

Ground Locations

31/1
Washer fluid level sensor
Washer motor
Right side turn signal lamp

31/2
Engine cooling fan (FC) control module

31/3
Battery

31/4
Ground terminal left side member engine compartment

31/5
Rear demist

31/6
Overload relay 15-supply
Overload relay X-supply
Hazard warning signal flasher switch
Ignition switch light
Courtesy lighting left-hand side front
Central electronic module (GEM) (LHD)
Blower fan control module (RHD)
Glove compartment lighting (RHD)
Sun roof control module
Lever module switch
automatic gearbox (GSM)

31/10
Cigarette lighter/ 12V socket front
Cigarette lighter/ 12V socket rear
Courtesy lighting right-hand side front
Central electronic module (CEM) (RHD)
Blower fan control module (LHD)
Glove compartment lighting (LHD)
Ashtray lighting front
Airbag contact breaker connector passenger side (control panel lighting)

31/44
Ground terminal engine

31/47
Fuel pump

31/48
Carphone receiver
Engine power antenna

31/66
Electrical module left front door (DDM/PDM)
Open-door warning lamp left front
Lock unit left rear door
Courtesy lighting left-hand side rear
Open-door warning lamp left rear
Power window switch left rear door
Heated seat left
Control unit power passenger seat (RHD)
Control module power driver's seat (PSM) (LHD)

31/67
Electrical switch module right front door (PDM/DDM)
Door open warning lamp right front
Lock unit right rear door
Courtesy lighting right-hand side rear
Door open warning lamp right rear
Power window switch right rear door
Heated seat right
Control unit power passenger seat (LHD)
Control module power driver's seat (PSM) (RHD)

31/72
Cargo compartment lighting left-hand side
Head restraint solenoid left rear
Left tail lamp
Rear electronic module (REM)
Lock unit boot
License plate lighting
Boot lid handle switch
Car tilt sensor
CD changer
RTI Control module
CD-ROM player RTI
Seeker alarm
Seeker relay

31/73
Cargo compartment lighting right-hand side
Head restraint solenoid right rear
Right tail lamp
Connector
Cargo compartment cable harness - tow hitch

31/83
Combined instrument panel (DIM)
Antenna ring
High-mounted brake lamp
Reading lamp rear
Upper electronic module (UEM)
Electrical switch module courtesy light
Vanity mirror lighting left-hand side
Vanity mirror lighting right-hand side
Microwave sensor alarm
Sun roof control module

31/84
Electrical switch module lights
Electrical switch module steering wheel levers
Electrical switch module climate control (CCM)
Data link connector (DLC)
Radio (AUM)
Amplifier
Control unit and earphone keypad
Display RTI
Control module for steering angle sensor

31/88
Spark plug with ignition coil 1
Spark plug with ignition coil 2

31/89
Spark plug with ignition coil 3
Spark plug with ignition coil 4
Spark plug with ignition coil 5
Spark plug with ignition coil 6

31/91
Electronic throttle module (ETM)
PTC resistor air preheating (Petrol)

31/93
Left headlamp
Right headlamp
Left front fog lamp
Right front fog lamp
Left front turn signal lamp
Right front turn signal lamp
Side marker lamp left front
Side marker lamp right front
Horn 1
Horn 2
Intermittent windscreen wiper relay
Washer motor relay
Capacitor
Brake fluid level sensor
Stepper motor speed related power steering
Accelerator pedal (AP) position sensor
Coolant level sensor
Windscreen wiper motor
Left headlamp washer motor
Right headlamp washer motor
Left actuator motor headlamp range adjustment
Right actuator motor headlamp range adjustment
Central electronic module (CEM)
Alarm switch bonnet
Left side turn signal lamp
Additional heater
Additional heater control module

31/94
Alarm siren

31/95
ABS control module

31/96
Engine control module (ECM)
Gearbox control module (TCM)
Solenoids automatic gearbox
Gear shift position switches
Reversing lamps switch
PTC resistor air preheating (DIESEL)
