Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2000
>>
S80 T6 L6-2.8L Turbo VIN 90 B6284T
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Refrigerator
Refrigerator

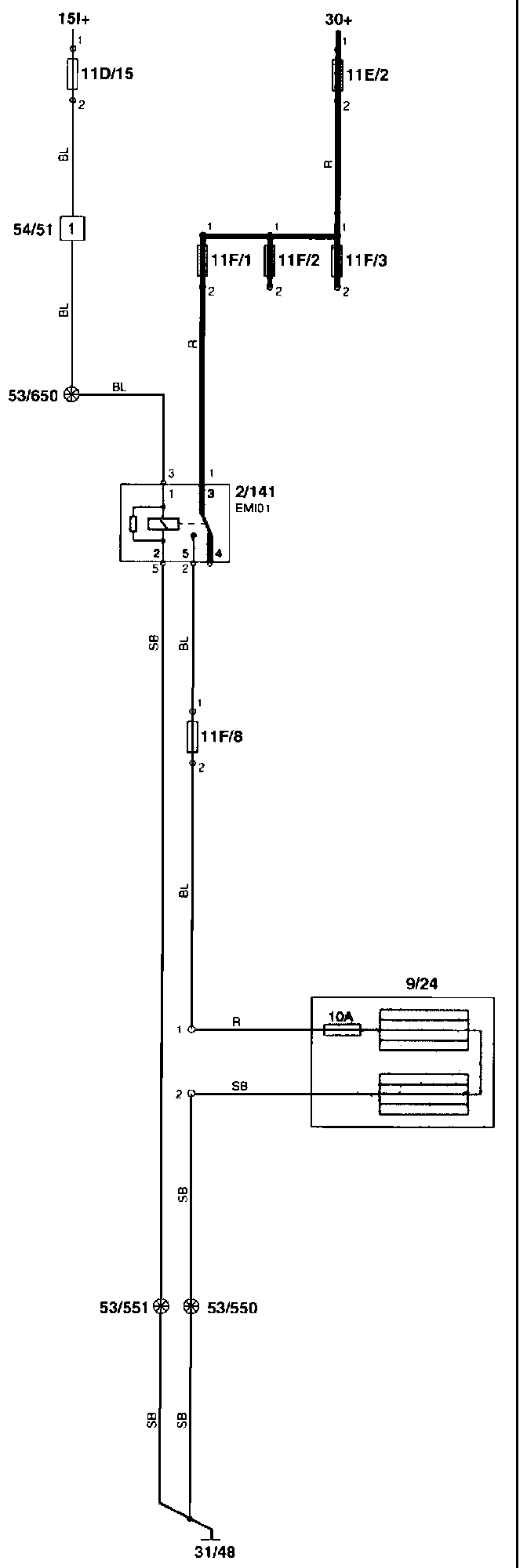

Rear Seat Cooling Box:
Diagram Legend,
Diagram Legend
