A/T Gear Selector - TCM DTC 0094 Stored In Memory
S801999-2000
Section
4
Group
43
No.
0032
Year
01
Month
10
Reference:
This Service Bulletin replaces SB 43-32 dated July 2001, which should be discarded.
Purpose:
Early chassis range corrected.
Vehicles involved:
Automatic gearbox
Gear selector assembly, DTC TCM 0094
Background:
This method describes how to move the cable harness that carries the cables for the gear selector module when diagnostic trouble code (DTC) TCM 0094 is stored.
Affected vehicles
Materials
Special tools
Gear selector assembly, DTC TCM 0094

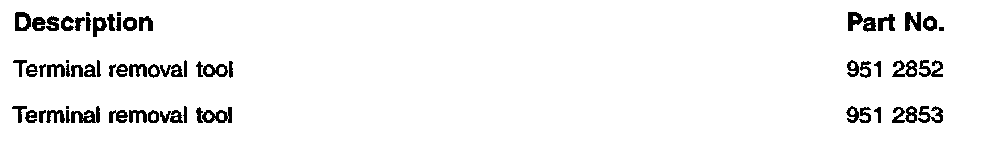

Special tools: 951 2852, 951 2853
Chassis numbers-029667
Preparations 1
Remove the centre console as per VADIS.
Circuit board / top panel, replacing 2
Remove the circuit board / or top panel as per VADIS.
Lift the right-hand side of the rear seat. 3
Remove the right rear door sill trim panel.

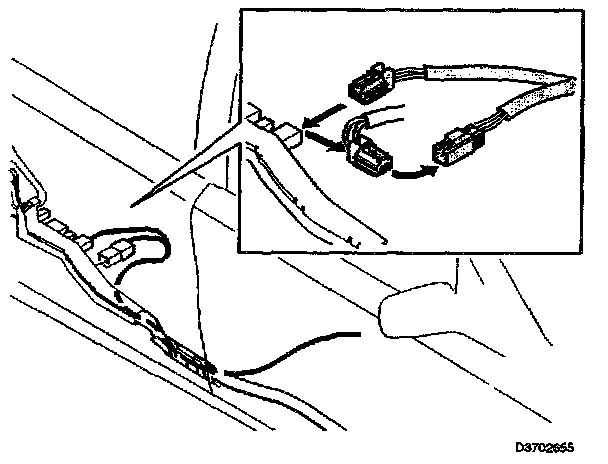

Push the carpet to aside to expose two connectors.
Disconnect the front connector.
Connect the one end of the jumper harness between the disconnected front connectors. The other end of the jumper harness will get connected at the gear shifter.
Install the wire in the wire duct.
Then pull the wire along the existing wire harness to the front edge of the front seat support.
Loosen the rear screws for the right hand seat a few turns. 4
Remove the front screws for the right-hand seat. Secure the wire in the wire duct using a tie strap. Position the wire along the seat support, under the air ducts to the centre console.
5
Route the cable (1) under the cable duct (2). Continue under the gear selector lever link rod (3) around the gear selector assembly to the left-hand side of the gear selector assembly.
6

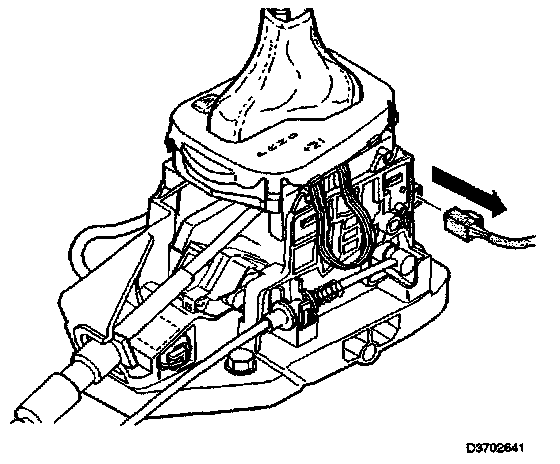

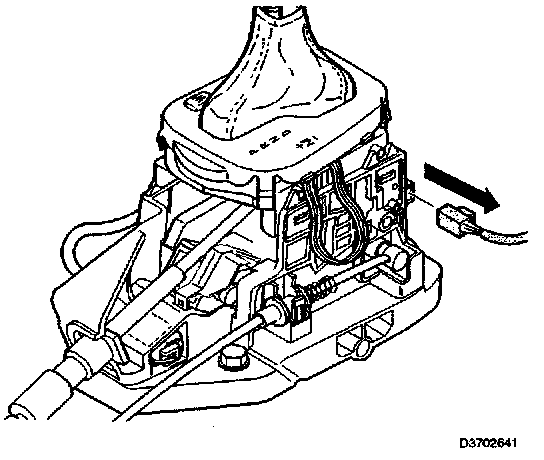

Disconnect the connector at the back of the gear selector assembly.
7

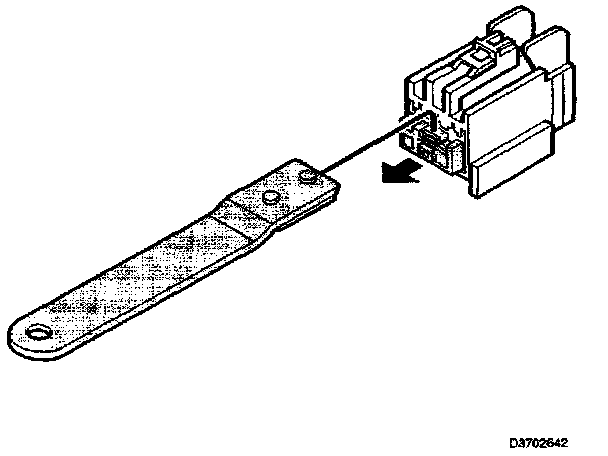

Remove the secondary lock. Use special tool 951 2853.
8

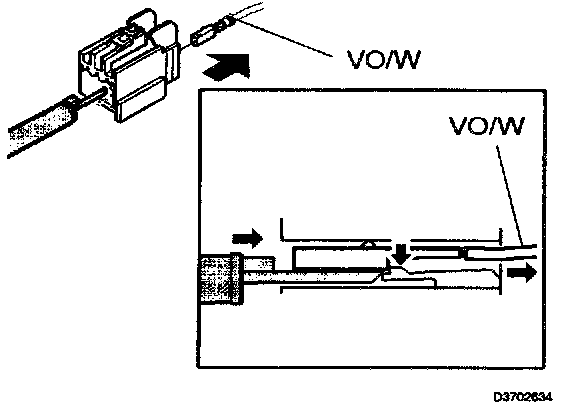

Remove the violet/white (VO/W) wire from the connector. Use special tool 951 2852.
Installing
New wire, installing 9
Install the:
9

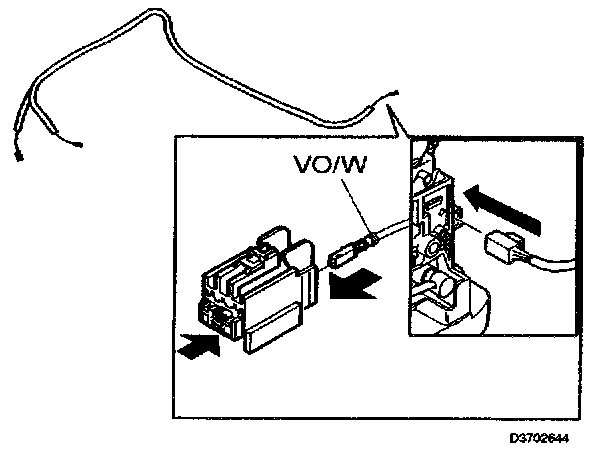

- violet/white VO/W wire from the jumper harness in the connector behind the gear selector
- secondary lock.
Reconnect the connector.
10
Install the:
- centre console as per VADIS
- carpet
- seat, tightening the screws
- sill trim panel
- rear seat
Chassis numbers 029668-147859
11
Preparations
Remove the:
- centre console as per VADIS
- driver's side soundproofing panel.
12
Circuit/top panel, replacing (only chassis numbers 064001-100000) Replace the circuit board / or top panel as per VADIS.
13

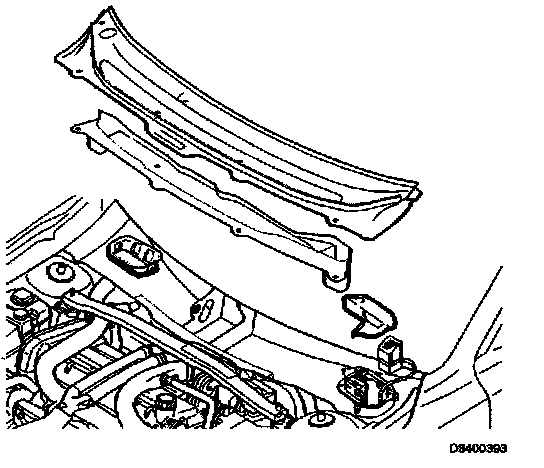

Remove the windscreen wiper mechanism as per VADIS.
14
Remove the Centra electronic module (CEM) as per VADIS.
15

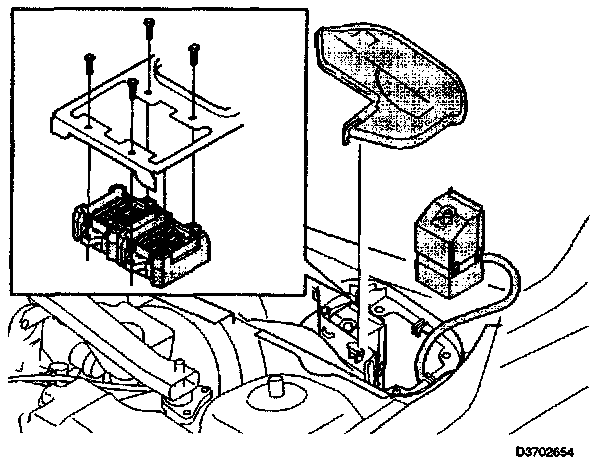

Remove the cover for the connectors in the engine compartment passenger compartment.
Disconnect the connectors by screwing the connectors upwards so that the threads release. Then remove the connectors.
Remove the four screws.
16

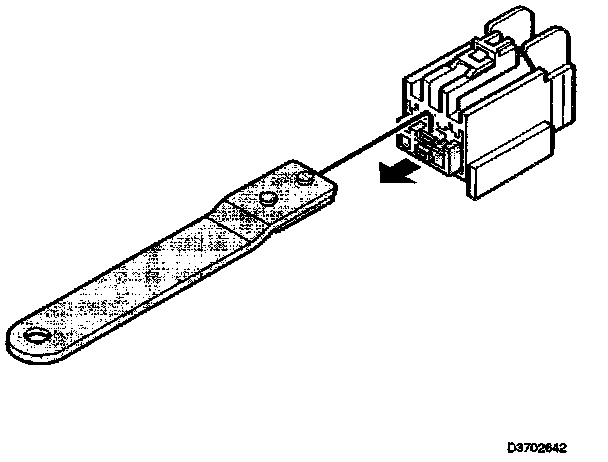

Remove the secondary lock from the connector 54/3LC Pull alternately using the special tool 951 2853 in the direction of the arrows.
17

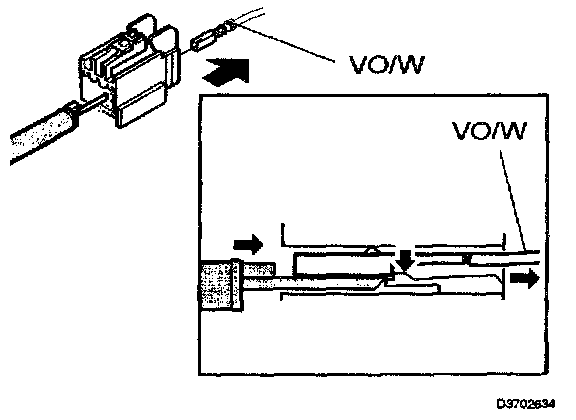

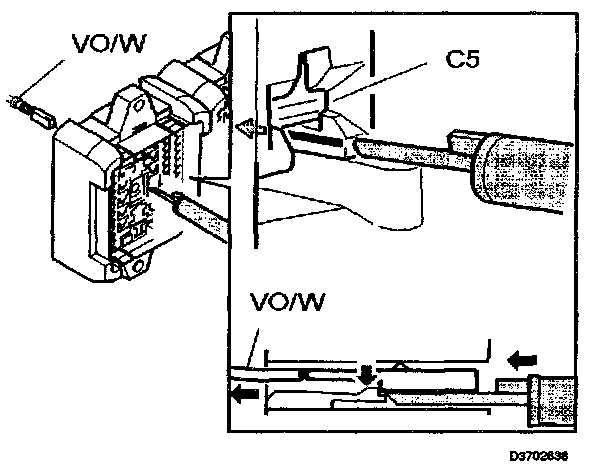

Remove the violet/white (VO/W) wire in terminal C5 from the connector. use special tool 951 2852.
Bend the terminal pin back. Tape the pin in the wire.
18
Remove the four relays (1) from the central electronic module (CEM).
19

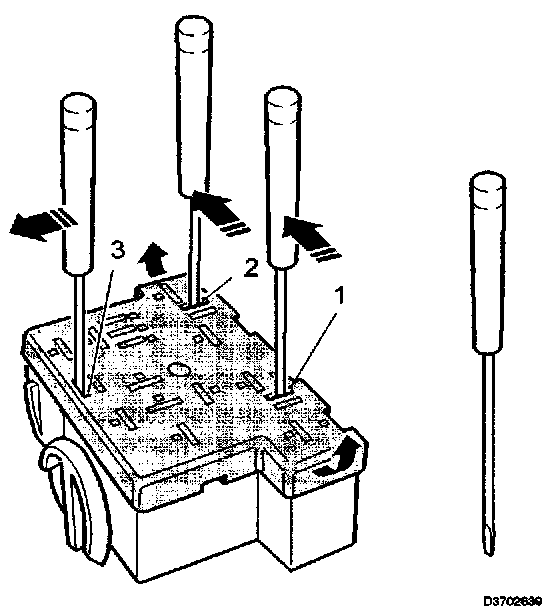

Remove the cover. Carefully pry the cover using a screwdriver following the number order as illustrated. At the same time lift the cover.
Note!
The illustrations of the central electronic module (CEM) in the operation only show the section of the central electronic module (CEM) where the relays are positioned.
20
Remove the violet/white (VO/W) wire from the central electronic module (CEM) (MI 21 P0S 1), as illustrated. Bend the lock to one side using a small screwdriver. Pull out the terminal pin.
Bend the terminal pin back. Tape the pin in the wire.
21
Disconnect the connector at the back of the gear selector assembly.
22
Remove the secondary lock.
23
Remove the violet/White (VO/W) wire from the connector. Use special tool 951 2852.
Installing
24
New wire, Installing
Install the:
- new violet/white (VO/W) wire from the jumper harness in the connector behind the gear selector
- secondary lock.
Reconnect the connector.
25

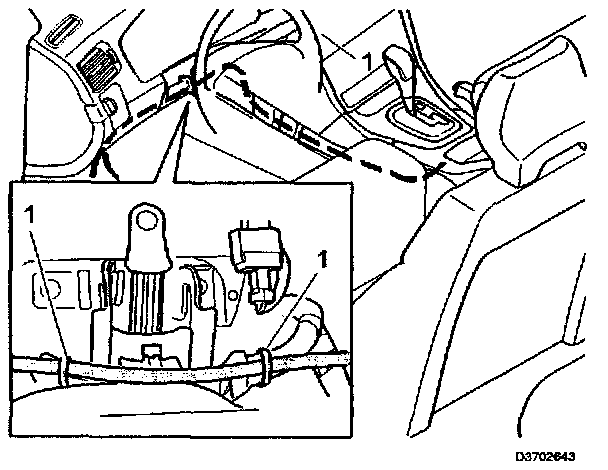

Position the wire under the edge of the carpet continue along in front of the floor air vent. Then continue up to the wire harness under the dashboard. Secure the wire using the tie strap.
Position the wire under the existing wire duct past the steering column. Secure the wire using a tie strap (1) on both sides of the steering column.
26
Install the:
- new violet/white (VO/W) wire in terminal C5 in the connector
- secondary lock.
27
Install the:
- new violet/white (VO/W) wire in the central electronic module (CEM)
- cover.
28
Install the:
- connectors from the passenger compartment on the bracket. Tighten the four screws
- connectors from the engine compartment on the connectors from the passenger compartment. Tighten the screws
- cover.
29
Install the Central electronic module (CEM) as per VADIS.
30
Install the windscreen wiper mechanism as per VADIS.
31
Install the:
- driver's side soundproofing panel
- centre console as per VADIS.

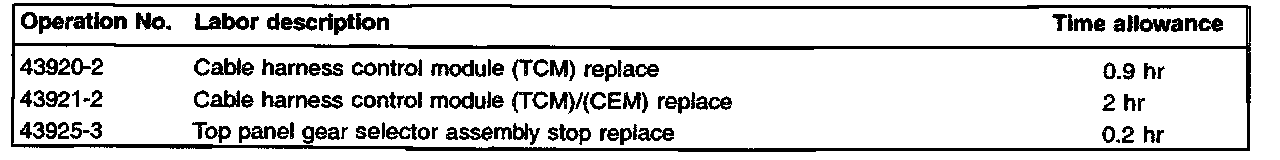

WARRANTY STATEMENT: Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
