Turbocharger - Oil Delivery Pipe Replacement
Section2
Group
25
No.
0025
Year
01
Month
03
Vehicles involved
B6284T
Oil delivery pipe, replacement
Background
The oil delivery pipe for the turbocharger (TC) may be partially blocked with thick oil as a result of overheating. On 6 cylinder engines, the oil delivery pipes for both the turbochargers (TC) and the coolant pipe for the front turbocharger (TC) must be replaced when replacing either of the turbochargers (TC).
Affected Vehicles
Model Factory Chassis No.
S80 B6284T 1 -40498

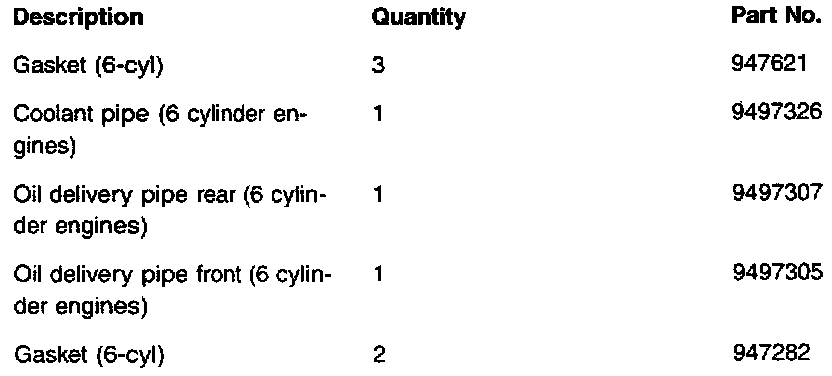

Materials

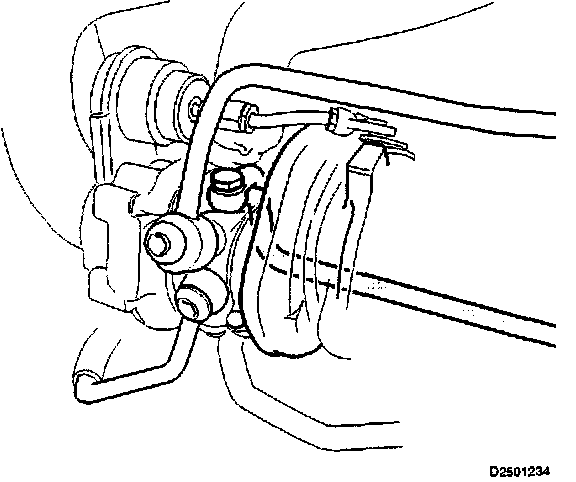

Replacing the front turbocharger (TC) 1
When replacing the front turbocharger (TC) the coolant pipe (1) and the oil delivery pipe (2) must be replaced. The oil delivery pipe for the rear turbocharger (TC) must also be replaced (see the next step).
Replacing the rear turbocharger (TC) 2
When replacing the rear turbocharger (TC), the oil delivery pipes for both turbochargers (TC) must be replaced. The coolant pipe for the front turbocharger (TC) must also be replaced.

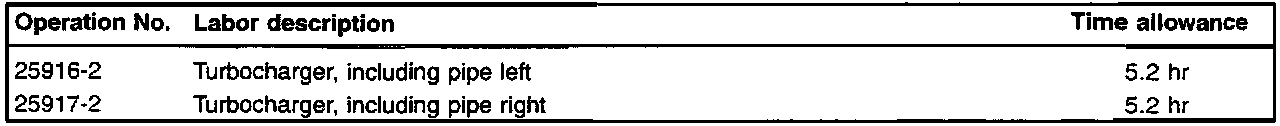

WARRANTY STATEMENT: Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
