Location Of Components

Location of components

Control module for remote controlled central locking 4/10:
On the center console under the radio.

Central locking switch 3/25:

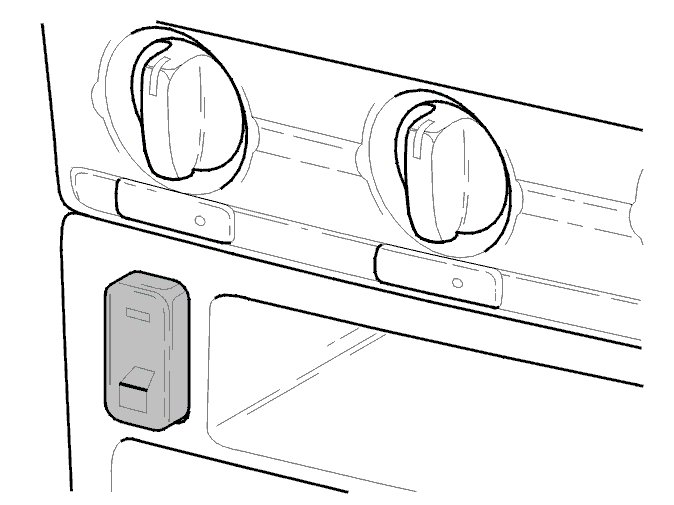

Location Of Components, Central Locking Switch 3/25:

On the center console of the dashboard.

Childlock switch:

Location Of Components, Childlock Switch:

On the center console of the dashboard.

Control switch 3/26:

Location Of Components, Control Switch 3/26:

In the driver's door by the lock cylinder.

Central locking unit doors 6/28, 6/29, 6/30, 6/31:

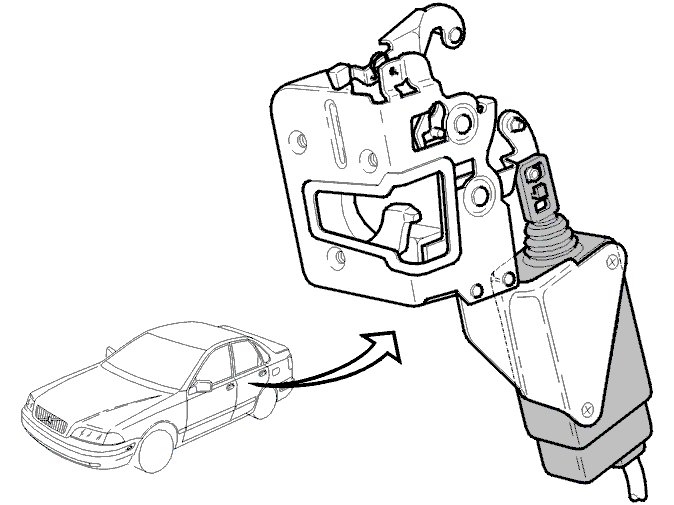

Location Of Components, Central Locking Unit Doors 6/28, 6/29, 6/30, 6/31:

In the front and rear doors.

Central locking tailgate 6/32:

Location Of Components, Central Locking Tailgate 6/32:

In the trunk lid, 4-door

Receiver for the remote control:
In the dashboard panel above the combined instrument panel.

Siren 8/18:
Located in the right fender liner.

Ultrasonic sensor- or glass breakage sensor control module 4/22:

Location Of Components, Ultrasonic Sensor or Glass Breakage Sensor Control Module 4/22:

Located under the blower fan.

Ultrasonic sensor transmitter:

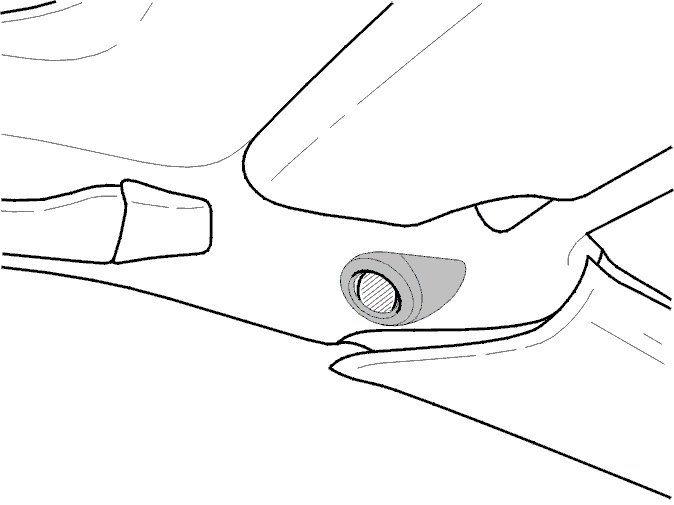

Location Of Components, Ultrasonic Sensor Transmitter:

Located on the left and right A-posts.

Hood switch 3/50:

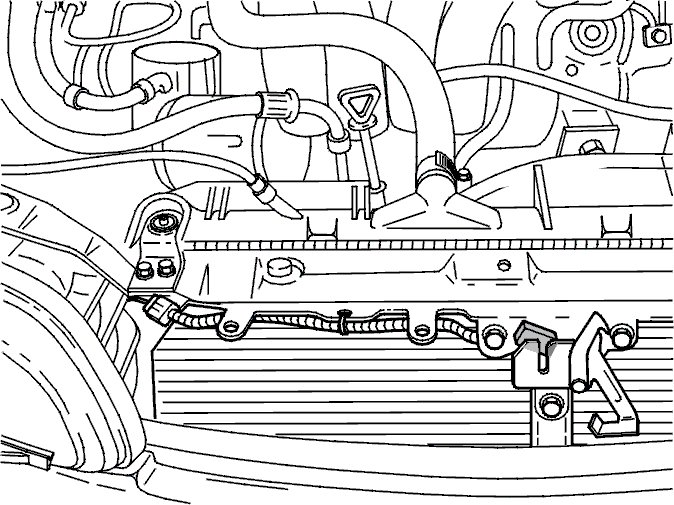

Location Of Components, Hood Switch 3/50:

Integrated into the hood catch.

Glass breakage sensor microphone:

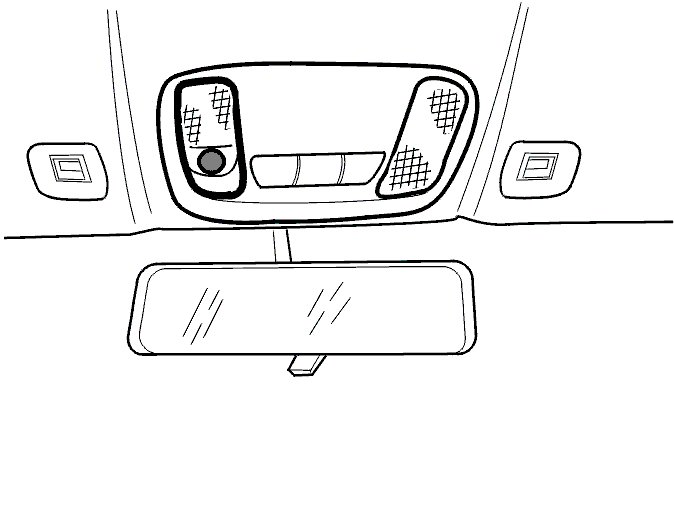

Location Of Components, Glass Breakage Sensor Microphone:

Inset in the courtesy lighting panel

Tilt sensor:
In the center console under the radio.
